Corrosion Resistance High Toughness 6061 T6 Aluminum Strip Coil
Corrosion Resistance High Toughness 6061 T6 Aluminum Strip Coil
Corrosion Resistance High Toughness 6061 T6 Aluminum Strip Coil
Corrosion Resistance High Toughness 6061 T6 Aluminum Strip Coil
Specifications
Brand Name :
Dongchong
Model Number :
6061
Certification :
MSDS,MTC,REACH,ROHS.FDA,SGS,ect
Place of Origin :
Chongqing,Dongchong
MOQ :
500-5000KG for different product
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000tons per month
Delivery Time :
5-20 Days
Packaging Details :
Wooden pallet , Wooden Box
Alloy :
6061
Temper :
T6,T651
Color :
Gold, silver, rose gold, champagne or customized
Protection :
Film on one side or both side , paper interleave
Usage :
Industrial Components
Sample :
Free
Size :
Customization
Description

6061 T6 6mm-2500mm Aluminium Coil Strip For Industrial Components

Product Description

6061 aluminium alloy is a high quality aluminum alloy produced by heat treatment and pre drawing process Magnesium 6061 Aluminium Alloy has excellent processability, good corrosion resistance, high toughness and processing after no deformation, easy coloring film, excellent oxidation effect and other excellent characteristics. It is widely used in various industrial structures which require certain strength and high corrosion resistance, such as manufacturing trucks, tower buildings, ships, trams and railway vehicles. Typical uses include aerospace fixtures, electrical fixtures, communications, it is also widely used in automatic machine parts, precision machining, mold manufacturing, electronic and precision instruments, SMT, PC board soldering tin carrier and so on.

According to different treatment methods, aluminum alloy coil can be divided into Mirror surface aluminum plate, Brushed aluminum plate, Anodized aluminum plate, PE coated aluminum plate, PVDF coated aluminum plate etc.

Aluminium Material Grade
1) 1000series aluminium /Pure Aluminum/Pure Aluminium:1050,1060,1070,1080,1100,1350,etc
2) 2000series aluminium alloy/Hard Aluminum/Hard Aluminium/Aluminum-Copper Alloy/ Aluminium-Copper Alloy:2011,2014,2017,2024,etc
3) 3000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium/ Aluminum-Manganese Alloy:3002,3003,3104,3204,3030,etc
4) 5000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium /Aluminum-Magnesium Alloy:5005,5025,5052,5040,5054,5056,5083,5152,etc
5) 6000series aluminium alloy / Aluminum-Magnesium-Silicon Alloy /Aluminium-Magnesium-Silicon Alloy /:6101,6003,6061,6063,6020,6201,6262,6082,etc
6) 7000series aluminium alloy/ Aluminum-Zinc Alloy/ Aluminium-Zinc Alloy:7003,7005,7050,7075,etc
7) 8000series aluminium alloy:8011,etc

Chemical Composition

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 __ __ 0.25 __ __ 0.05 0.15 rest
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 __ __ 0.25 0.1 __ 0.05 0.15 rest
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 __ 0.4 0.1 __ 0.05 0.15 rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 __ 0.1 __ __ 0.05 0.15 rest
5A06 ≤0.40 0.000～0.400 ≤0.10　 0.50～0.8　 5.8～6.8　 __ 0.0001～0.005　 ≤0.20 0.02～0.10　 __ 0.05 0.1 rest
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 __ 0.25 __ __ 0.05 0.15 rest
5050 0.4 0.7 0.2 0.1 1.1-1.8 0.1 __ 0.25 __ __ 0.05 0.15 rest
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 0.25 0.2 0.05 0.15 rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 __ 0.2 0.15 __ 0.05 0.15 rest
5454 0.25 0.4 0.1 0.5-1.0 2.4-3.0 0.05-0.2 0.25 0.2 0.05 0.15 rest
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1 0.05 0.15 rest
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 _ 0.25 0.15 __ 0.05 0.15 rest
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 0.05 0.15 rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 0.05 0.15 0.1 0.05 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 __ 0.25 0.15 __ 0.05 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 __ 0.1 0.1 __ 0.05 0.15 rest

Mechanical properties:

ultimate tensile Strength : over 205 MPA

tensile Yield Strength:55.2 MPA

elastic coefficient : 68.9 GPa

bending ultimate Strength : 228 MPa

Bending Yield Strength : 103 MPA

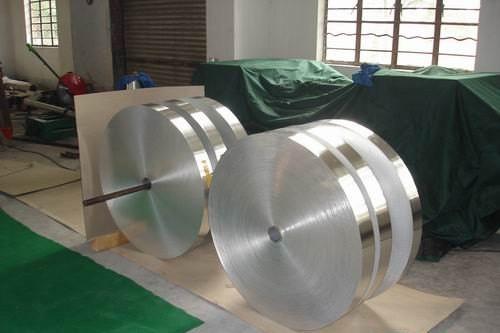

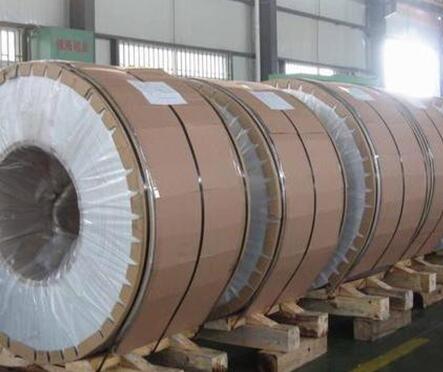

Product Photo

Corrosion Resistance High Toughness 6061 T6 Aluminum Strip Coil

Corrosion Resistance High Toughness 6061 T6 Aluminum Strip Coil

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.

Corrosion Resistance High Toughness 6061 T6 Aluminum Strip Coil

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine Uncoil(MM) Finished size(MM) Slitting Width(MM)
ID OD Width Thickness ID OD Above 0.5mm≥ 20mm
Φ 400 ≤ 1800 ≤ 1600 0.5-4.5 Φ 400 ≤ 1700(normal)
Φ 500 Φ500(normal)
Φ 600
Aluminum foil Slitting machine Uncoil(mm) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 76 ≤ 550 ≤ 1200 0.08-0.12 Φ76Φ76 ≤ 550(normal)
1450mm Crosscutting machine Uncoil(MM) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 505 ≤ 1780 ≤ 600 0.1-1.5

Φ150
Φ300
Φ400

Φ500

 ≤ 1700(normal) 6-600
Φ 605
Annealling Furnace Furnace Temperature Furnace Size
≤440°C 3200*2000*2100
Saw Cutting Thickness(mm) Width (mm) Length (mm)
Size Size Tolerance Size
≤200 ≤2000 ±0.3 ≤3000
Embossing Machine Type Thickness(MM) Width(MM) Embossing height(MM) Tolerance(MM) Type Thickness(MM)
Single side ball 0.3-1.0 ≤700 ≤3 ±0.1 two-side ball 0.3-1.0
