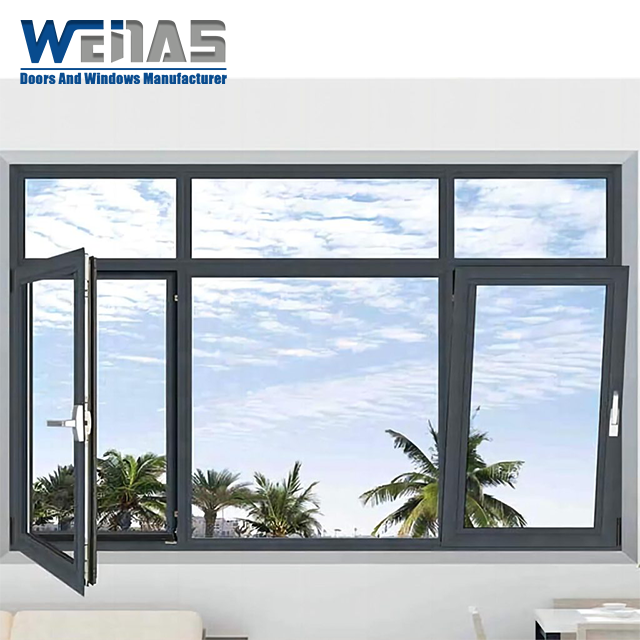

Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable
Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable
Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable
Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable
Specifications
Brand Name :
WEINAS
Model Number :
OPATINIL 90
Certification :
AS2047
Place of Origin :
Foshan, China
MOQ :
2 Square Meters
Price :
USD100-130 Per Square Meters
Payment Terms :
T/T
Supply Ability :
2600 Square Meters Per Month
Delivery Time :
25-35 Days
Packaging Details :
Foam, Poly Bag, Wooden Case
Name :
Aluminum Casement Windows
Product Name :
Typhoon protection Thermal Insulation Stable Aluminum Casement Windows
Brand :
WEINAS
Model :
OPATINIL 90
Material :
Aluminum Alloy, Tempered Glass
Profile Thickness :
1.8mm
Glass :
Double Glass 5mm+20A/25A+5mm Triple Glass 5mm+12A+5mm+12A+5mm
Glass Leaf Visible Width :
88mm
Screen Leaf Visible Width :
88mm
Wall Occupied :
90mm
Color :
Matt Black, Glossy Grey, Matt Brown
Open Mode :
Casement, Till and Turn
Advantages :
Multiple Openings, Anti-mosquito
Description

Typhoon protection Thermal Insulation Stable Aluminum Casement Windows

Product Description:

Windows designed for typhoon protection and thermal insulation are a specialized product category that combines high-impact resistance with energy efficiency. These are particularly popular in coastal regions or areas prone to severe storms.

Sepcifications

Product Name: Thermal Insulated Soundproof Double Glazed Aluminium Casement windows
Brand: WEINAS
Model: OPATINIL 90
Material: Aluminum Alloy, Tempered Glass
Profile Thickness: 1.8mm
Glass:

Double Glass 5mm+20A/25A+5mm

Triple Glass 5mm+12A+5mm+12A+5mm

Glass Leaf Visible Width:

88mm

Screen Leaf Visible Width:

 88mm
Wall Occupied: 90mm
Color: Matt Black, Glossy Grey, Matt Brown
Open Mode: Casement, Till and Turn
Advantages: Multiple Openings, Anti-mosquito

Opening Methods:

  1. High-Grade Aluminum Alloy: Uses alloys that have a higher tensile strength than standard window aluminum, making the frame incredibly rigid and resistant to bending or deformation under pressure.

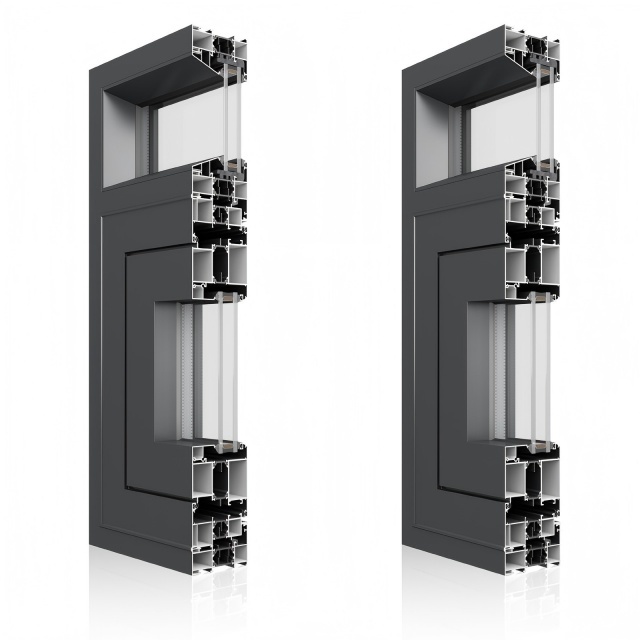

  2. Reinforced Frame Design: The frames and sashes are designed with deeper, thicker chambers. A larger frame profile provides more material to resist twisting and buckling.
  3. Multi-Point Locking Systems: This is crucial. Instead of a single latch, a robust mechanism engages locking points on all four sides of the window (top, bottom, and sides), clamping the sash securely into the frame. This creates a unified, strong structure that prevents the window from being forced open by wind pressure.
  4. Laminated Glass: The best option for typhoon protection. It consists of two panes of glass with a tough PVB (Polyvinyl Butyral) interlayer. Even if the glass cracks from impact, the shards stick to the plastic layer, preventing the window from breaching and keeping water and wind out.
  5. Tempered Glass: Often used as the outer pane in an Insulated Glass Unit (IGU) for added strength. It is much stronger than annealed glass and, if it breaks, shatters into small, less hazardous pieces.
  6. Engineered Hardware: Heavy-duty, corrosion-resistant hinges and locks made from stainless steel are designed to withstand the violent forces of a typhoon without failing.

Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable

Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable

Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable

Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable

Typhoon Protection Black Aluminium Casement Windows Thermal Insulation Stable
