Thermal Break Well Sealed Aluminium Casement Window With Mosquito Net
Product Description:
Thermal break aluminium casement window is a modern, high-performance window that combines the sleek aesthetics and durability of aluminium with enhanced energy efficiency. A casement window is a type of window that is hinged at the side and opens outward, often with a crank mechanism. Here are the key features of a thermal break aluminium casement window:

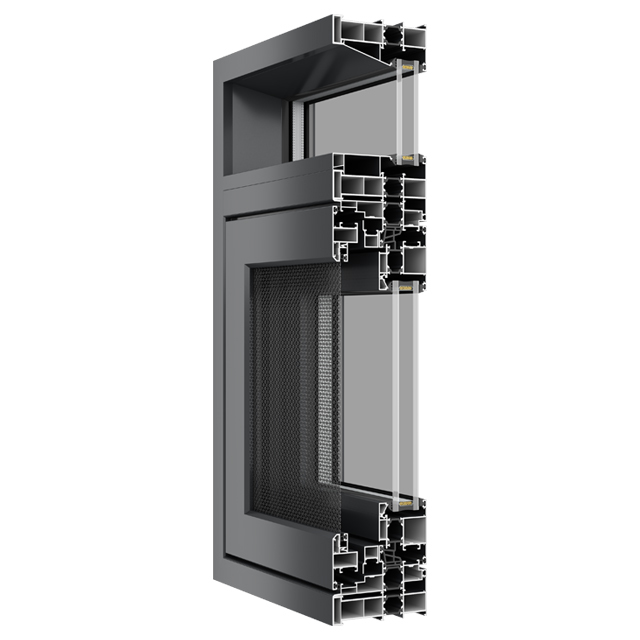

- Thermal break structure: This is the most critical feature. A thermal break is an insulating material, typically a non-metallic polymer like polyamide, that is placed between the interior and exterior sections of the aluminum frame. Aluminum is a highly conductive material, meaning it easily transfers heat and cold. Without a thermal break, the frame would act as a "thermal bridge," allowing heat to escape in the winter and enter in the summer.
- High-Performance Glass: The thermal break in the frame is complemented by high-performance glass to provide a complete thermal solution.
- Aluminum is a naturally strong and durable material. Aluminum frames can support large, heavy panes of glass without warping, flexing, or losing their shape over time. The frames are often powder-coated or anodized, making them highly resistant to rust, corrosion, and fading, even in harsh weather conditions. Unlike wood, aluminum does not rot, crack, or require regular painting or staining, making it a very low-maintenance option.
- When a casement window is closed, the sash presses firmly against the frame, creating a very tight seal. This makes them highly effective at preventing air and water infiltration, which is a major factor in their excellent thermal and acoustic performance.
Specifications
Product Name: | Thermal Break Well Sealed Aluminium Casement Window With Mosquito Net |
Model: | WEIPIN 120 |
Material: | 6063-T5 Aluminium Alloy, Double Glass |
Profile Thickness: | 2mm |
Glass: | 5mm+25A+5mm Insulation Glass |
Glass Leaf: | Frame Width 72mm, Thickness 58mm |
Screen Leaf: | Frame Width 60mm, Thickness 32mm |
Wall Occupied: | 120mm |
Color: | Matt Grey, Glossy Grey, Matt Black, Matt Brown |
Advantages: | Heat Insulated, Sound Insulated |
Features:
- High-End Homes and Custom Builds.
- Energy-Conscious Renovations.
- Homes in Extreme Climates.
- Areas with High Noise Pollution.
- Difficult-to-Reach Locations
