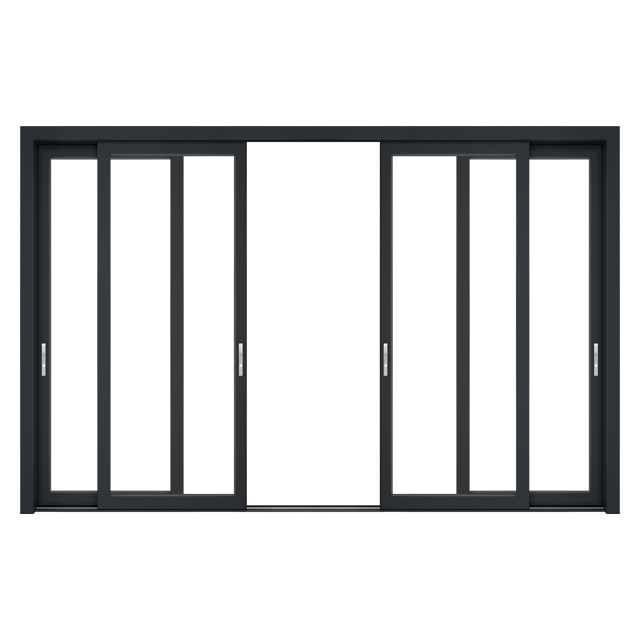

Horizontal 6063-T5 Ultra Slim Aluminium Sliding Doors Thermal Insulated Hurricane Resistant
Horizontal 6063-T5 Ultra Slim Aluminium Sliding Doors Thermal Insulated Hurricane Resistant
Horizontal 6063-T5 Ultra Slim Aluminium Sliding Doors Thermal Insulated Hurricane Resistant
Horizontal 6063-T5 Ultra Slim Aluminium Sliding Doors Thermal Insulated Hurricane Resistant
Specifications
Brand Name :
WEINAS
Model Number :
WEIYII SD
Certification :
AS2047
Place of Origin :
Foshan, China
MOQ :
6 Square Meters
Price :
USD85-100 Per Square Meter
Payment Terms :
T/T
Supply Ability :
2000 Square Meters Per Month
Delivery Time :
25-35 Days
Packaging Details :
Foam, Poly Bag, Wooden Case
Name :
Thermal Insulated Heavy Duty Sliding Door
Material :
Aluminium 6063-T5, Double Tempered Glass
Profile Thickness :
Panel: 3mm, Frame: 2mm
Glass :
5mm+15A+5mm Insulated Tempered Glass
Panel :
Frame Width 70mm, Panel Thickness 42mm
Wall Occupied :
2 Tracks: 105mm, 3 Tracks: 160mm
Color :
Grey, Black, Brown, White
Screen Material :
Stainless Steel 304
Open Mode :
Sliding
Advantages :
Hurricane Resistant, Thermal Insulated
Description

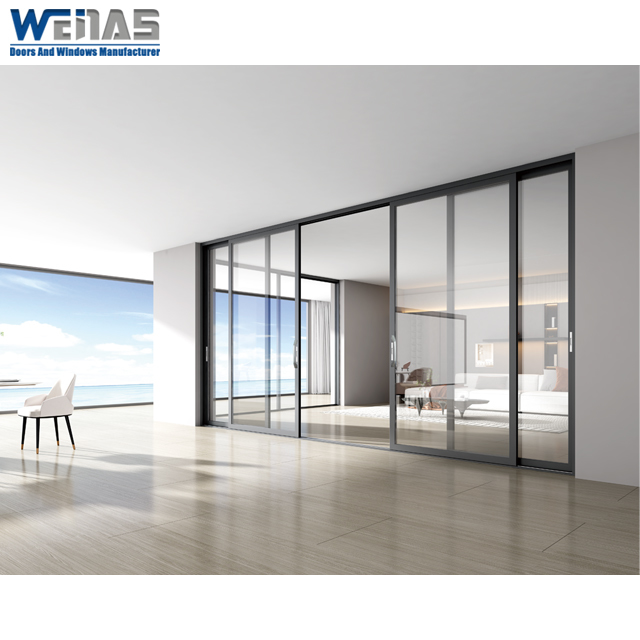

Thermal Insulated Hurricane Resistant Horizontal Aluminium Sliding Door

Product Description:

Thermal insulated heavy duty aluminium sliding doors are designed for both energy efficiency and durability. They are commonly used in residential and commercial settings to create a seamless transition between indoor and outdoor spaces while maintaining a comfortable indoor climate. Here are some of their key features:

  1. Thermal Break Technology: This is a crucial feature, especially in aluminum-framed doors. A thermal break is an insulating barrier placed within the door frame to prevent the transfer of heat or cold from the outside to the inside, and vice-versa. This minimizes heat loss in the winter and heat gain in the summer.

  2. Strong Frame Materials: The frames are often made from thick, reinforced materials like aluminum or vinyl, which are resistant to warping, chipping, and rotting. This ensures the door can handle large, heavy glass panels.
  3. Multi-Point Locking Systems: Instead of a single lock, these doors often feature a multi-point locking system that engages at several critical points along the jamb, providing enhanced security against forced entry.
  4. Slimline Frames: Many modern designs feature slim or narrow frames to maximize the glass area and the view. Customizable Finishes and Colors: Frames are available in various colors and finishes, allowing them to match the architectural style of the building. Some systems even offer a "split finish," with different colors on the interior and exterior.

Specifications

Product Name: Thermal Insulated Hurricane Resistant Horizontal Aluminium Sliding Door
Model: WEIYII SD
Material: Aluminium 6063-T5, Double Tempered Glass
Profile Thickness: Panel: 3mm, Frame: 2mm
Glass: 5mm+15A+5mm Insulated Tempered Glass
Panel: Frame Width 70mm, Panel Thickness 42mm
Wall Occupied: 2 Tracks: 105mm, 3 Tracks: 160mm
Color: Grey, Black, Brown, White
Open Mode: Sliding
Advantages: Hurricane Resistant, Thermal Insulated

Applications:

  1. Patio and Deck Doors.
  2. Sunrooms and Conservatories.
  3. Balcony and Terrace Access.
  4. Large Openings ("Moving Glass Walls").
  5. Interior Room Dividers.
