Specifications
Brand Name :
WEINAS
Model Number :
PSSD
Certification :
AS2047
Place of Origin :
Foshan, China
MOQ :
4 Square Meters
Price :
USD75-95 Per Square Meter
Payment Terms :
T/T
Supply Ability :
2000 Square Meters Per Month
Delivery Time :
25-35 Days
Packaging Details :
2000 Square Meters Per Month
Name :
Interior Aluminium Partition Sliding Door
Material :
Aluminium 6063-T5, Single Glass
Profile Thickness :
Frame: 1.4mm, Panel: 3mm
Glass :
8mm Single Tempered Glass
Panel :
Frame Width: 14mm, Panel Thickness:40mm
Wall Occupied :
52mm(1 Track), 105mm(2 Tracks), 154mm(3 Tracks)
Color :
Black, Grey, White, Ivory, Wood Grain
Open Type :
Sliding
Track Options :
Self-Adhesive Stainless Steel, Brass, Profile Rail
Advantages :
Elegant, Without Lower Rail
Description

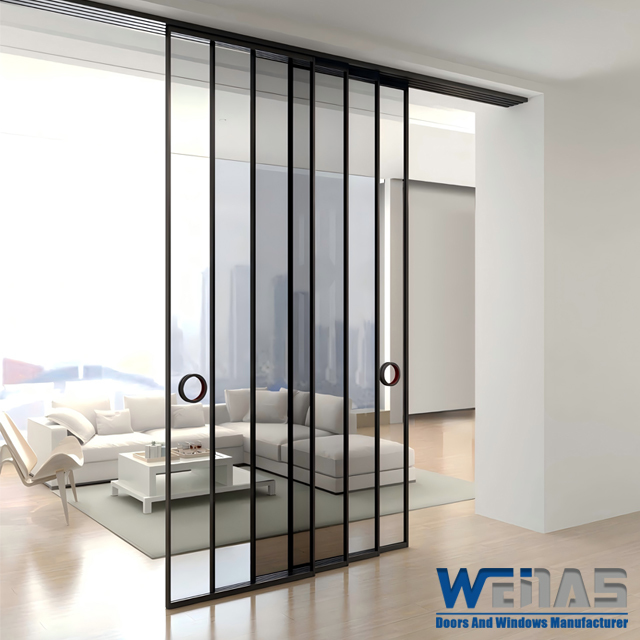

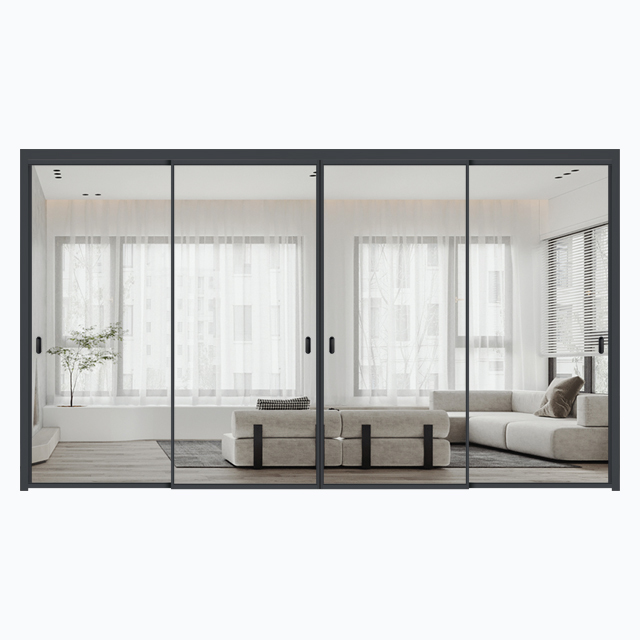

Perfect System Narrow Frame Silent Interior Sliding Partition Door

Product Description:

A narrow frame aluminium sliding door is a type of patio door characterized by its minimal frame width, also known as "slimline" or "minimalist" frames. This design maximizes the visible glass area, creating a sleek, contemporary aesthetic and offering an unobstructed view. Here's a breakdown of the key features and benefits:

  1. Slim Sightlines: The most defining feature is the narrow frame profile, which can be as thin as 18mm at the interlock, allowing for a "wall of glass" effect.
  2. Large Glass Panels: The slim frames are strong enough to support expansive, floor-to-ceiling glass panels, which are often made from high-performance, double-glazed glass for energy efficiency.
  3. Aluminium Construction: The use of aluminum is crucial for this design because of its high strength-to-weight ratio. This allows for the narrow frames to be both durable and able to support large panes of glass without compromising structural integrity.
  4. Space-Saving: Like all sliding doors, they operate on a track, meaning they don't require the swing space that hinged doors do. This makes them an excellent solution for homes with limited space.

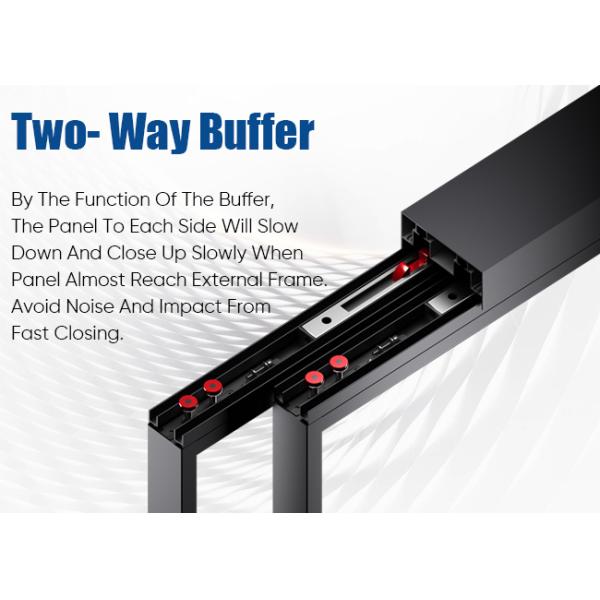

  5. Smooth Operation: They are engineered with precision-engineered systems that ensure the large panels glide effortlessly and silently along the track.

Specifications

Product Name:

Perfect System Narrow Frame Silent Interior Sliding Partition Door
Model: PSSD

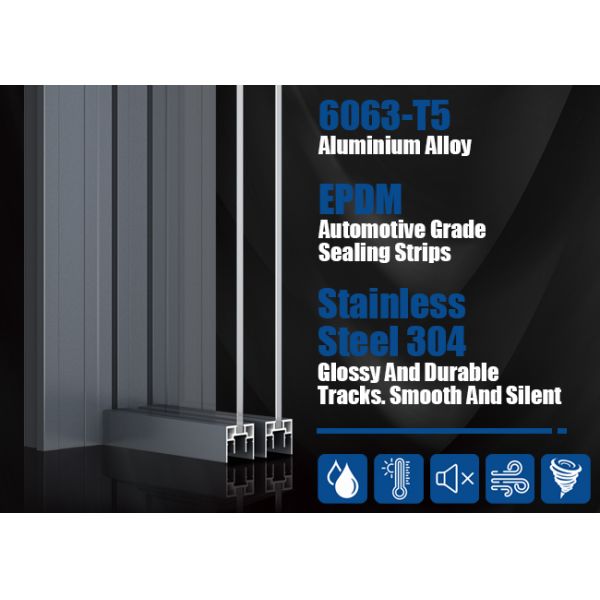

Material: Aluminium 6063-T5, Single Glass

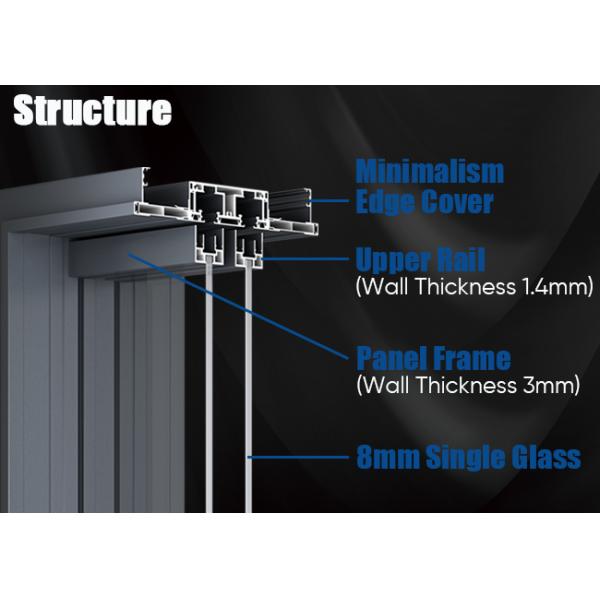

Profile Thickness: Frame: 1.4mm, Panel: 3mm
Glass: 8mm Single Tempered Glass
Panel: Frame Width: 14mm, Panel Thickness:40mm
Wall Occupied: 52mm(1 Track), 105mm(2 Tracks), 154mm(3 Tracks)
Color: Black, Grey, White, Ivory, Wood Grain
Open Mode: Sliding
Advantages: Elegant, Without Lower Rail

Features:

  1. Enhanced Natural Light: The larger glass surface area allows more daylight to flood into your home, reducing the need for artificial lighting and creating a brighter, more welcoming atmosphere.
  2. Energy Efficiency: Despite their appearance, high-quality narrow-frame aluminum doors are highly energy-efficient. They often feature thermal breaks, double-glazing, and tight seals to prevent drafts and heat loss.
  3. Durability and Low Maintenance: Aluminum is highly resistant to corrosion, warping, and swelling. This makes these doors a "fit-and-forget" solution that requires very little upkeep.
