Specifications
MOQ :
1
Price :
3.1/pc
Delivery Time :
5-8 working days
Model Number :
30CM
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
50000 PCS / Month
Packaging Details :
Film & woven bag wrapping, wooden frame reinforcement, export wooden case packaging
Description

This adjustable screw jack base is the foundation of any professional stage truss or lighting stand system. Engineered from Q235 structural steel with a galvanized finish, it provides precise height leveling and rock-solid stability for concert rigs, event setups, and permanent installations.

Q235 Steel Adjustable Screw Jack Leveling Foot with Galvanized X-Reinforced Base Plate for Truss Systems
Complete Kit — Everything Included

Each set comes fully assembled with:

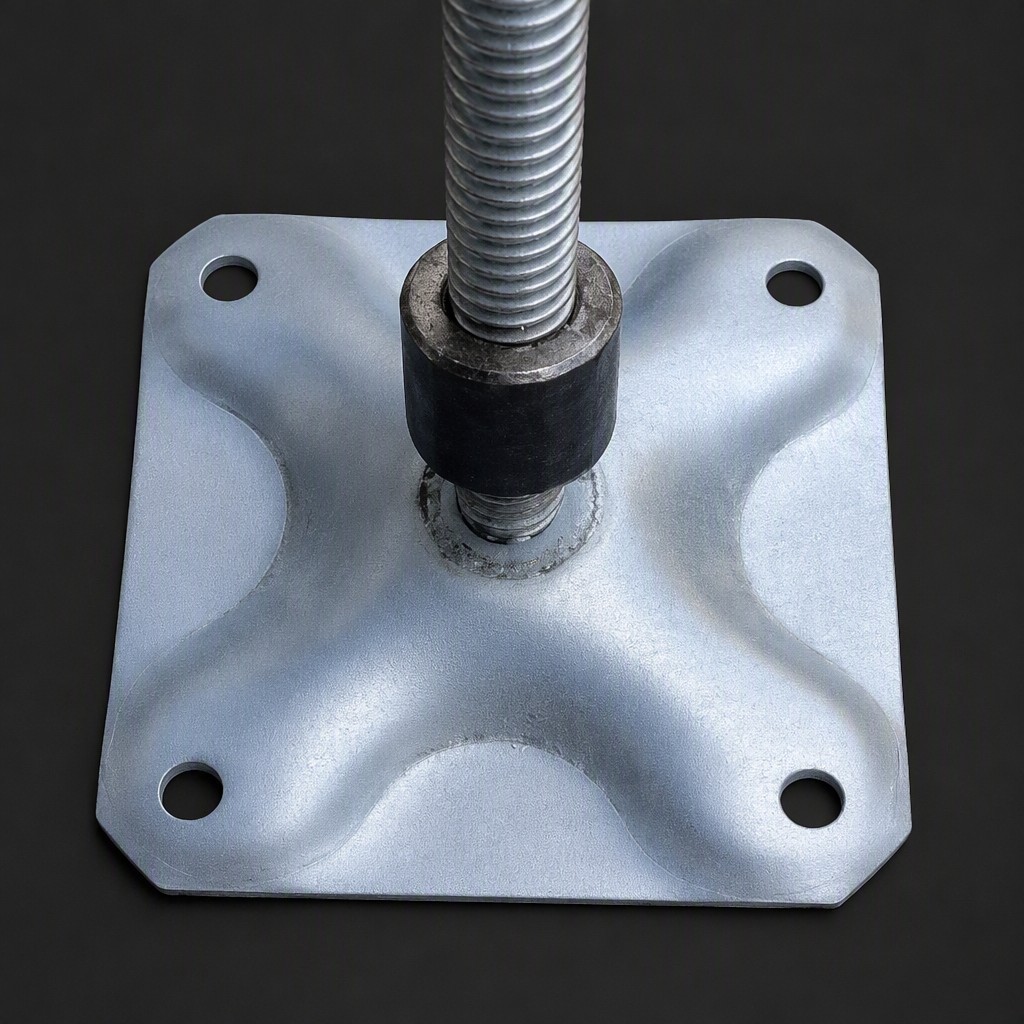

  • X-Reinforced Base Plate — 120*120mm square steel plate with embossed cross-pattern for superior load distribution, 4 corner mounting holes (10mm) for bolt-down installation

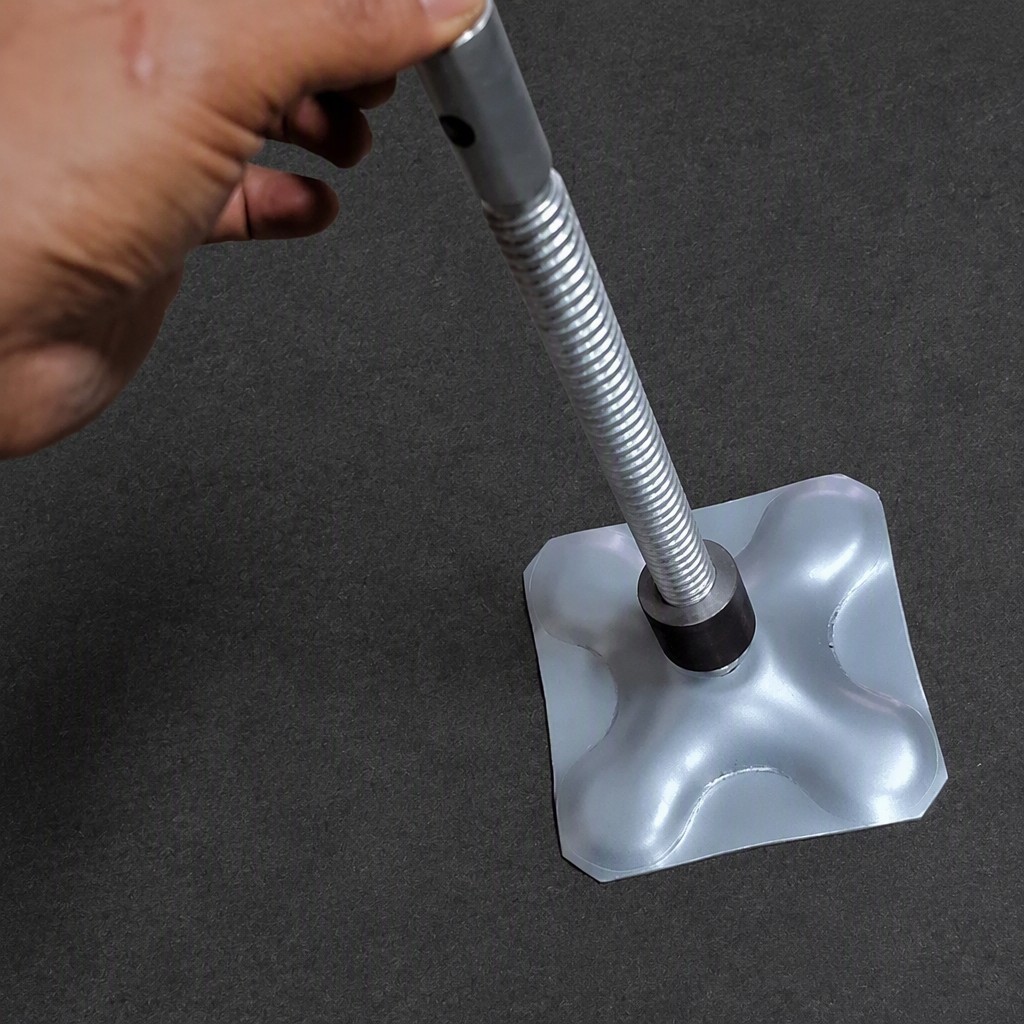

  • M30 Threaded Rod — 250mm solid steel rod with full-length precision machine threading for smooth height adjustment
  • Welded M30 Nut — Factory-welded at base plate center for permanent, reliable connection
  • Forged Steel Collar — Dark gray protective sleeve at rod base prevents thread damage and adds structural support

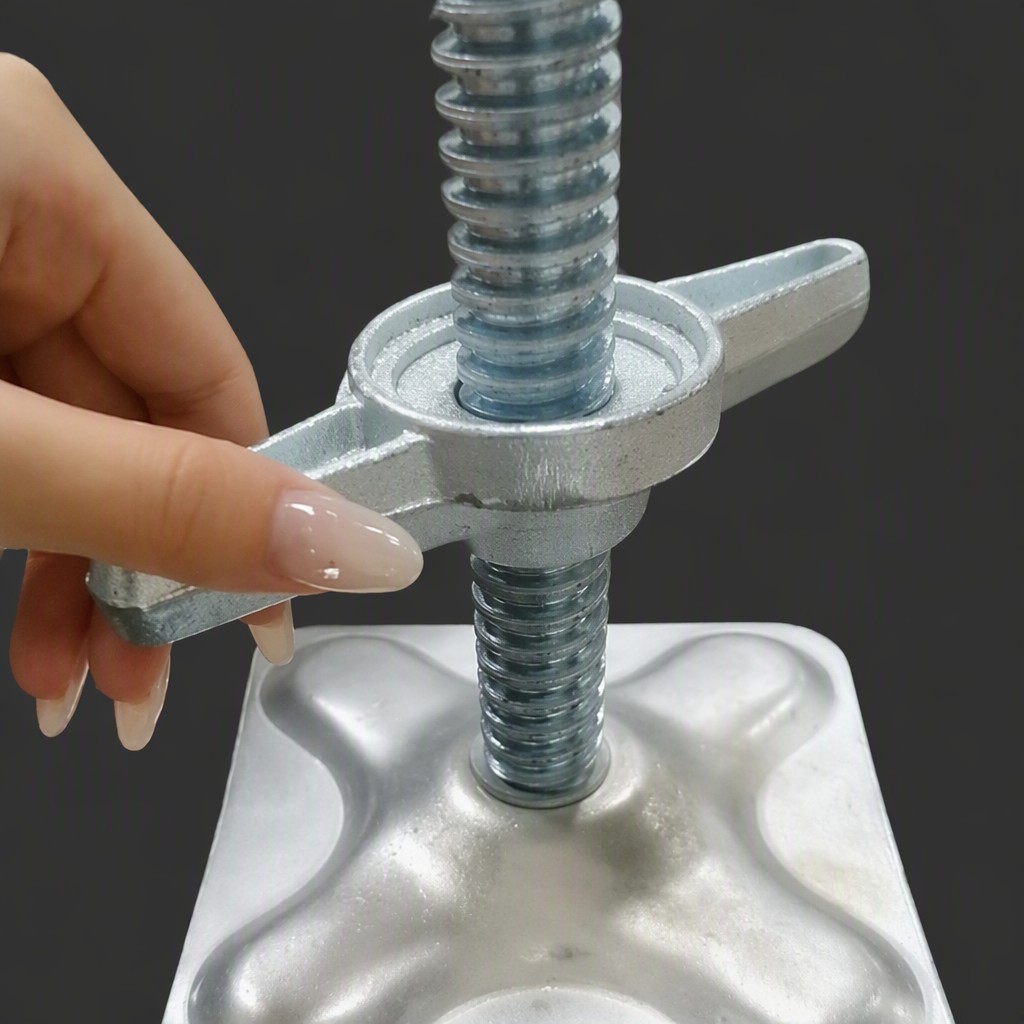

  • Cast Wing Handle — Ergonomic winged nut for tool-free manual adjustment
  • 8mm Locking Pin Hole — Cross-drilled at rod tip for safety locking pin
Q235 Steel Adjustable Screw Jack Leveling Foot with Galvanized X-Reinforced Base Plate for Truss Systems
Technical Specifications
Parameter Value
Material Q235 Carbon Steel
Surface Treatment Galvanized (Zinc Plated)
Base Plate 120 * 120mm, 5mm Thick
Screw Rod M30 * 250mm, Solid Full Thread
Top Hole 8mm Lock Pin Hole
Load Capacity ≥2000 kg
Accessories Welded Nut + Forged Collar + Wing Handle
Weight Approx. 3.5 kg
Q235 Steel Adjustable Screw Jack Leveling Foot with Galvanized X-Reinforced Base Plate for Truss Systems
Why Choose Our Screw Jack Base
  • Q235 Structural Steel — Industry-standard material for load-bearing stage hardware
  • X-Reinforced Base — Embossed cross-pattern distributes weight evenly, prevents base plate deformation under heavy loads
  • M30 Solid Rod — Thicker than standard M24 rods, handles 2000kg+ with safety margin
  • Welded Not Bolted — The nut is factory-welded to the base plate, not screwed — zero risk of loosening over time
  • Galvanized Finish — Corrosion-resistant for indoor and outdoor use, maintains clean appearance
Q235 Steel Adjustable Screw Jack Leveling Foot with Galvanized X-Reinforced Base Plate for Truss Systems
Applications

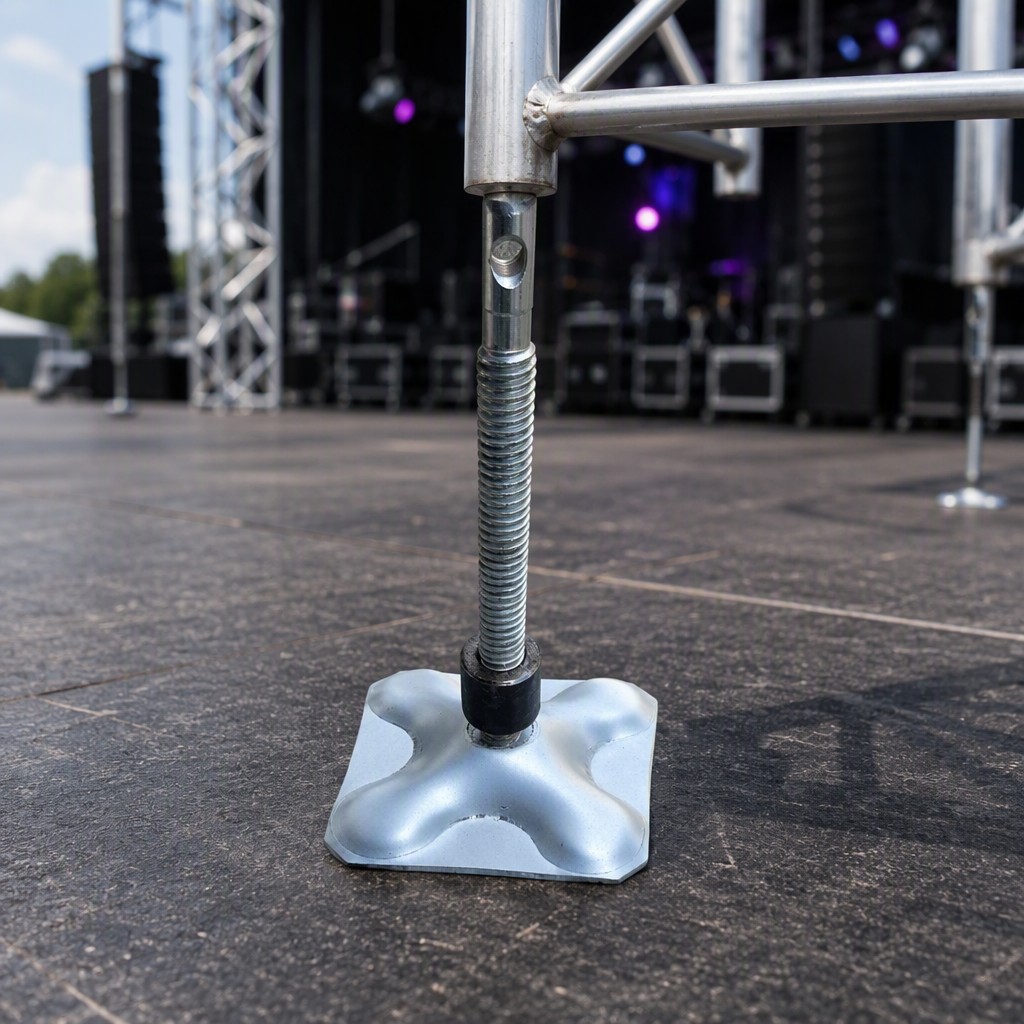

Stage truss ground support · Lighting stand leveling base · Event equipment foot · DJ booth stabilization · Exhibition display support
