StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
Specifications
Brand Name :
XuanQing
Model Number :
SH-113
Place of Origin :
China
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000000pcs/mon
Delivery Time :
10-15 work days
Packaging Details :
Carton Box
Warranty :
1 Year
After-sale Service :
Online Technical Support, Onsite Training, Other
Project Solution Capability :
Graphic Design, Total Solution For Projects, Others
Application :
All The Scenarios
Design Style :
Modern
Type :
Friction Stay
Highlight :
Side Hung Casement Friction Stay Hinge, Casement Window Friction Hinge, Stainless Steel Friction Stay Hinge
Description

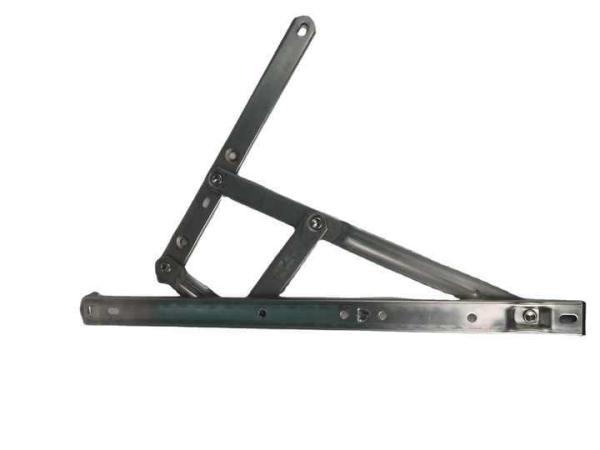

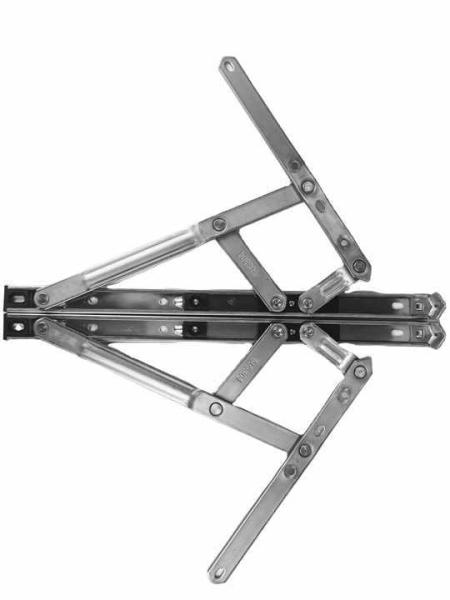

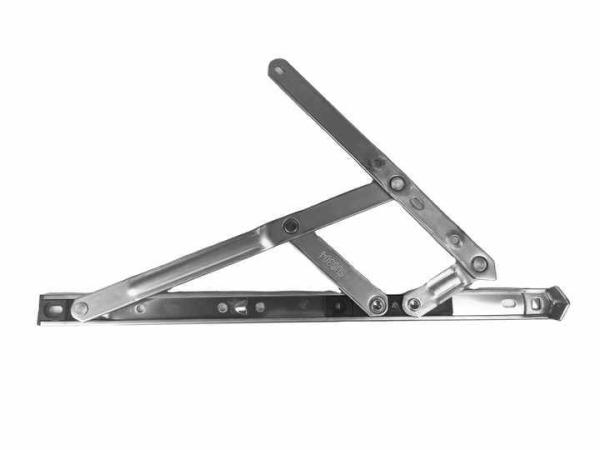

StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
Product Specifications
Attribute Value
Warranty 1 Year
After-sale Service Online Technical Support, Onsite Training, Other
Project Solution Capability Graphic Design, Total Solution For Projects, Others
Application All The Scenarios
Design Style Modern
Type Friction Stay
Highlight Top Hung Window Friction Stay, Stainless Steel Window Friction Stay, 14 Inch Top Hung Friction Hinge
Product Description

StormGuard’s heavy-duty hinge is engineered for side-hung windows, made from 316 marine-grade stainless steel to withstand saltwater and extreme weather. Its precision friction system ensures smooth operation, locking windows firmly at 30°–100°. Supports up to 90kg, works with uPVC/aluminum frames, and includes all mounting parts—perfect for coastal areas and commercial use.

Key Features
  • 304 marine-grade steel for saltwater/weather resistance
  • 90kg load capacity for large/thick glass windows
  • Secure locking at 30°–100° angles
  • Compatible with uPVC and aluminum frames
  • Ready-to-install with included hardware
Technical Specifications
Four-Link Suspension Brace Dimensions (mm)
Specification A B E F G H I J K L M N
10'' 258 251 145 44 30 200 190 112 58 38
12'' 301 293 210 181 44 30 175 135 58 38
14'' 348 339 222 193 44 30 202 160 58 38
16'' 402 394 227 198 44 30 236 195 60 42
18'' 454 445 222 193 44 30 256 216 58 38
20'' 499 490 260 231 44 30 298 246 58 38
22'' 551 542 268 239 44 30 329 287 216 93 58 38
24'' 598 589 274 245 44 30 373 331 249 135 60 42
Performance Specifications
Specification Maximum window height (mm) Maximum window width (mm) Material weight (kg) Opening Angle
10'' 900 400 20 ±87°
12'' 900 500 25 ±87°
14'' 1000 600 28 ±87°
16'' 1200 700 30 ±87°
18'' 1200 800 35 ±87°
20'' 1200 900 38 ±87°
22'' 1200 1000 42 ±87°
24'' 1200 1200 45 ±87°
Product Images
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
Manufacturer Information
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge
StormGuard Marine-Grade Stainless Steel Friction Stay Hinge

Foshan Xuanqing Door and Window Accessories Co., Ltd. is a distinguished manufacturer and supplier of a comprehensive range of high-quality door and window accessories. As a leading manufacturer of aluminum corner codes, we specialize in the production of a variety of aluminum angle codes that are integral to the construction and furniture industries. Our aluminum corner codes are designed for strength, durability, and precision, making them perfect for various applications such as connecting door and window frames, structural reinforcements, and providing support in both interior and exterior projects.
