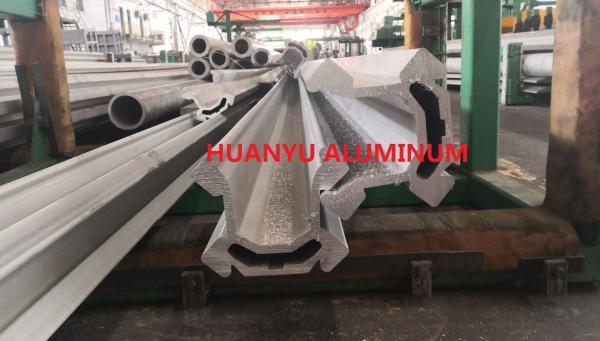

6000mm Feed Beam Aluminium Extrusion Bar For Rock Drilling
6000mm Feed Beam Aluminium Extrusion Bar For Rock Drilling
Specifications
Brand Name :
HUANYU
Model Number :
HYAFB7005EL281
Place of Origin :
People's Republic of China
MOQ :
5 Units
Payment Terms :
T/T, T/T
Supply Ability :
130Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 400cm to 700cm
Feed Beam Type :
ATLAS 281 JUMBO BOOMER
Length :
6000MM
Matchining :
Depends On Buyer's Demand
Material :
7000 Series Aluminum Alloy
Application :
HYDRAULIC ROCK DRILLING RIG
Net Weight Per Meter :
26.5 Kilograms Per Meter
Description

6000MM Atlas S1D Retractable Feed Beam Aluminum Extruded Profile

FEATURES

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 26kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 450cm X23cm X21 cm

SPECIFICATIONS

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 14FT (4267mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

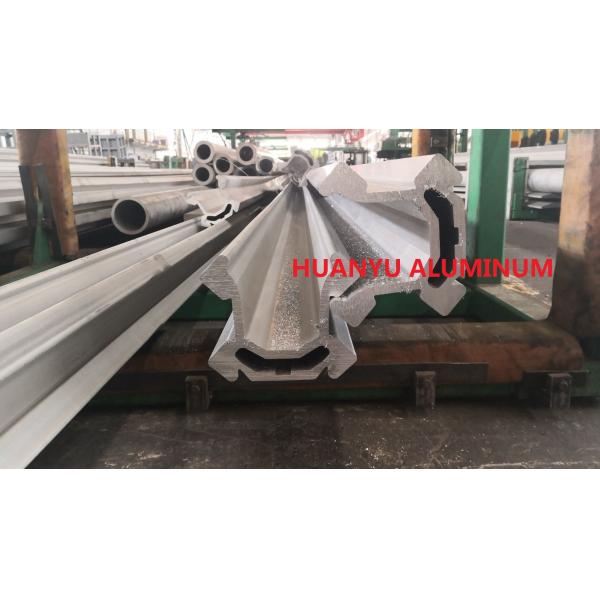

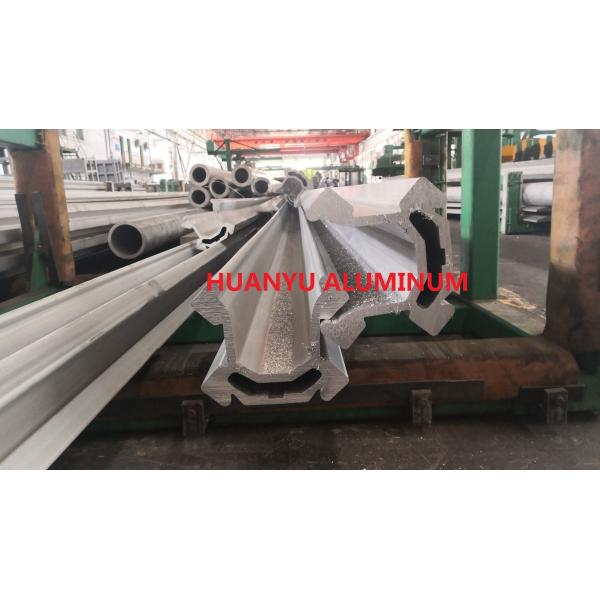

6000mm Feed Beam Aluminium Extrusion Bar For Rock Drilling6000mm Feed Beam Aluminium Extrusion Bar For Rock Drilling
