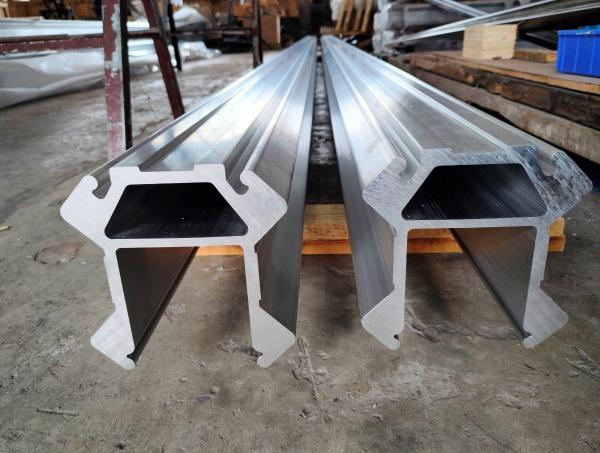

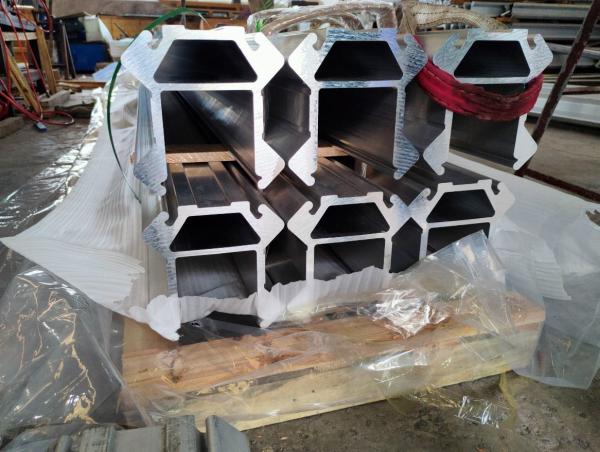

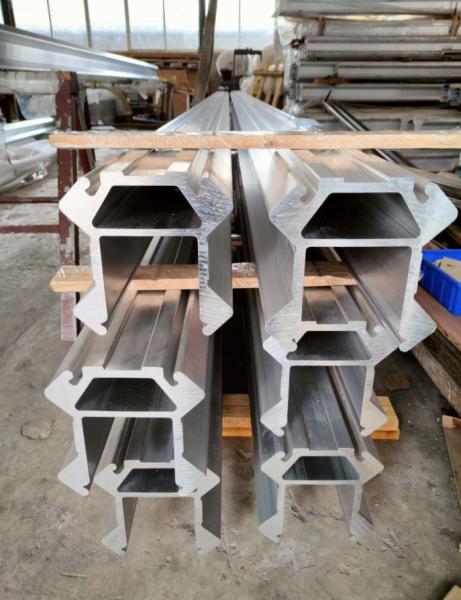

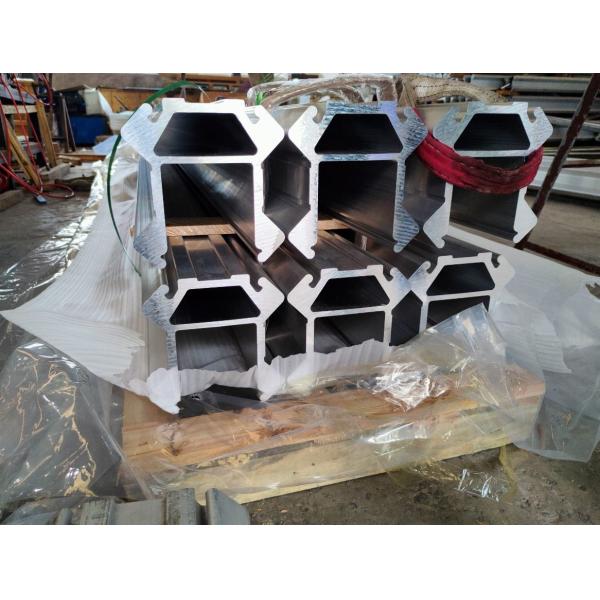

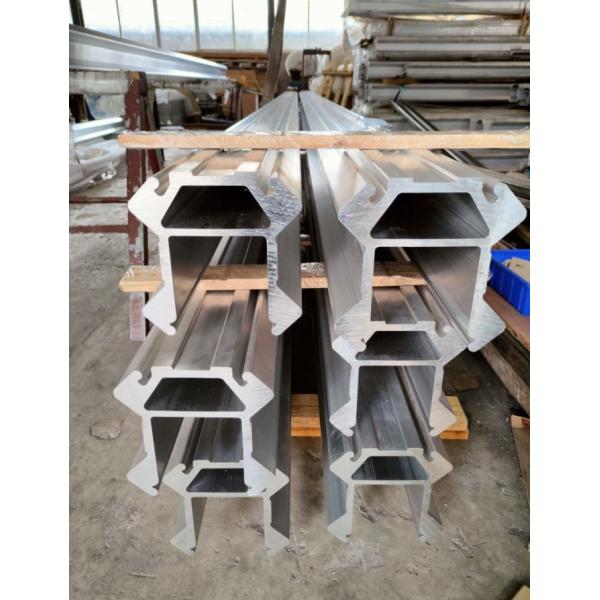

Mill Finish 7.25M Long Aluminium Extruded Profiles For Blasting
Mill Finish 7.25M Long Aluminium Extruded Profiles For Blasting
Mill Finish 7.25M Long Aluminium Extruded Profiles For Blasting
Mill Finish 7.25M Long Aluminium Extruded Profiles For Blasting
Mill Finish 7.25M Long Aluminium Extruded Profiles For Blasting
Mill Finish 7.25M Long Aluminium Extruded Profiles For Blasting
Specifications
Brand Name :
HUANYU
Model Number :
SFB7020T6
Place of Origin :
People's Republic of China
MOQ :
5 Units
Payment Terms :
T/T
Supply Ability :
55 Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length Max. 7.50Meters
Length :
7.25M Long Feed Beam for Mining Industry
Application :
Blasting
Materials :
7000 Series Aluminum Alloy
Weight Per Meter :
33KGS
Distoration Tolearnce :
2~3mm For Whole Length
Length Maximum :
8 Meters
Description

Mill Finish 7.25M Long TF500 Feed Beam Profiles Aluminium Extruded Profiles

SPECIFICATIONS:

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm (16 feet equal to 4876.80mm )

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 33kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 750cm X29cm X29 cm

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 21FT (6,500mm)/ Ranging from 2,100mm to 8,000mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Mill Finish 7.25M Long Aluminium Extruded Profiles For Blasting

Mill Finish 7.25M Long Aluminium Extruded Profiles For BlastingMill Finish 7.25M Long Aluminium Extruded Profiles For Blasting
