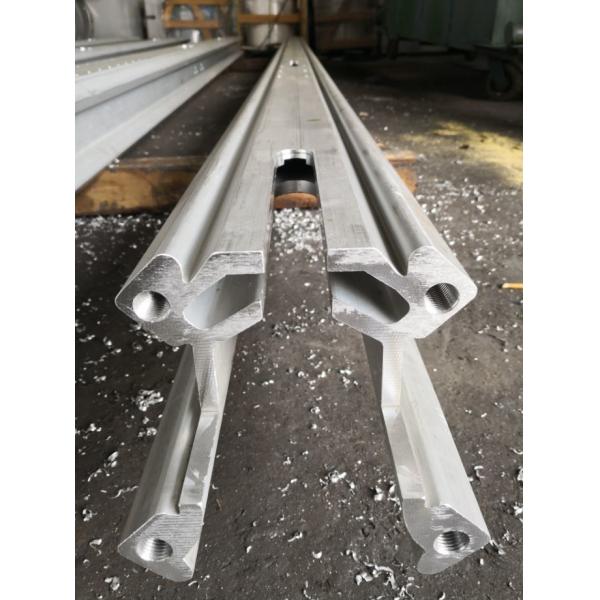

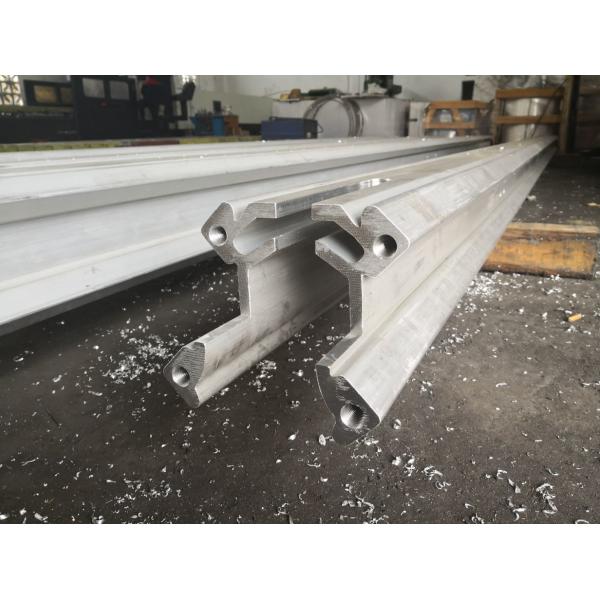

S1D Retractable Aluminium Extruded Profiles 4.1 Meters Length
S1D Retractable Aluminium Extruded Profiles 4.1 Meters Length
Specifications
Brand Name :
HUANYU
Model Number :
HYFB7020S1D
Place of Origin :
People's Republic of China
MOQ :
5 Units
Payment Terms :
T/T, T/T
Supply Ability :
70Pieces/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 620CM
Feed Beam Type :
S1D Retractable Boomer
Length :
4.1Meters
Matchining :
As Per Buyer's Demand
Material :
7000 Series Aluminum Alloy
Application :
Tunneling Blasting Boreholing
Net Weight Per Meter :
26 Kilograms Per Meter
Lead Time :
Immediately
Availability :
30 Pieces
Description

S1D Retractable Aluminium Extruded Profiles 4.1 Meters Length

Features

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 26kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 430cm X25cm X 24 cm

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2100mm to 7250mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

S1D Retractable Aluminium Extruded Profiles 4.1 Meters LengthS1D Retractable Aluminium Extruded Profiles 4.1 Meters Length
