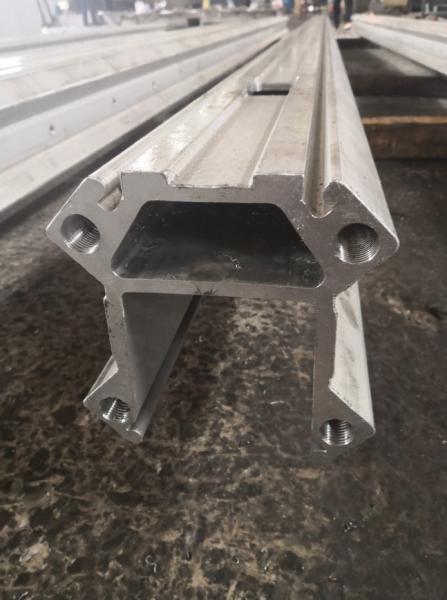

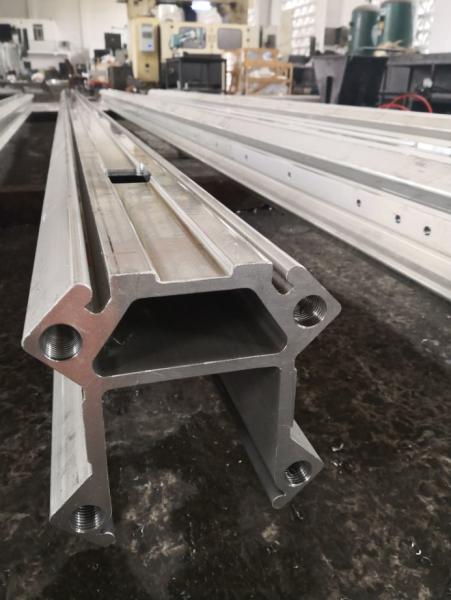

TF500 Feed Beam 7020 Aluminium Extruded Profiles Heat Treatment T6
TF500 Feed Beam 7020 Aluminium Extruded Profiles Heat Treatment T6
TF500 Feed Beam 7020 Aluminium Extruded Profiles Heat Treatment T6
TF500 Feed Beam 7020 Aluminium Extruded Profiles Heat Treatment T6
Specifications
Brand Name :
HUANYU
Model Number :
HY7020FB
Place of Origin :
People's Republic of China
MOQ :
5 Units
Payment Terms :
T/T
Supply Ability :
50Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 400cm to 700cm
Length :
6400MM Long Feed Beam for Mining Industry
Application :
Mining Industry, Tunnel Dring etc.
Materials :
7000 Series Aluminum Alloy
Weight Per Meter :
Approximately 35KGS
Distoration Tolearnce :
5mm For Whole Length
Length Maximum :
7250MM
Description

Professional TF500 Feed Beam Aluminium Extruded Profiles

SPECIFICATIONS

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,250mm

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 28.7kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 655cm X25cm X25 cm

FEATURES

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2,100mm to 7,250mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

TF500 Feed Beam 7020 Aluminium Extruded Profiles Heat Treatment T6TF500 Feed Beam 7020 Aluminium Extruded Profiles Heat Treatment T6
