Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
Specifications
Brand Name :
HUANYU
Model Number :
BMH6000FBP
Place of Origin :
People's Republic of China
MOQ :
5 Units
Payment Terms :
T/T, T/T
Supply Ability :
60Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 742cm
Feed Beam Type :
JUMBO BOOMER FEED BEAM
Length :
7,250MM
Matchining :
Depends On Buyer's Demand
Material :
7000 Series Aluminum Alloy
Application :
Tunneling Blasting Boreholing
Net Weight Per Meter :
37 Kilograms Per Meter
Surface Treatment :
Mill Finish
Lead Time :
Immediately
Description

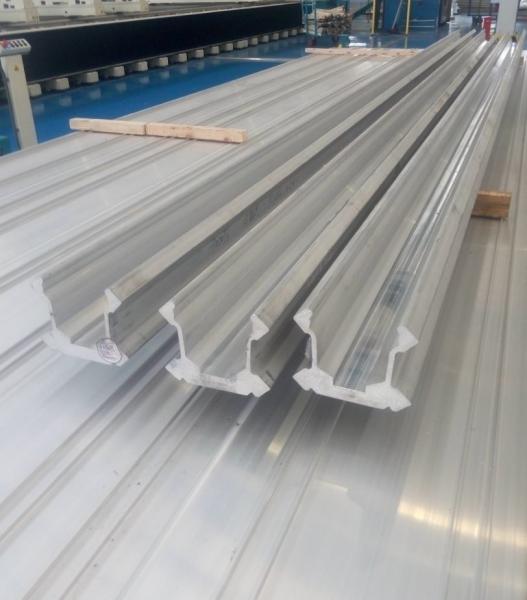

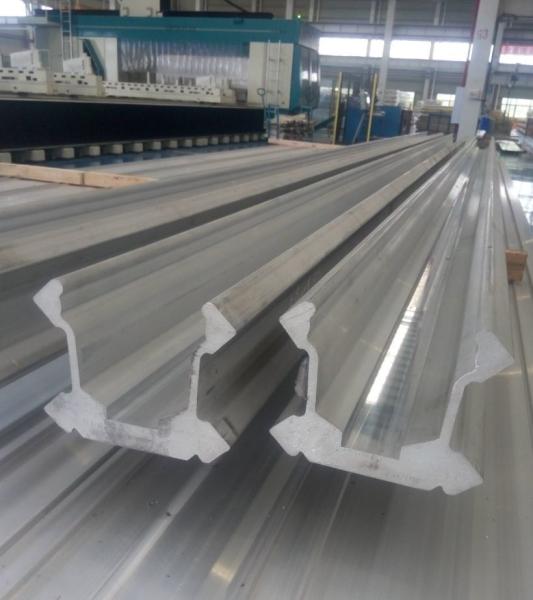

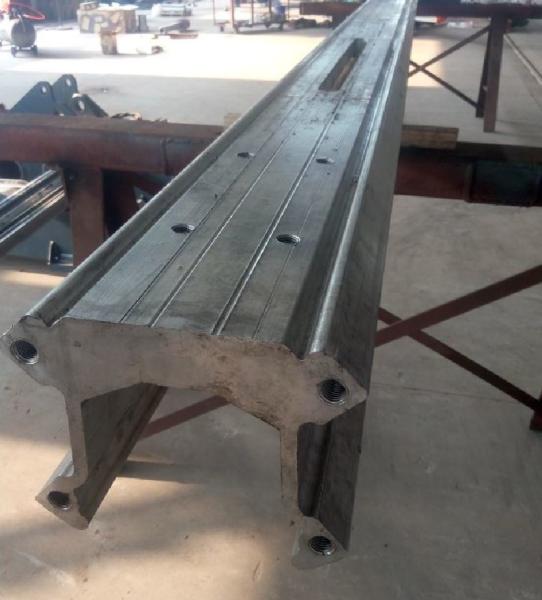

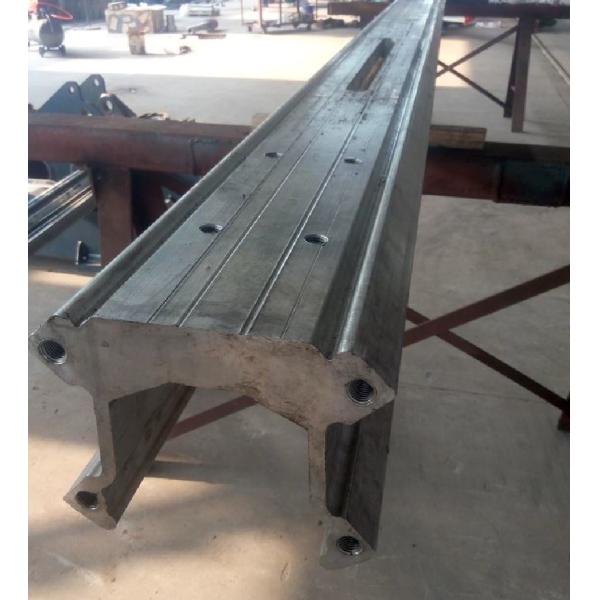

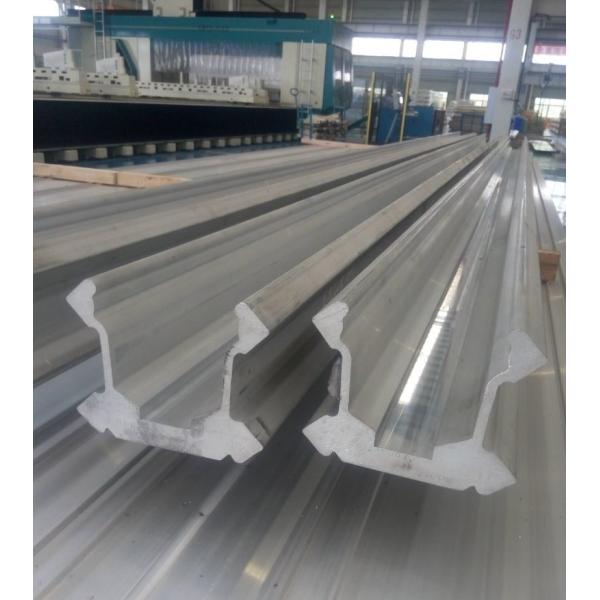

BMH6000 Feed Beam Profiles Tunneling Rock Drilling 7020 T6 Aluminium Extruded Profiles

SPECIFICATIONS

1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,250mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 26kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 742cm X28cm X 25 cm

FEATURES

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2,100mm to 7,250mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000Tunneling Rock Drilling Aluminium Extruded Profiles 7020 T6 BMH6000
