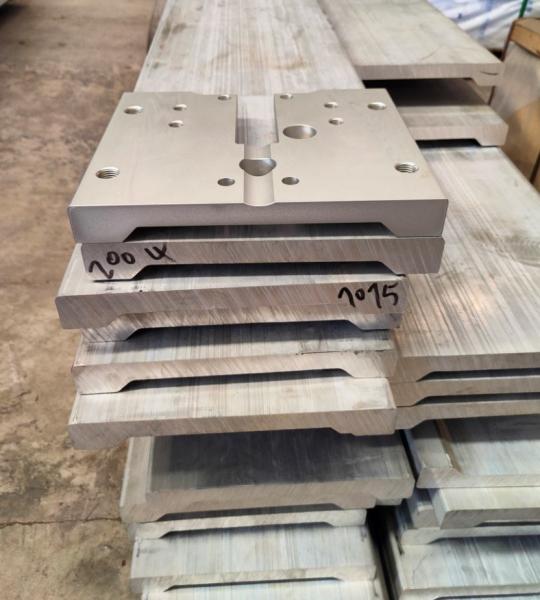

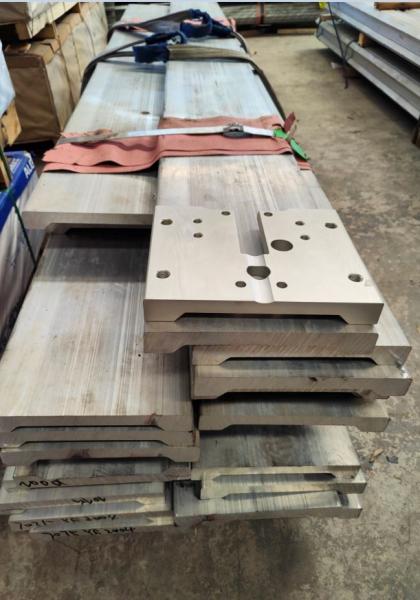

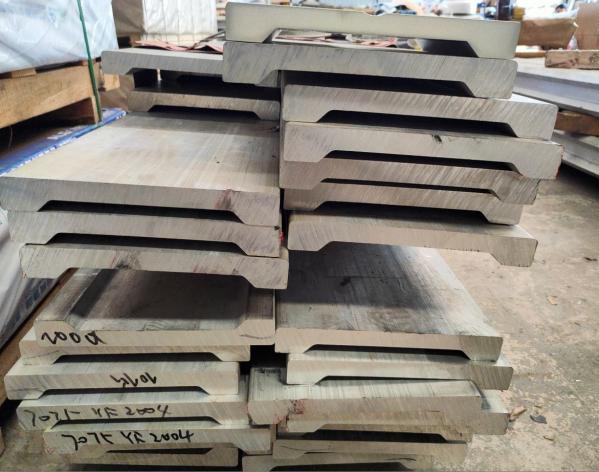

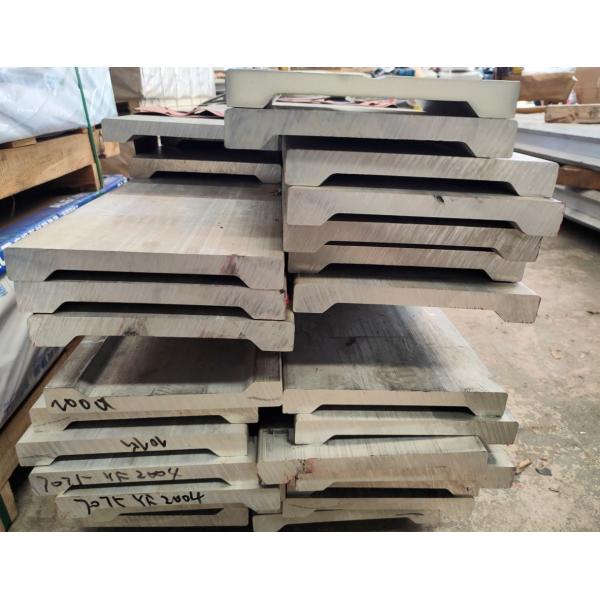

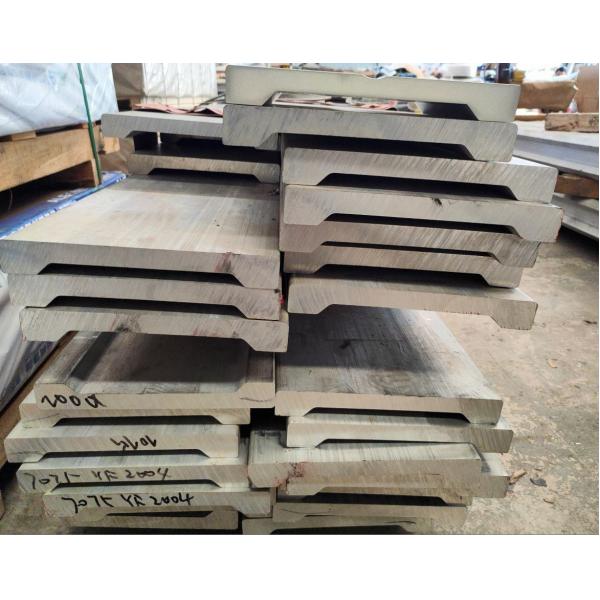

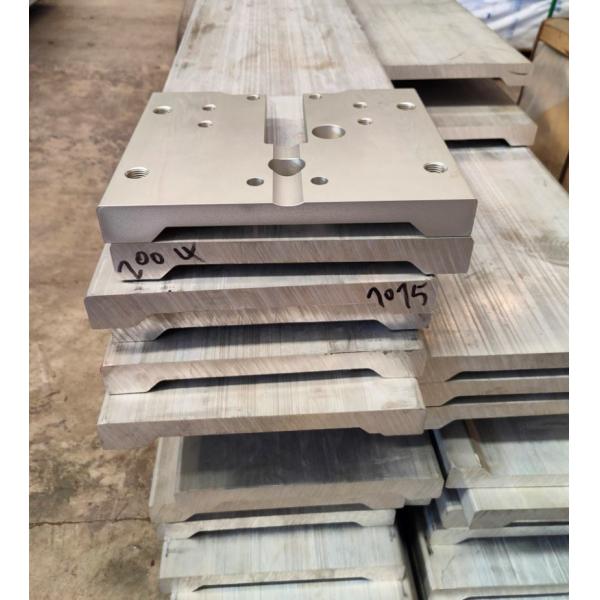

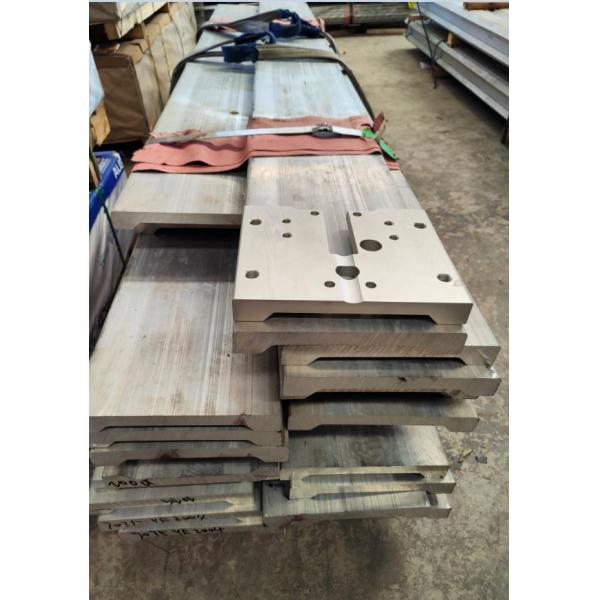

High Strength 7075 Extruded Aluminum Plate 280mm Wide Cradle Plate
High Strength 7075 Extruded Aluminum Plate 280mm Wide Cradle Plate
High Strength 7075 Extruded Aluminum Plate 280mm Wide Cradle Plate
High Strength 7075 Extruded Aluminum Plate 280mm Wide Cradle Plate
High Strength 7075 Extruded Aluminum Plate 280mm Wide Cradle Plate
High Strength 7075 Extruded Aluminum Plate 280mm Wide Cradle Plate
Specifications
Brand Name :
HUANYU
Model Number :
HY7075MP
Place of Origin :
CHINA
MOQ :
1000 Kilograms
Payment Terms :
T/T
Supply Ability :
40 METRIC TONS PER MONTH
Delivery Time :
7 DAYS
Packaging Details :
PLYWOOD CASE
Nominal Density (68° F / 20°C) :
2.80 g/c.c.
Melting Range :
532°C - 635 °C
Tensile Strength (ksi) :
78000 psi
Yield Strength (ksi) :
68000 psi
Elongation % :
8%
Applications :
Mining Drilling Industry
weight-to-strength ration :
Excellent
Thickness :
35mm
Length :
3.5 Meters
Description
280mm Wide Cradle Plate Usage High Strength 7075 Aluminium Extruded Plate
SPECIFICATIONS:
Width: 280mm tolerance -0 /+1mm
Thickness: 35mm , tolerance -0.5/+1.5 mm
Length: 3,500mm
Net Weight: 20.33KGS/Meter
Availability: 2,000Kilograms
Lead time: 7 days
FEATURES
7075 Aluminium Alloy
offers the highest strength of the common screw machine alloys.
The T6 and T651 tempers have fair machinability. Alloy 7075 is heavily utilized by the aircraft and ordnance industries because of its superior strength.
7075 Alloy Chemical Composition Limits
Weight% Al Si Fe Cu Mn Mg Cr Zn Ti Other Each Others Total
7075 min Rem - - 1.2 - 2.1 0.18 5.1 - - -
7075 max Rem 0.40 0.50 2.0 0.30 2.9 0.28 6.1 0.20 0.05 0.15

7075 Aluminum Typical Physical Properties

Characteristic English Metric
Nominal Density (68° F / 20°C) 0.101 lbs./ in ³ 2.80 Mg/m³
Melting Range 990° F - 1175° F 532°C - 635 °C
Specific Heat (212 °F / 100°C 0.23 BTU/lb - °F 960 J/kg-°K
