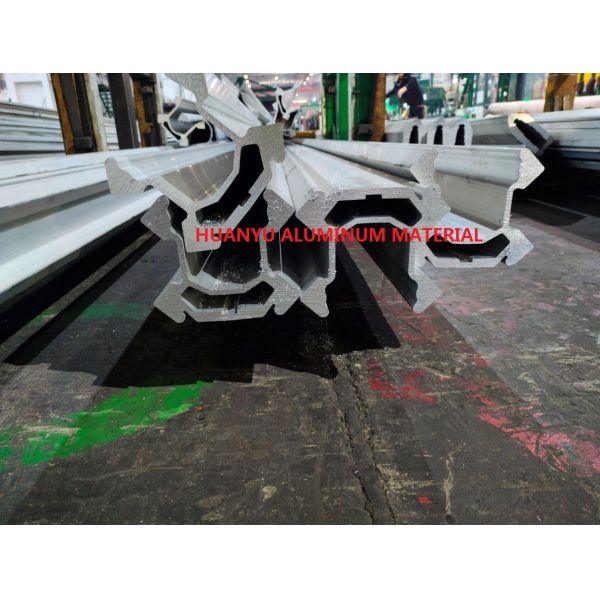

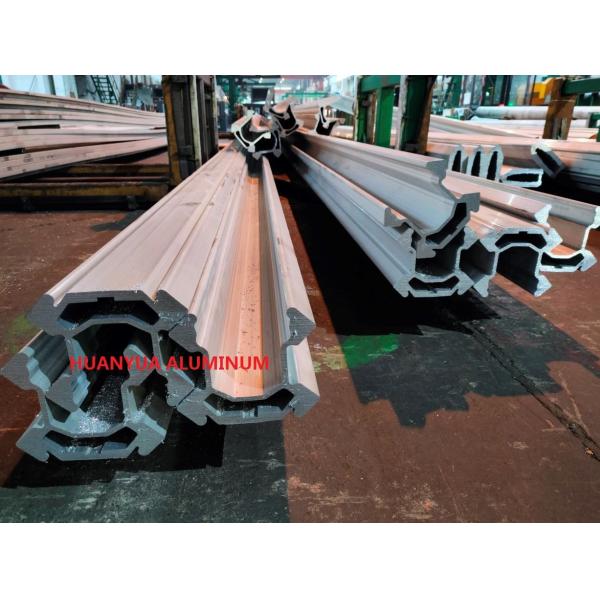

Blasting Industry Aluminium Extruded Profiles 7000 Series Mill Finish Feed Beam
Blasting Industry Aluminium Extruded Profiles 7000 Series Mill Finish Feed Beam
Blasting Industry Aluminium Extruded Profiles 7000 Series Mill Finish Feed Beam
Blasting Industry Aluminium Extruded Profiles 7000 Series Mill Finish Feed Beam
Specifications
Brand Name :
HUANYU
Model Number :
HYFB-BMH2000
Place of Origin :
People's Republic of China
MOQ :
5 Units
Price :
US$4889/Unit
Payment Terms :
T/T, T/T
Supply Ability :
80 Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 445CM
Feed Beam Type :
BMH2000 TYPE
Length :
14 FEET
Matchining :
Depends On Buyer's Demand
Material :
7000 Series Aluminum Alloy
Application :
Blasting
Net Weight Per Meter :
22.91Kilograms Per Meter
Surface :
Mill Finish
Description

Blasting Industry Usage BMH2000 Feed Beam Profiles BMH 2000 Aluminium Extruded Profiles

1. Material: Aluminum Alloy 7000 Series ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,100mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 22.91kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 448cm X23cm X21 cm

SPECIFICATIONS

Material Option Aluminum Alloy 7000 Series
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 14FT (4267mm)/ Ranging from 2100mm to 7100mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Blasting Industry Aluminium Extruded Profiles 7000 Series Mill Finish Feed Beam

Blasting Industry Aluminium Extruded Profiles 7000 Series Mill Finish Feed Beam

LEAD TIME

We can ship off BMH2000 feed beam profiles immediately (3~5days) from our warehouse after receive payments from buyers.

SHIPPING DURATION

35~38 Days From Shanghai Seaport To destination seaport Valparaiso, Chile, San Antonio, Chile And Callao, Peru
