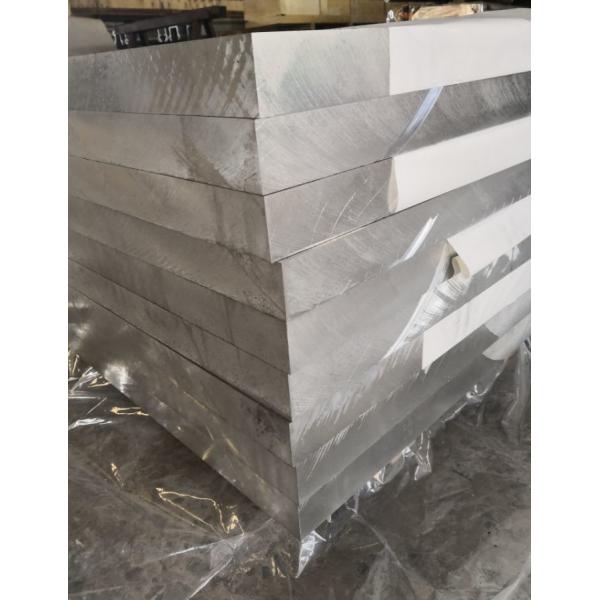

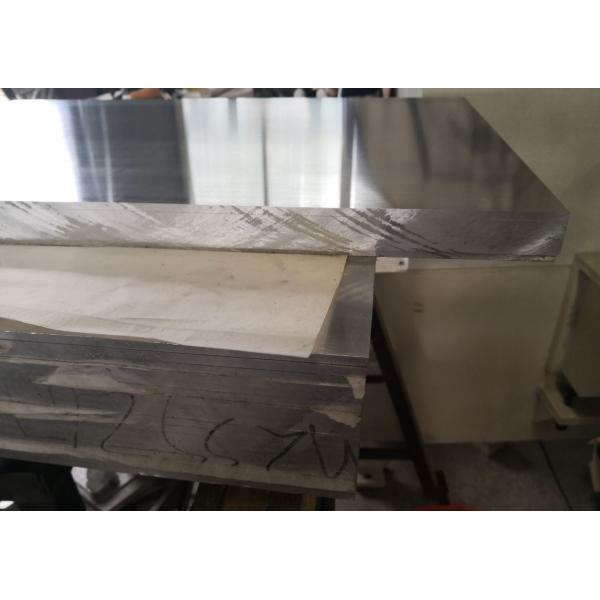

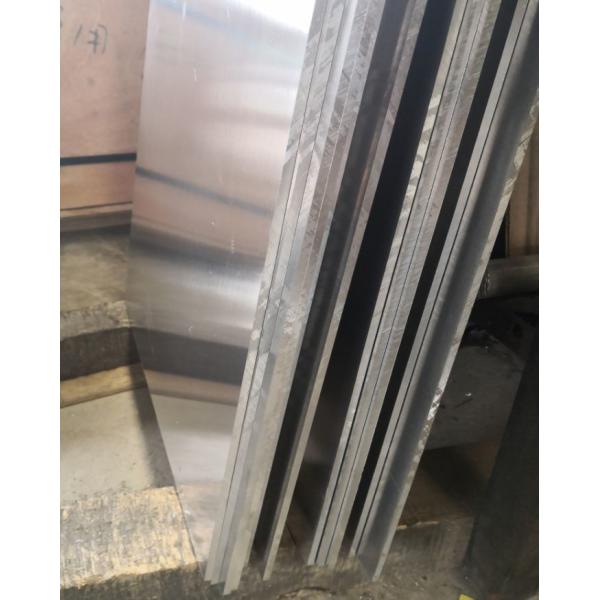

Thick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel Tanks
Thick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel Tanks
Thick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel Tanks
Thick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel Tanks
Thick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel Tanks
Thick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel Tanks
Specifications
Brand Name :
HUANYU
Model Number :
HYAP5052
Place of Origin :
CHINA
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
190 metric tons per month
Delivery Time :
21 DAYS
Packaging Details :
PLYWOOD CASE
Weldability :
Good
Corrosion Resistance :
Good
Thermal Conductivity :
Excellent
Fatigue Strength :
High
Application of 6063 Aluminum Plate :
aircraft fuel tanks, storm shutters, refrigerator liners and panels, etc.
Temperature of Forging And Hot Working :
500 to 950 degrees Fahrenheit
Description

5052 Aluminum Plate With Excellent Thermal Conductivity Used For Aircraft Fuel Tanks

5052 Aluminum Plate is primarily alloyed with magnesium and chromium. It has good workability, medium static strength, high fatigue strength, good weldability, and very good corrosion resistance, especially in marine atmospheres. It also has the low density and excellent thermal conductivity, used for aircraft fuel tanks, storm shutters, refrigerator liners and panels, etc.

5052 aluminum plate can be joined by conventional welding methods. Inert gas-shielded tungsten or consumable electrode arc welding are the preferred joining methods.

Forging and hot working of 5052 are typically performed at temperature range of 500 to 950 degrees Fahrenheit.

Chemical Composition Limits
Weight% Al Cu Si Fe Mn Mg Zn Cr Others
5052 Bal 0.10 max 0.25 max 0.40 max 0.10 max 2.2 / 2.8 0.10 max 0.15 / 0.35 max 0.05 max (each)
0.15 (total)

Material Temper Tensile Strength (ksi) Yield Strength (ksi) Elongation % in 2" min bend radius (90° cold forming)
5052 Sheet 5052-0 25-31 9.5 19 0
5052 Sheet 5052-H32 31-38 23 7 1t
5052 Sheet 5052-H34 34-41 26 6 1 1/2 t

Thick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel TanksThick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel TanksThick Wall 5052 Aluminum Plate Excellent Thermal Conductivity For Aircraft Fuel Tanks
