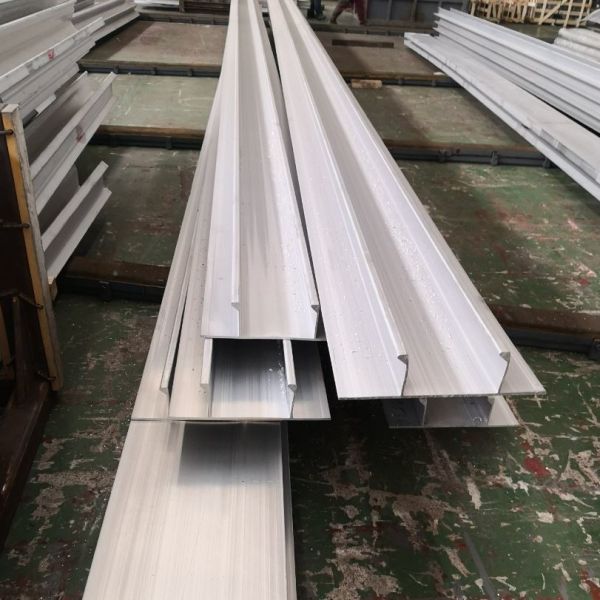

U Channel Constructional Aluminium Extruded Profiles 4800mm
U Channel Constructional Aluminium Extruded Profiles 4800mm
Specifications
Brand Name :
HUANYU
Model Number :
HYCE6063T6
Place of Origin :
CHINA
MOQ :
5 METRIC TONS
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
50 METRIC TONS PER MONTH
Delivery Time :
40 days
Packaging Details :
PALLET
Wall Thickness :
16mm
Density :
2.8 g/cc
Ultimate Tensile Strength :
186 MPa
Yield Tensile Strength :
145 MPa
Melting Point :
556-654 Celsius Degree
Elongation at Break Percentage :
16%
Application :
Constructional Constructure
Shape :
U CHANNEL
Description

4,800MM Long U Channel Constructional Use Aluminum Extrusion Profiles

Features

6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.

Specifications

Specifications on High Strength 6063 T6 Extruded Profiles Used As Constructional Wall

Wall Thickness: 16.00mm

Shape: Customized

Length: 4,800mm

6063 Typical Chemical Composition %
Weight % Si Fe Cu Mn Mg Cr Zn Ti Each Total
Minimum 0.20 0.45
Maximum 0.60 0.35 0.10 0.10 0.90 0.10 0.10 0.10 0.05 0.15

Remainder Aluminum

6063 Typical Mechanical Properties
Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
T5, T52 27 186 21 145 12 60
T6 35 241 31 214 12 73

U Channel Constructional Aluminium Extruded Profiles 4800mm
