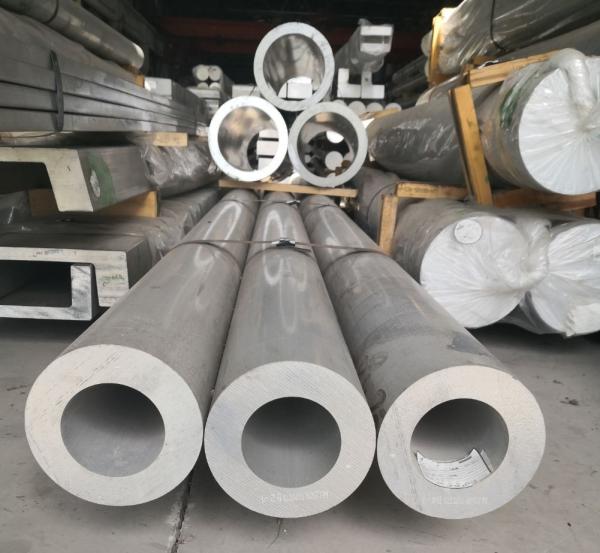

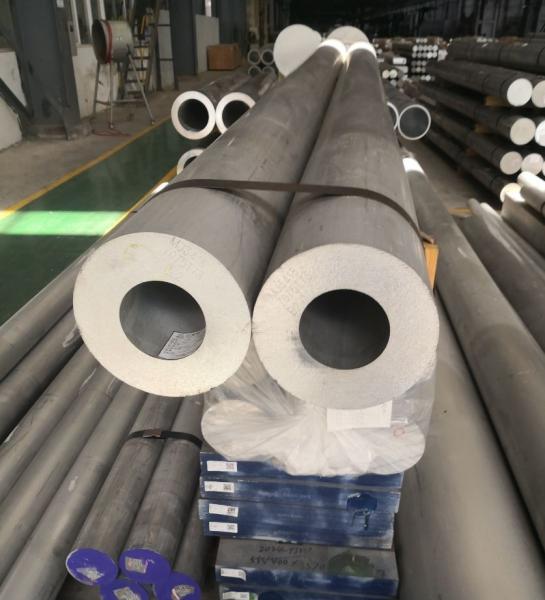

Aerospace Thick Wall 7075 T73 Aluminum Round Tubing
Aerospace Thick Wall 7075 T73 Aluminum Round Tubing
Aerospace Thick Wall 7075 T73 Aluminum Round Tubing
Aerospace Thick Wall 7075 T73 Aluminum Round Tubing
Specifications
Brand Name :
HUANYU
Model Number :
HYSP7075T73
Place of Origin :
CHINA
MOQ :
1 METRIC TON
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
60 Metric Tons Per Month
Delivery Time :
40 days
Packaging Details :
Plywood Case
Ultimate Tensile Strength :
505 MPA
Yield Strength :
434MPA
Elongation in 2%22 :
13%
Brinell Hardness :
150
Shapes :
Rounds
Outer Diameter :
316MM
Wall Thickness :
85mm
Description
Thickly Walled 7075 T73 Seamless Aluminum Tubing High Strength For Aerospace Application
7075-T73 Seamless Aluminum Tubing
has excellent stress corrosion resistance and high strength properties and is used in the manufacture of aircraft and high performance industries.
7075 alloys providing superior strength and elongation under stress.
The process starts with a hot billet being pierced by a mandrel. A ram is pushed against a die and forties out the aluminum. With a fores in excess of 4,000 tonnes the aluminum is extruded through the die and over the mandrel.

7075 T73 Seamless Aluminum Tubing Availability:

OD:180mm through 387mm
Walls: 50mm through 127mm
Shapes: Rounds

Tempers: T73

Typical Chemical Composition %
Weight % Si Fe Cu Mn Mg CR Zn TI Each Total
Minimum 1.20 2.10 .18 5.10
Maximum .40 .50 2.00 .30 2.90 .28 6.10 .20 .05 .15

Remainder Aluminum

Typical Mechanical Properties
Temper Tensile Hardness
Ultimate Yield Elongation Brinell
KSI MPA KSI MPA %
O 33 228 15 103 17 60
T6 83 572 73 503 11 150
T73 73 503 63 434 13
