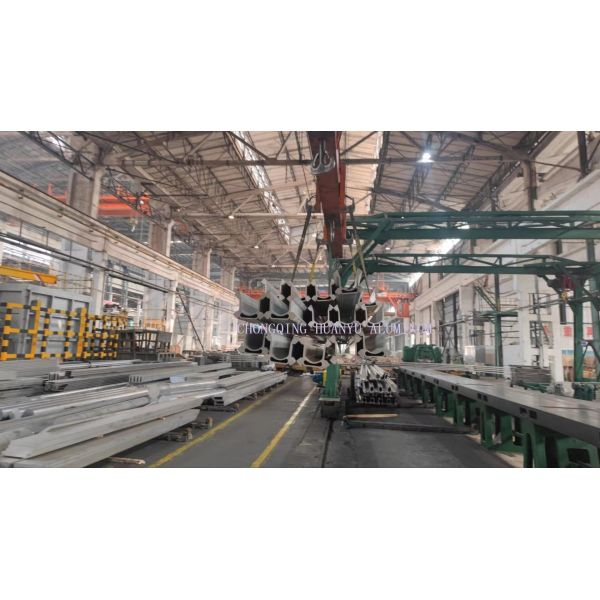

Mining Industry Aluminium Extruded Profiles Customized Feed Beam 4.9 Meters
Mining Industry Aluminium Extruded Profiles Customized Feed Beam 4.9 Meters
Mining Industry Aluminium Extruded Profiles Customized Feed Beam 4.9 Meters
Mining Industry Aluminium Extruded Profiles Customized Feed Beam 4.9 Meters
Specifications
Brand Name :
HUANYU
Model Number :
HYAFBMH5500
Place of Origin :
People's Republic of China
MOQ :
10 Units
Payment Terms :
T/T, T/T
Supply Ability :
65Units/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 468CM
Feed Beam Type :
UMBO BOOMER
Length :
4.9 Meters
Matchining :
As Per Buyer's Demand
Material :
7000 Series Aluminum Alloy
Application :
Mining Industries
Net Weight Per Meter :
28 Kilograms Per Meter
Surface :
Mill Finish
Description

Mining Industry Usage Customized Feed Beam Profiles Aluminium Extruded Profiles

FEATURES

1. Material: Aluminum Alloy 7000 Series ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,000mm to 7,250mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 28kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 4885cm X30cm X30 cm

SPECIFICATIONS

Material Option Aluminum Alloy 7000 Series
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 14FT (4267mm)/ Ranging from 200mm to 7250mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length
