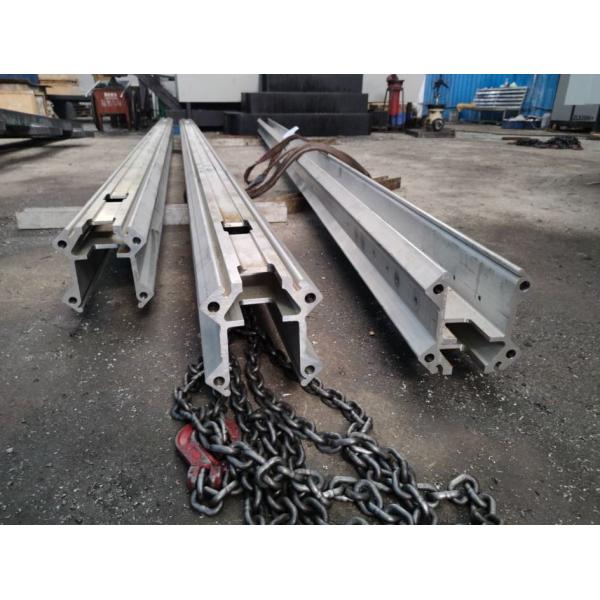

Rock Drilling Aluminium Extruded Profiles Rig Use TF500 Feed Beam
Rock Drilling Aluminium Extruded Profiles Rig Use TF500 Feed Beam
Specifications
Brand Name :
HYFB
Model Number :
SVK TF500
Place of Origin :
People's Republic of China
MOQ :
10 pieces
Payment Terms :
T/T
Supply Ability :
200 pieces/Month
Delivery Time :
1 Week
Packaging Details :
Plywood Case Length 7.39Meters
Length :
6,500MM Long Feed Beam for Blasting or Tunneling Industry
Application :
Rock Drilling Industry
Materials :
7000 Series Aluminum Alloy
Weight Per Meter :
Approximately 29.6KGS Per Meter
Distoration Tolearnce :
1~5mm For Whole Length
Length Maximum :
6.5 Meters
Surface :
Mill Finish
Description

Rock Drilling Rig Use TF500 Feed Beam Aluminium Extruded Profiles

SPECIFICATIONS

1. Material: Aluminum Alloy 7000 Series ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 7,250mm

7. Feed Beam can be machined as per buyers' demand

8. Net Weight: 29.3kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 667cm X25cm X25 cm

FEATURES

Material Option Aluminum Alloy 7020
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option Standard 16FT (4876mm)/ Ranging from 2,100mm to 7,250mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

Rock Drilling Aluminium Extruded Profiles Rig Use TF500 Feed Beam
