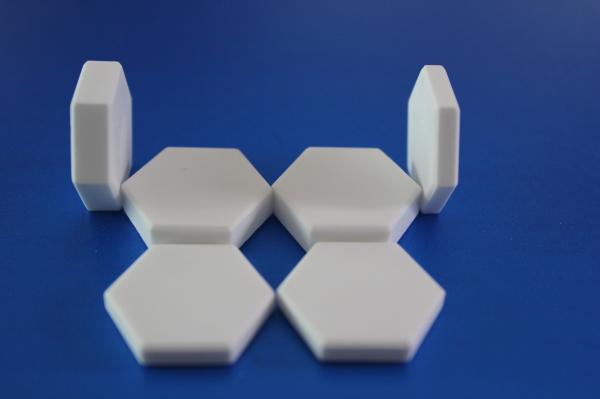

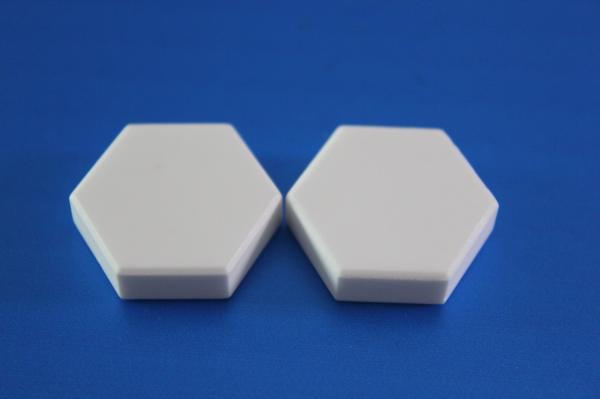

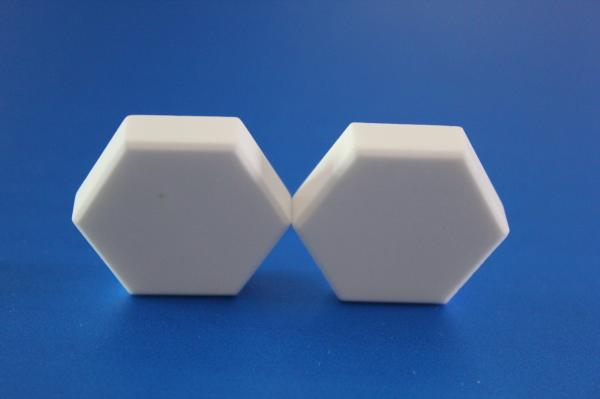

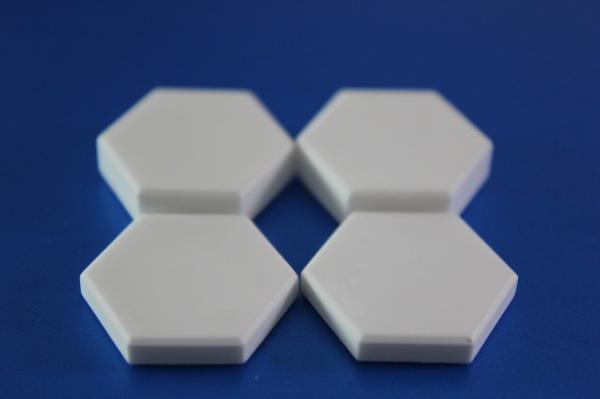

Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
LJ Ceramic
Certification :
ISO9001:2008/ROHS
MOQ :
2 piece
Price :
Negotiation
Packaging Details :
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time :
To be negotiated
Payment Terms :
L/C ，T/T
Model Number :
Aluminium Ceramic Tile
Description

Electrical Alumina Ceramic Substrate Alumina Ceramic Tile

Applications

  • Electronics and Electrical Engineering: Used as substrates for electronic circuits, insulators, and semiconductor components.
  • Building and Decoration: Used for floors and walls where wear resistance and aesthetics are important.
  • Mechanical Engineering: Used in wear-resistant components, cutting tools, and mechanical seals.
  • Ballistic Armor: Widely used in bulletproof vests, armored vehicles, and security facilities due to their high strength and impact resistance.
  • Chemical Industry: Used in corrosion-resistant and high-temperature equipment and pipe linings.
  • Medical Equipment: Used in dental implants and surgical tools due to their biocompatibility and durability.Electrical Alumina Ceramic Substrate Alumina Ceramic Tile

Product Name
Ceramic Tile
Material
 Alumina 99(99% Alumina) Sintered Silicon Carbide(SSiC)
Boron Carbide(B4C)
Density
3.12-3.16 g/cm3
3.88 g/cm3
2.8 g/cm3
Purity
99% min
Types
Hexagon Tiles/Rectangle Tiles/Curved Rectangle Tiles/Single Curved Plates
Shapes
Square/Hexagonal/Cylinder/Rectangle/Single-curved Plate/Cut-angle Tile, etc
Sizes
50*50mm; 100*100mm; 50*25mm; 100*50mm (Specific Sizes Are Also Available)
Hex Tile Flat To Flat 20mm, 30mm, 40mm
Features
Excellent energy savings; Lighter weight and higher load capacity;
Excellent distortion resistance at high temperature;
High thermal conductivity; High Young's modulus;
Low thermal expansion coefficient; Extremely high hardness; Wear resistant

Product Index
Silicon Carbide Bonded Boron Carbide Ceramic Tiles
Item
 Index
Bulk Density (g/cm3)
2.82
Apparent Porosity (%)
 0.336
Bending Strength (Mpa) 290
HRA 90.9
Vickers Hardness(kgf/mm2 ) 2630
Alumina Tiles
Item
Unit
 99 Alumina Tiles
Al2O3 % 99
Bulk Density
g/cm3
3.88
Vickers Hardness
HV
 1550
Rockwell Hardness HRA 91
Rupture Strength Mpa 350
Elasticity Modulus
Gpa
323
Breaking Tenacity Mpa m1/2 3.99


Features:

1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed

Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina SubstrateElectrical Alumina Ceramic Tile High Strength 99% Purity Alumina SubstrateElectrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate

Applications


Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate

Purchase process

Electrical Alumina Ceramic Tile High Strength 99% Purity Alumina Substrate

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
