Specifications
Place of Origin :
Jiangsu, China
Brand Name :
LJ Ceramic
Certification :
ISO9001:2008/ROHS
MOQ :
2 piece
Price :
Negotiation
Packaging Details :
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time :
To be negotiated
Payment Terms :
L/C ,T/T
Description

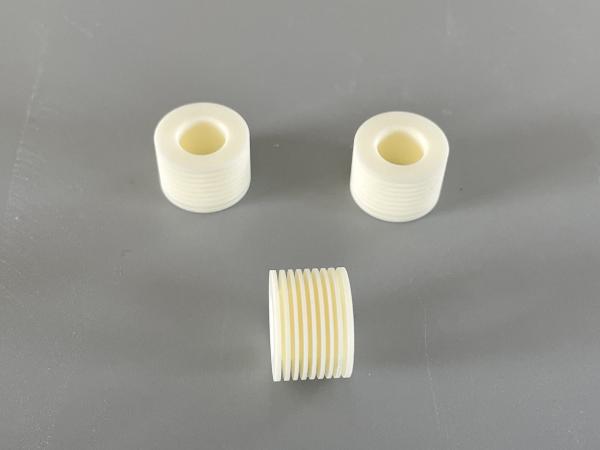

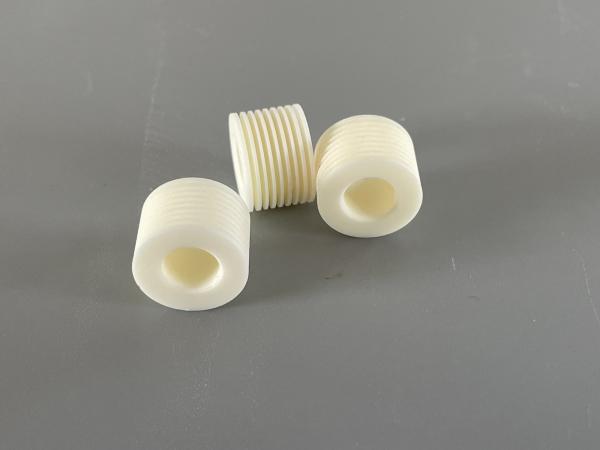

High Wear-Resistant Photovoltaic Ceramic Support And Ceramic Base

Enhance the durability and performance of your photovoltaic systems with our high wear-resistant ceramic brackets and bases. Designed specifically for the demanding conditions of solar energy applications, these ceramic components offer exceptional resistance to wear, corrosion, and high temperatures.

Why Choose Our Ceramic Brackets and Bases?

  • Outstanding Durability: Engineered to withstand harsh environmental conditions, ensuring long-term stability.
  • Superior Wear Resistance: Ideal for continuous exposure to abrasive elements, maintaining structural integrity over time.
  • High-Temperature Tolerance: Perfect for photovoltaic applications where heat resistance is critical.
  • Precision Manufacturing: Customizable to meet the exact specifications of your solar installation.

Ceramic Properties Table
Name 99ceramic 95ceramic Zirconia
Main Ingredients Al2O3>99% Al2O3>95% ZrO2≥94%
Physical properties Density 3.85 3.6 5.9
Water Absorption% 0 0 0
Sintering temperature°C 1690 1670 1650
Material properties Hardness HV 1700 1600 1400
Flexural strength 4pt >3500 >2900 >11000
Compressive strength Kgf/㎡ 30000 25000 25000
Thermal properties Maximum operating temperature°C 1500 1400 1600
Coefficient of thermal expansion 8 7.8 10
10-6/°C
0-1000°C
Electrical Characteristics Thermal shock resistance T(°C) 200 220 350
Thermal conductivity W/m.k 31 22 3
Volume resistivity Ω.cm >10¹² >10¹² >10¹²
Dielectric breakdown strength KT/m 18 16 15
Dielectric constant 1MHZ(E) 9.2-10.5 9.0-10 12.5

High Wear Resistant 99 Alumina Photovoltaic Ceramic Support Ceramic BaseHigh Wear Resistant 99 Alumina Photovoltaic Ceramic Support Ceramic BaseHigh Wear Resistant 99 Alumina Photovoltaic Ceramic Support Ceramic Base

Purchase process

High Wear Resistant 99 Alumina Photovoltaic Ceramic Support Ceramic Base

High Wear Resistant 99 Alumina Photovoltaic Ceramic Support Ceramic BaseHigh Wear Resistant 99 Alumina Photovoltaic Ceramic Support Ceramic Base

FAQ
Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
