Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
LJ Ceramic
Certification :
ISO9001:2008/ROHS
MOQ :
2 piece
Price :
Negotiation
Packaging Details :
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time :
To be negotiated
Payment Terms :
L/C ，T/T
Description

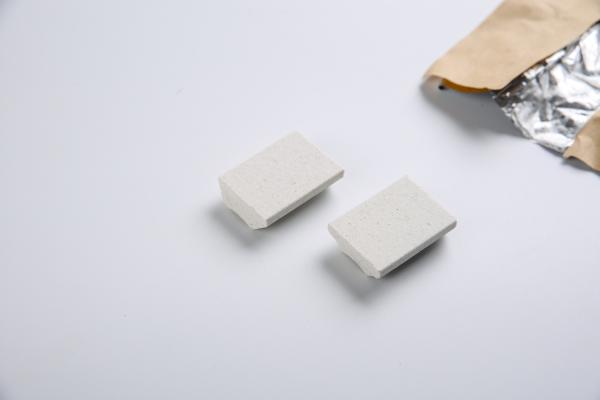

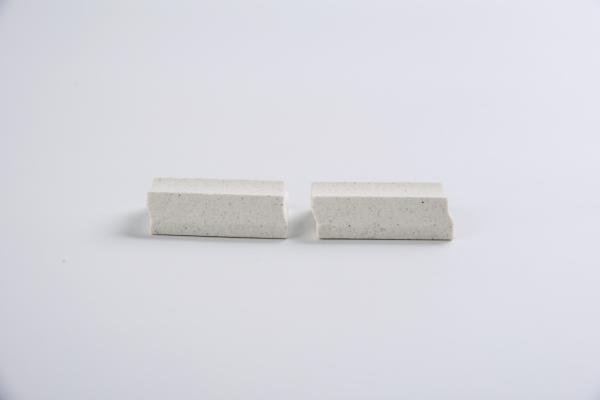

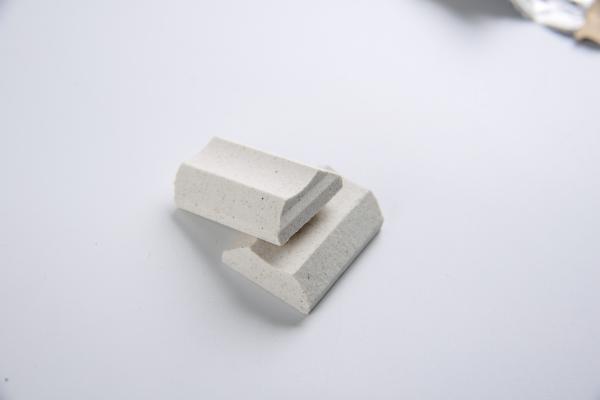

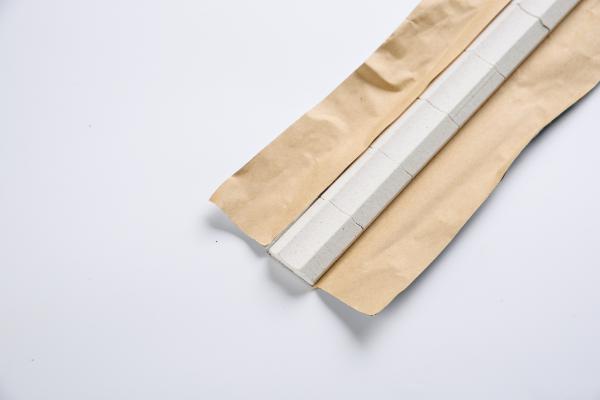

Boiler And Pressure Vessels Welding Ceramic Weld Backing Tapes
Welded ceramic backings are widely used in pipe welding, shipbuilding, pressure vessel manufacturing and other industries that require high quality welding. In these industries, welding quality and reliability are critical to the performance and safety of the final product. In pipeline welding, welding ceramic backing can ensure good formation of the root of the weld and improve the sealing and pressure resistance of the pipeline. In the shipbuilding industry, the application of welded ceramic backing can improve the strength and durability of hull structures and reduce welding defects and repair costs. In pressure vessel manufacturing, welding ceramic backing can ensure the high quality and reliability of welds and improve the safety performance and service life of pressure vessels. In addition, welding ceramic backing can also be used in other areas that require high-quality welding, such as bridge construction, building structures, and heavy machinery manufacturing. In these fields, the application of welding ceramic backing can significantly improve welding efficiency and quality, reduce scrap and rework rates, and reduce production costs.

Ceramic material performance index
Alumina Ceramic
Zirconia Ceramic
Performance
Unit
 ≧95 ≧99 ≧99.5
Bulk density g /cm3 3.7 3.85 3.85 6
Hardness HRA ≥ 86 88 88 92
Flexure strength Mpa≧ 300 350 400 1100
The max.temperature ℃ 1500 1500 1500 1450
Linear expansion coefficient ×10-6/℃ 7.5 8.2 8.2 10.2
Dielectric constant εr20℃, 1MHz 9 9.2 9.2 28
Dielectric loss tanδ×10-4, 1MHz 3 2 2 10
Volume resistivity Ω·cm 20℃
10^13
 10^14 10^14 10^14
Disruptive strength KV/mm , DC≥ 20 20 20 20
Acid resistance mg/cm2 ≤
0.7
 0.7 0.7 2
Alkali resistance mg/cm2 ≤ 0.2 0.1 0.1 0.08
Abrasive resistance g/cm2 ≤ 0.2 0.1 0.1 0.05
Compressive strength MPa ≥ 2500 2500 2500 3000
Rupture strength MPa ≥ 200 350 350 600
Elasticity modulus GPa 300 350 350 210
Poisson ratio 0.2 0.22 0.22 0.23
Heat conductivity W/m·K( 20℃) 20 25 25 2.6

Product List
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes
Production Workshop
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing TapesBoiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing TapesBoiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing TapesBoiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes

Applications

Widely applied in Shipbuilding, Bridge Building, Tank & Tube Welding
Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes

Packing and shipping



Boiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing TapesBoiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing TapesBoiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing TapesBoiler Pressure Vessels Ceramic Welding Tape Weld Ceramic Backing Tapes

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
