High Precision Welding Tig Torch Ceramic Cups Durable 10N Series Extended Ceramic Nozzle

Specifications

Place of Origin :

Jiangsu, China

Brand Name :

LJ Ceramic

Certification :

ISO9001:2008/ROHS

MOQ :

2 piece

Price :

Negotiation

Packaging Details :

Use the export carton which is secure against breakage on the MDF pallet.

Delivery Time :

To be negotiated

Payment Terms :

L/C ，T/T

Description

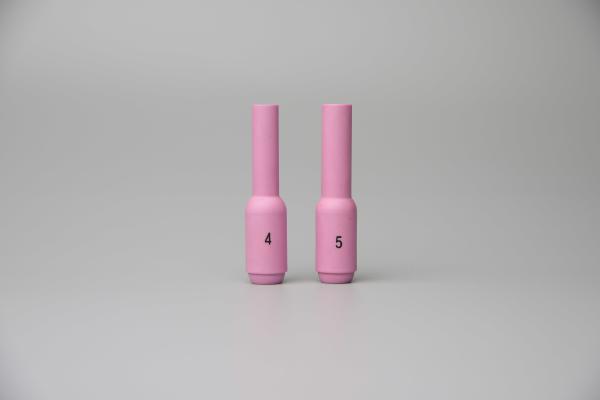

High-Precision Welding Efficient And Durable 10N Extended Ceramic Nozzle

Technological advancements have led to significant improvements in the design and performance of TIG ceramic nozzles. Modern nozzles are engineered with advanced ceramic materials that offer superior thermal resistance and durability. Innovations such as the incorporation of gas lenses have enhanced gas flow dynamics, resulting in better weld quality and reduced gas consumption. Additionally, advancements in manufacturing techniques have allowed for more precise and consistent nozzle dimensions, ensuring optimal performance and reliability. These innovations continue to drive improvements in TIG welding efficiency and effectiveness.

Model Series	Common Models	Compatible Torch Models	Application/Features
10N	10N46, 10N47, 10N48, 10N49, 10N50, 10N51	WP-9, WP-20, WP-25, WP-50	Standard use, suitable for small to medium-sized torches
13N	13N08, 13N09, 13N10, 13N11, 13N12, 13N13	WP-9, WP-20, WP-25, WP-50	Enhanced durability, medium current applications
14N	14N46, 14N47, 14N48, 14N49, 14N50, 14N51	WP-9, WP-20, WP-25, WP-50	High temperature resistance, general purpose
53N	53N88, 53N89, 53N90, 53N91, 53N92, 53N93	WP-9, WP-20, WP-25, WP-50	Lightweight design, suitable for low to medium current welding
54N	54N15, 54N16, 54N17, 54N18, 54N19, 54N20	WP-17, WP-18, WP-26, WP-50	Medium to high current, robust construction
57N	57N75, 57N74, 57N76, 57N77, 57N78, 57N79	WP-9, WP-20, WP-25	Precise gas flow, fine welding work
10N Extended	10N46-XL, 10N47-XL, 10N48-XL, 10N49-XL, 10N50-XL	WP-9, WP-20, WP-25, WP-50	Extended length for better reach, standard use
796F	796F46, 796F47, 796F48, 796F49, 796F50, 796F51	WP-26, WP-50	Heavy-duty applications, high amperage
54N Extended	54N15-XL, 54N16-XL, 54N17-XL, 54N18-XL, 54N19-XL	WP-17, WP-18, WP-26, WP-50	Extended length, medium to high current
130-00	130-00A, 130-00B, 130-00C, 130-00D, 130-00E	WP-17, WP-18, WP-26, WP-27, WP-28, WP-50	Basic ceramic nozzles, general purpose
130-01	130-01A, 130-01B, 130-01C, 130-01D, 130-01E	WP-17, WP-18, WP-26, WP-27, WP-28, WP-50	Standard size, general welding tasks
130-11	130-11A, 130-11B, 130-11C, 130-11D, 130-11E	WP-17, WP-18, WP-26, WP-27, WP-28, WP-50	Longer life, medium current applications
130-07	130-07A, 130-07B, 130-07C, 130-07D, 130-07E	WP-17, WP-18, WP-26, WP-27, WP-28, WP-50	Smaller size, precision welding
141-00	141-00A, 141-00B, 141-00C, 141-00D, 141-00E	WP-9, WP-20, WP-25, WP-50	High heat resistance, special applications

This table lists several common TIG welding ceramic nozzle model series, compatible torch models, and their main applications and features. The choice of the appropriate ceramic nozzle model should be based on the specific requirements of the welding task.

Product Details

Application

High Precision Welding Tig Torch Ceramic Cups Durable 10N Series Extended Ceramic Nozzle

FAQ
Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
