3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
Specifications
Brand Name :
TianYuan
Model Number :
TY-010
Certification :
CE,ISO9000...
Place of Origin :
Made in China
MOQ :
1*20"container
Price :
USD15.7/m2
Payment Terms :
L/C, T/T
Supply Ability :
9000M2/days
Delivery Time :
15-20days
Packaging Details :
1pcs/PE packing /box /wood packing
Application :
Commercial Buildings
Ceiling Tile Type :
Metal Ceilings
Assembly :
Easy to assemble
Panel Thickness :
0.4 - 0.9mm
Surface Treatment :
Powder Coated
Function :
Organizing and storing items
Durability :
High
Maintenance :
Easy to clean
Description

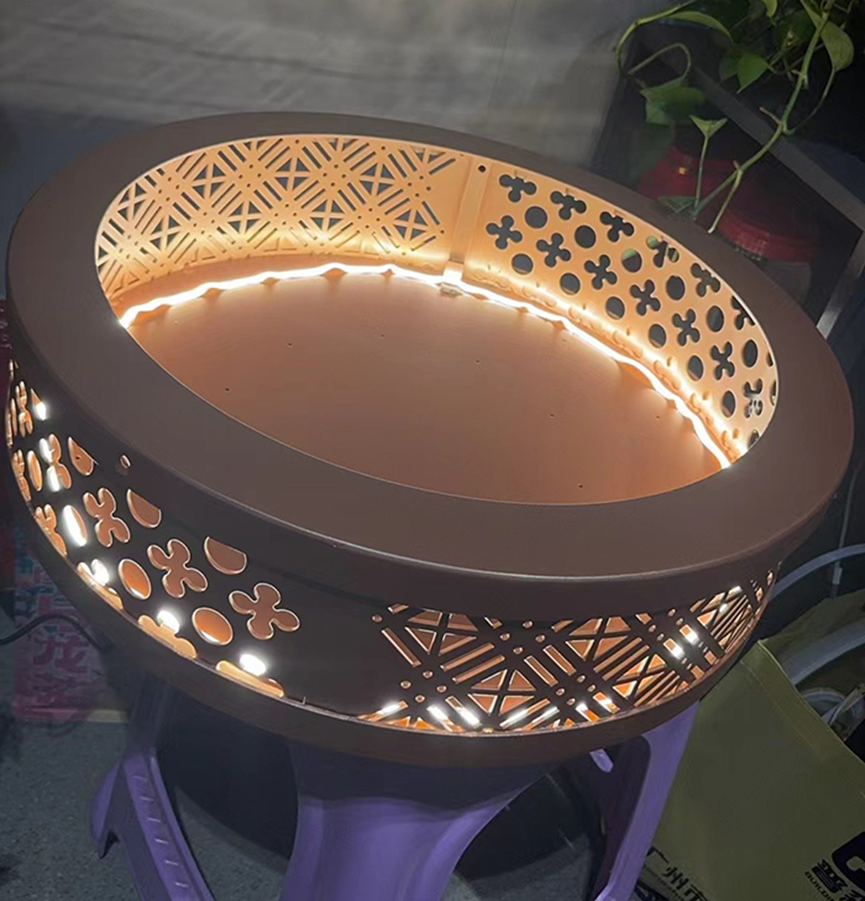

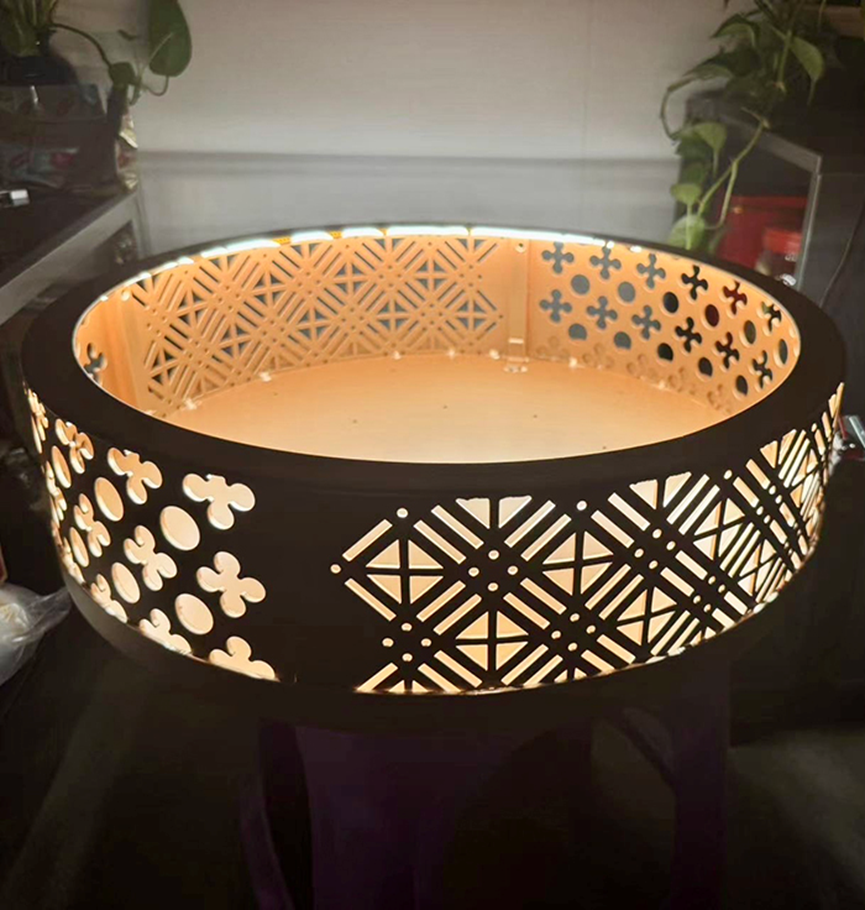

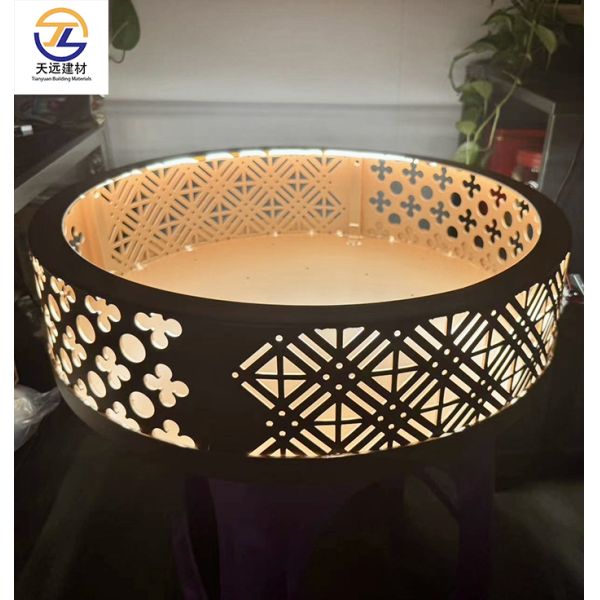

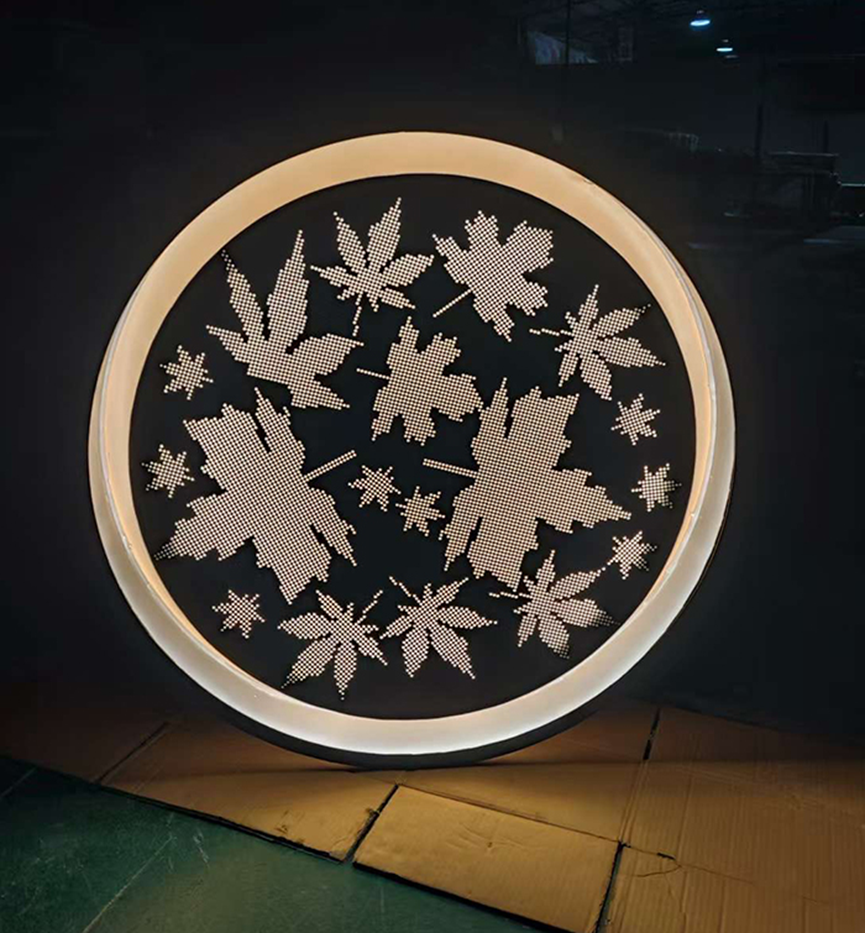

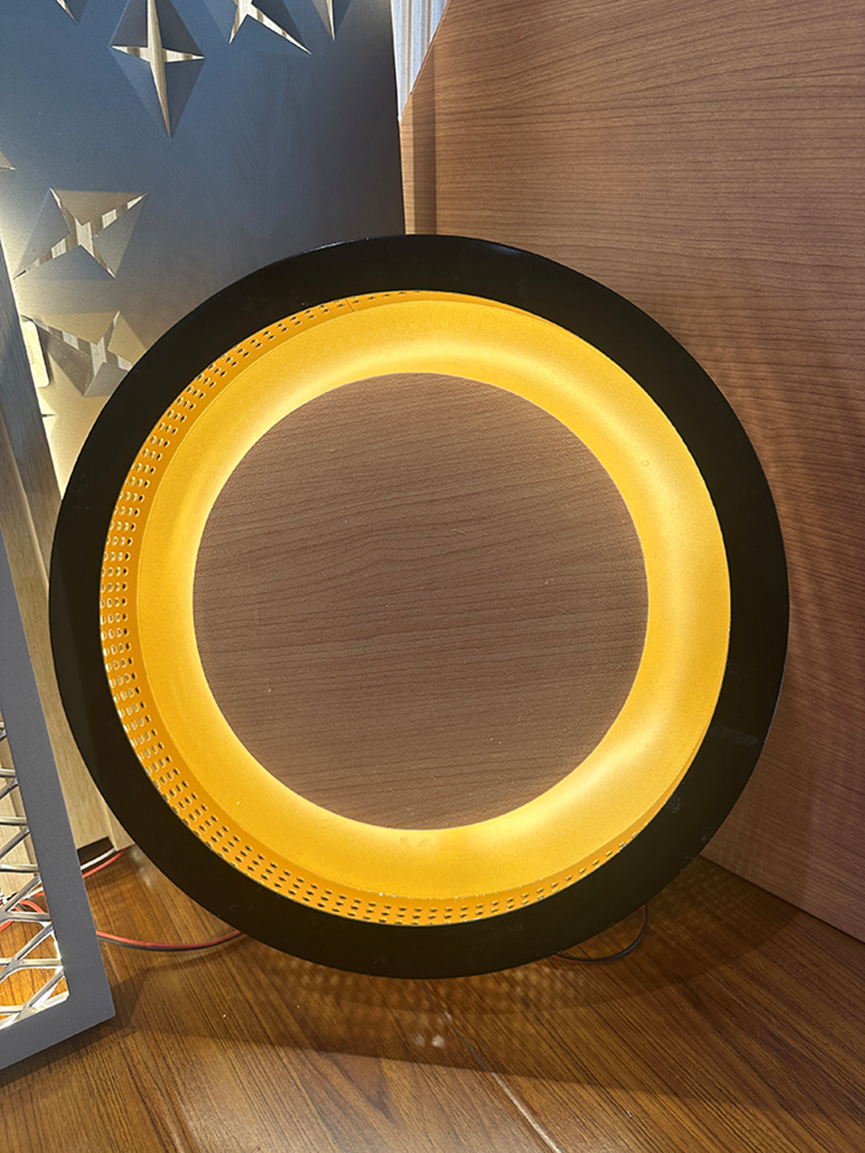

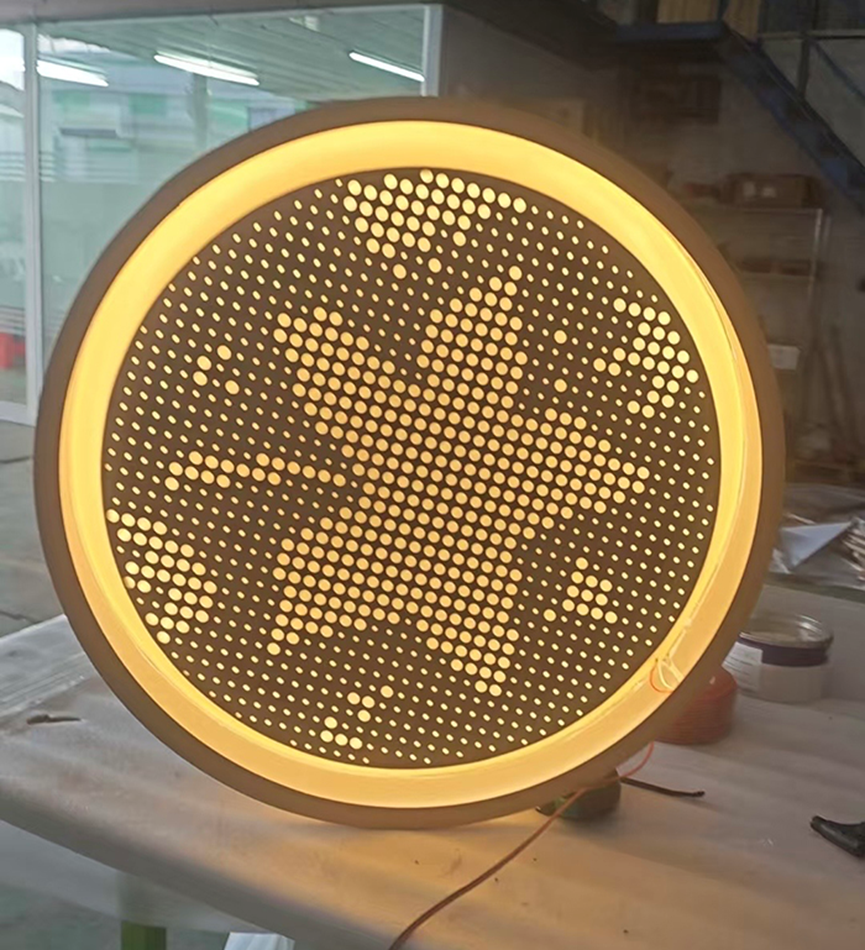

Custom Maple Leaf Pattern Circular Light Box
A perfect blend of decorative art and practical lighting, this custom light box is tailored for restaurants seeking to elevate their ambiance with unique, nature-inspired design. Crafted from high-quality carved aluminum veneer, it combines durability, aesthetics, and customization to meet the specific style needs of dining spaces.
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
Core Advantages
Premium Aluminum Veneer Material
  • Made of 3.0mm (or customizable thickness) high-grade aluminum veneer: lightweight for easy installation, corrosion-resistant for humid restaurant environments, fire-retardant, and weatherproof
  • Aluminum surface is pre-treated with anti-oxidation coating, ensuring long-lasting color retention and resistance to scratches, oil stains, and daily wear
  • Low maintenance requirements ideal for busy restaurant operations
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
Custom Maple Leaf & Circular Design
  • Maple Leaf Pattern: Exquisitely carved via precision CNC technology, the maple leaf motif adds a warm, natural, and inviting vibe to restaurants
  • Perfect for rustic, farm-to-table, or autumn-themed dining spaces with carved details creating soft, diffused light shadows
  • Circular Shape: Soft curves complement various restaurant layouts, avoiding sharp edges for harmonious visual experience
  • Customizable diameter from 30cm to 150cm+ to fit small nooks or large feature walls
  • Full customization options: Adjust leaf size, carving depth, pattern density, or combine maple leaves with brand logos
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
Dual Function: Lighting + Decoration
  • Integrated LED light source: Energy-efficient, low power consumption, long lifespan up to 50,000 hours
  • Provides uniform, eye-friendly illumination for dining tables, bar counters, or accent walls
  • Carved pattern casts artistic light effects to enhance the restaurant's unique style
  • Serves as a statement decorative piece by day and functional light fixture by night
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
Easy Installation & Maintenance
  • Lightweight design reduces installation difficulty with pre-drilled holes and mounting accessories
  • Quick, secure installation with ceiling-mounted or wall-mounted options
  • Removable light cover for easy bulb replacement or cleaning
  • Aluminum material is stain-resistant—simply wipe with a damp cloth for routine maintenance
3.0mm Rose Gold Round Aluminum Single Panel Light Box with Maple Leaf Pattern
Application Scenarios
Ideal for restaurants, cafes, bistros, tea houses, or themed dining venues. Perfect for:
  • Entryway welcome signs
  • Dining area ceiling lights
  • Bar counter accent lighting
  • Private room decorative fixtures
  • Outdoor patio seating illumination
Aluminum Single Panel Specifications
Core Substrate Parameters
Item Specification
Aluminum Alloy Grade 3003-H24 (General Purpose), 5052-H24 (High Corrosion Resistance)
Panel Thickness Standard: 1.5mm/2.0mm/2.5mm/3.0mm; Custom Range: 1.0mm-4.0mm
Reinforcement Bar 2.0mm-3.0mm Thick Aluminum Profile, Spacing 300mm-600mm
Back Panel (Optional) 0.8mm-1.2mm Thin Aluminum Panel (Enhanced Flatness/Insulation Performance)
Coating Process Parameters
Coating Type Performance Features Film Thickness Service Life
PVDF Fluorocarbon Coating Weather-resistant, UV-proof, corrosion-resistant, long-lasting color retention Primer + Topcoat + Clear Coat: 40-60μm 15-20 Years
PE Polyester Coating Cost-effective, rich color options; Suitable for interior and light exterior applications Primer + Topcoat: 30-45μm 5-10 Years
Powder Coating Eco-friendly, odorless, wear-resistant and scratch-proof 40-80μm 8-12 Years
Size & Shape Parameters
Item Specification
Standard Size Range Width: 1000mm-1500mm, Max Custom Width: 3000mm; Height: 2000mm-3000mm, Max Custom Height: 6000mm
Tolerance Dimension Tolerance: ≤±2mm/m; Flatness Tolerance: ≤1mm/m
Shape Types Flat, Concave-Convex, Curved, Special-shaped (Customized per Technical Drawings)
Surface Treatment Parameters
Treatment Type Process Features Application Scenarios
Brushed Finish Matte texture, anti-fingerprint, smooth touch Interior walls/ceilings, high-end venue decoration
Wood Grain Transfer Realistic wood texture, eco-friendly, non-toxic, natural pattern presentation Wood-like decoration, hotel/mall renovation projects
Stone Grain Transfer Realistic stone texture, scratch-resistant, easy to clean and maintain Exterior dry-hanging systems, stone-like decoration projects
Anodizing Strong metallic texture, excellent corrosion resistance High-end building curtain walls, public facility decoration
Core Performance Parameters
Performance Index Standard Requirement
Fire Rating Class A2 Non-combustible (Complies with GB 8624-2012/EN 13501-1 Standards)
Weather Resistance No cracking or discoloration under -40℃~+80℃ high-low temperature cycle testing
Corrosion Resistance Neutral Salt Spray Test: ≥1000h (PVDF Coating), ≥500h (PE Coating)
Wind Load Resistance Withstands wind pressure ≥2.5kPa (Suitable for curtain walls of buildings below 100m)
Environmental Standard Formaldehyde Emission ≤0.1mg/m³ (Complies with E0 Grade, GB/T 18585-2017 Standard)
Customization Notes
  • Color Customization: Pantone/RAL color matching supported; Sample proofing service available upon request
  • Hole Customization: Round/square/louver holes customizable (Diameter: 3mm-20mm, Spacing: 10mm-50mm) based on installation requirements
  • Installation Method: Standard dry-hanging system (keel connection); Welding/snap-on installation structures customizable
