Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Specifications
Brand Name :
TianYuan
Model Number :
TY-010
Certification :
CE,ISO9000...
Place of Origin :
Made in China
MOQ :
1*20"container
Price :
USD15.7/m2
Payment Terms :
L/C,T/T
Supply Ability :
9000M2/days
Delivery Time :
15-20days
Packaging Details :
1pcs/PE packing /box /wood packing
Product Material :
Aluminum Alloy
Product Color :
White
Product Processes :
Perforation
Surface Treatment :
Fluorocarbon Paint, Wood Grain, Stone Grain, Bamboo Grain, Polyester Paint, Powder Coating, Anodizing, UV Digital Printing (All Customizable)
Description
Perforated Aluminum Panels for Architectural Applications
Perforated aluminum veneer is a modern architectural material that combines decorative appeal with functional performance. Featuring lightweight construction, high strength, custom design options, and multi-functional benefits, it has become essential in architectural decoration. Suitable for unique aesthetic requirements and functional applications including acoustics and ventilation.
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Specifications & Materials
Standard Specifications
  • Sheet thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm (most common); up to 5.0mm for special applications
  • Hole diameter options:
    • Ultra-micropore: 0.4~1.0mm (sound absorption)
    • Micropore: 1.0~3mm
    • Medium pore: 3.0~10mm (decoration & ventilation)
    • Large pore: 10~200mm (special decorative effects)
  • Maximum size: Approximately 1500×4000mm (subject to equipment limitations)
  • Perforation rate: 15%-70% (adjustable for optimal light transmission and ventilation)
Material Options
Primary aluminum alloy grades: 1100, 3003, 3004, 3005, 5052, 5754. Mostly H24 temper for optimal strength and processability.
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Pricing Reference
Type Price Range (RMB/㎡) Notes
Standard perforated aluminum veneer 150~300 Standard specifications, regular hole patterns, conventional coating
Custom perforated aluminum veneer 300~600+ Special hole patterns, complex designs, fluorocarbon coating
Sound-absorbing perforated aluminum veneer 400~800 Equipped with sound-absorbing layer for acoustic applications
Extra-large/special-shaped perforated aluminum veneer 600~1200+ Oversized dimensions or custom shapes with high processing difficulty
Prices vary based on material grade, thickness, hole specifications, surface treatment, processing complexity, and brand.
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Surface Treatments
Balancing aesthetic appeal with weather resistance for various applications.
PVDF Fluorocarbon Coating
Preferred for outdoor applications. Coating thickness ≥60μm, UV-resistant, salt spray-resistant, and fade-resistant with 20-30 year service life. Complies with AAMA 2605 standards.
Powder Coating
Suitable for indoor and mild outdoor environments. Extensive color options (Pantone customizable), eco-friendly (no VOCs), scratch-resistant with 15-20 year service life. Complies with AAMA 2603 standards.
Wood Grain/Stone Grain Transfer
Heat transfer process creates realistic textures, ideal for natural and new Chinese-style designs. Weather-resistant (PVDF primer recommended for outdoor use).
Anodizing
Natural metal colors (silver, gold, black), high hardness (≥HV300), corrosion-resistant, perfect for industrial and minimalist styles.
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
Application Scenarios

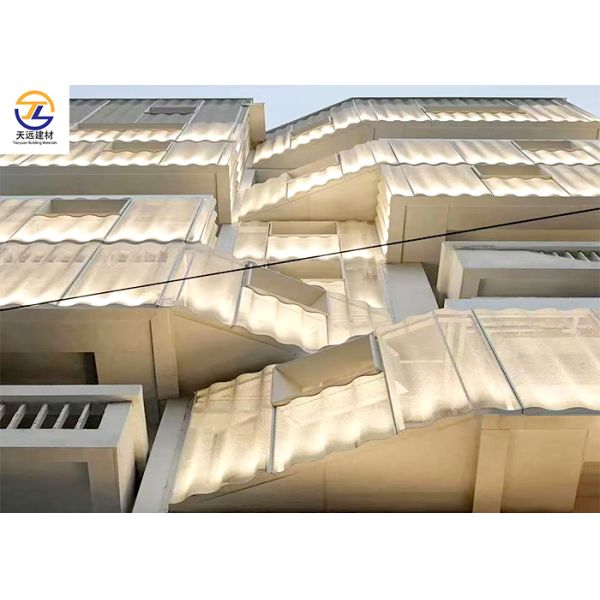

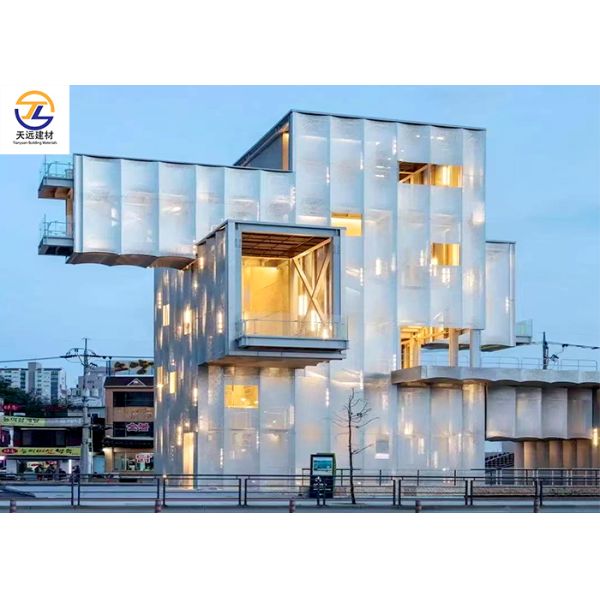

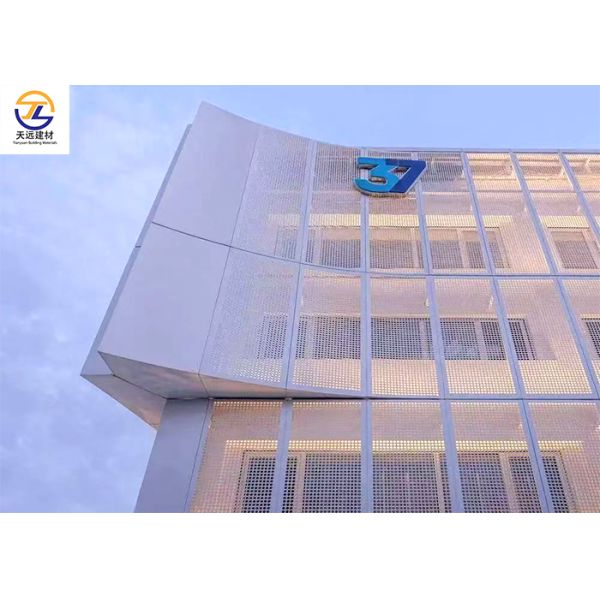

Building Facades & Curtain Walls
Creates unique light and shadow effects with dynamic aesthetics that change with lighting conditions. Provides sunshade and heat insulation, reducing building energy consumption. Ideal for high-rise buildings including office towers, hotels, and commercial complexes.
Interior Decoration
  • Ceilings: Suitable for large spaces like shopping malls, airports, and subway stations, combining aesthetics with acoustic functionality
  • Wall cladding: Perfect for hotel lobbies and corporate reception areas to create distinctive spaces
  • Partitions/Screens: Balances privacy and openness with controlled light transmission
Functional Applications
  • Acoustic engineering: Ideal for conference rooms, concert halls, and venues requiring superior sound quality
  • Sunshade systems: Controls light incidence and regulates indoor temperature
  • Ventilation: Integrated ventilation and decoration solutions for large public spaces like airports and stations
  • Billboards/Storefronts: Unique hollow design enhances commercial signage appeal
Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
