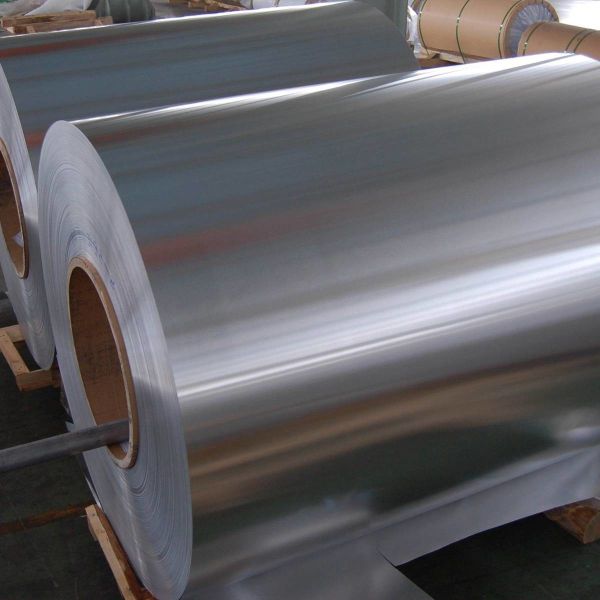

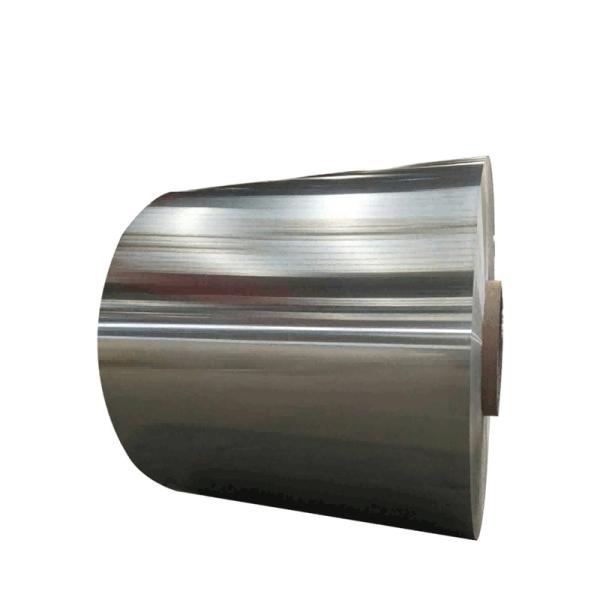

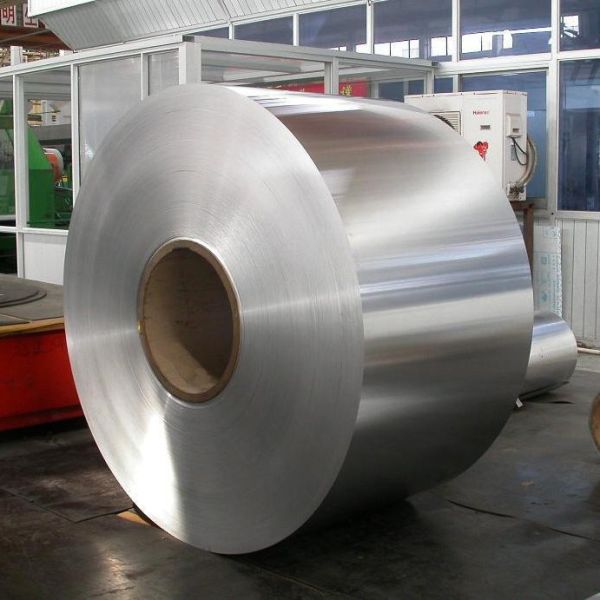

ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation
Specifications
Brand Name :
JERO
Model Number :
JA90
Certification :
ABS DNV LR KR NK
Place of Origin :
China
MOQ :
7 tons
Price :
3000-3200usd/ton
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
800 tons per week
Delivery Time :
25-30 working days
Packaging Details :
seaworthy standard export packages
Type :
5083 Aluminum Coil
Standard :
ASTM B209
Alloy :
5083
Temper :
O/H111/H116
Width :
1000-2900mm
Trade Terms :
FOB/CIF/CFR/EXW
Description

ASTM B209 5083 Aluminum Coil Aluminum Roll Used For Transportation

5083 aluminum sheet belongs to Al-Mg series alloy. It is the highest strength corrosion-resistant

alloy among practical non-heat-treated alloys. And it is suitable for welding structures. Also, it is

worth mentioning that 5083 aluminum sheet has good resistance to seawater and low-temperat

-ure characteristics. Therefore, 5083 aluminum sheet has become the most suitable choice for

marine-grade aluminum.

Mechanical Properties

Temper

Tensile Strength

(MPa)

Yield Strength

(MPa)

Elongation

(%)
O 270-345 125-215 14-18
H111 270-345 125-215 14-18
H116 290-360 215-290 10-14

Key Advantages

♦ Marine-Grade Performance

Saltwater corrosion resistance 3x better than 5052 alloy

Approved for shipbuilding by ABS/DNV/GL classifications

♦ Structural Efficiency

Specific strength comparable to mild steel at 1/3 the weight

Fatigue life 50% longer than 6061-T6 in dynamic loads

♦ Fabrication Benefits

Welding: No preheat required for thicknesses ≤25mm

Forming: Minimum bend radius = 1.5t (H111 temper)

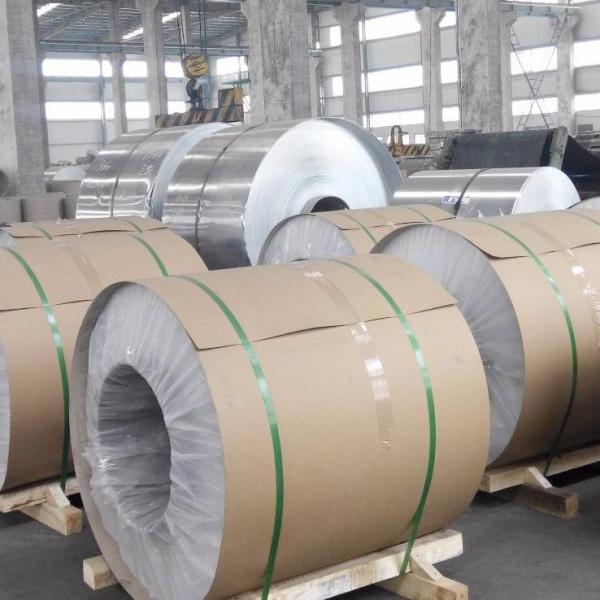

Our Samples in the Workshop:

Alloy/Temper Size (mm) Description
6016-F 8X2608xC 26.5ton the Heaviest Hot-Rolled Coil
6061-F 1.5x1000xC the Thinest Hot-Rolled Coil
3104-H19 0.265x1640xC 3104 Can Body Material Coil
2024-T451 2.0x1850xC 2024 Aluminum Alloy for Aviation Application
5454-H32 8x2800xC 2800mm the Widest Hot-Rolled Coil
3004-H24 0.7x2650xC 2650mm super Wide Cold-Rolled Coil

ASTM B209 5083 Aluminum Coil , Aluminum Coil Stock For Transportation

Our company advantages

Technological & Production Strengths:

R&D Capabilities: Own a national-level corporate technology center and contributes to industry

standards.

Production Scale: We had an annual capacity exceeding 0.9 million tons of aluminum large-scale

rolling mills.

Production Ability: We can produce the Aluminum Plate / Coil for automobile, railway transportation,

marine, aerospace etc fields, and obtained the relevant certification.

Our factory own the world advanced equipments, include:

Code Name Brand
A aluminum ignot melting furnace GAUTSCHI (Switzerland)
B 4 continuous hot rolling mills SMS Group (Germany)
C 2800mm width single stand cold rolling mill SMS Group (Germany)
D all automatic three-dimensional elevated warehouse Dematic (USA)
