Compression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb Core
Compression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb Core
Compression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb Core
Compression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb Core
Specifications
Brand Name :
WDF
Model Number :
WDF-AHC
Certification :
ISO
Place of Origin :
Guangdong China
MOQ :
200sqm
Price :
10-30usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4000 Square Meter/Square Meters per Day aluminum honeycomb core
Delivery Time :
7-20 working days depending on qty
Packaging Details :
standard Seaworhty pallet or upon customer request
Shape :
Rectangle, Triangle, Rhombus, Trapezoid
Node Size: :
1mm to 20mm, Customized Made
Specification :
dia 50mm/60mm/100mm
Expanded Size :
600*600mm, 1220*2440mm, Customized Made
Chemical Finish :
Paingting, Powder, Anodized, Electrophoreses
Foil Thickness :
0.04mm to 0.15mm, Customized Made
Supplied form :
expanded or unexpanded
Material :
Aluminum Alloy
Description

high Strength Aluminum Honeycomb Sheets Fireproof Aluminium Honeycomb Cores

Basic Information:

3000 Series Aluminum Honeycomb is a lightweight honeycomb core that offers superior strength and corrosion resistance to meet

a broad range of demanding applications. It is a high performance, low-cost structural core material that is perfect for architectural,

transportation, marine, and other industrial applications.

Mechanical properties:
• Lightweight
• Stiffness
• Fire resistance
• Compression, shear and corrosion resistance flatness

Specification:

WDF produces mainly two types of aluminum honeycomb core: Micro-aperture aluminum core and Normal aluminum core.

Supplying forms:

1.Expanded or unexpanded

2.Full blocks or cut slices

3.Perforated or imperforated

4.Corrosion treated or untreated

5.Die cut size or typical products

Compression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb Core

Our aluminum honeycomb is adhesive-bonded of the aluminum foil, which produces one of the highest strength and the highest

surface-to –volume ratio of any structural material. Our aluminum honeycomb is made from 3003H18 and 5052H18 aluminum alloy foil.

Product Name
aluminum honeycomb core
Material type
A3003H18 / 5052H18

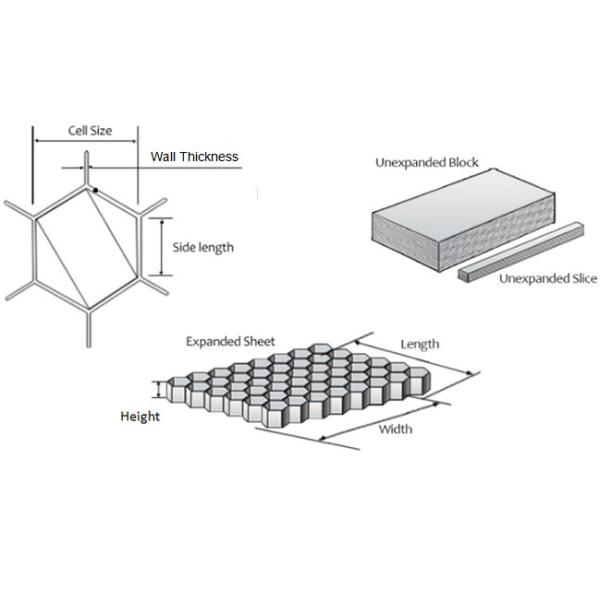

Cell side length (mm)
5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.5, 1.83, 2, 2.5, 3, 4, 5, 6, 7.5, 10, 12, 15 mm
Foil thickness
0.025-0.08 mm, 0.1mm
Height/Sheet Thickness
1.5mm to 500mm
Max Sheet Sizes
1700mm (L) x 8000mm (W)
Standard
CN, BS, ASTM
Capacity
50K m2/month

Compression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb Core

Aluminium honeycomb can be used in a virtually unlimited number of applications. Some of the most widespread applications are as follows:

Aluminum honeycomb core application
Rail
Inudstrial
·Doors
·Heating
·Floors
·Ventilation
·Galley & Sanitary Modules
·Flow Straightening (Air & Liquid)
·Energy Absorbers
·Light Diffusers
·Furniture
·Electromagnetic Shielding
·Walls
·Sacrificial Beds (Laser & Water jet)
·Dividing Panels
Marine
Automotive
·Interior Panels & Partitions
·Commercial Vehicles
·Furniture
·Military Vehicles
·Ceiling & Flooring Panels
·Access Ramps
·Hulls & Bulkheads
·Caravans and Motorsport
·Doors
·Energy Absorbers
Construction/Architecture
Wind Turbines
·Building Facades
·Rotor Blades
·Ceiling and Flooring Panels
·Turbine Cladding
·Clean Rooms
·Mould Construction
·Furniture

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.

Compression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb CoreCompression Lightweight Metal Honeycomb Panels 0.15mm Aluminium Honeycomb Core
