Specifications
Model Number :
4mm NCP - PE/PVDF
Price :
20-35 USD / SQM
Packaging Details :
WOODEN PACKAGE
Payment Terms :
L/C,T/T
Place of Origin :
China
Delivery Time :
10-15 WORKING DAYS
Brand Name :
OEM/KINGWINS
MOQ :
500 SQM / PER COLOUR
Supply Ability :
3000 SQM PER DAY
Description

The aluminum non-combustible panel is a lightweight, durable, and highly rigid aluminum decorative panel perfect for all uses in architecture, transportation, furniture, and landmark buildings. It works great for both exterior and interior wall walls or home decoration Our aluminum panels are 2.5 to 6.0 mm thick and consist of a non-combustible metal core laminated between two layers of different thicknesses of aluminum skin. It's reached the A2 fire level, passed ASTM-E84, EN13501, the AS1530 fire test, and got certified.

PARAMETERS

4mm PVDF PE Aluminum Core Panel

  • Our NCP (Aluminum Non-Combustible Panel) is a 4mm thick Aluminium Core Panel that is completely non-combustible and suitable for internal and external applications where a non-combustible facade solution is required. It also has got certificates from Australian Standards, European Standards, and US Standards.

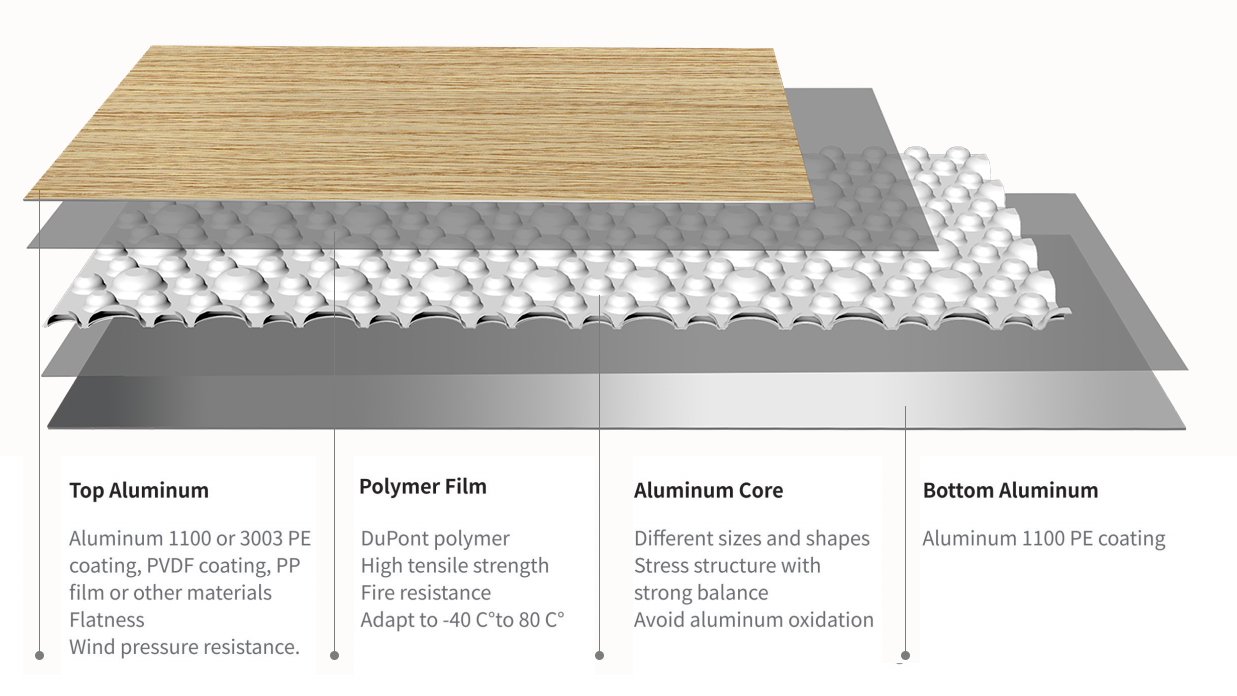

  • Our NCP is made of high-quality aluminum and has an 'egg carton type’ aluminum core that separates the shell. Unlike other non-combustible and fireproof panels, we does not require the use of mineral core fillers to achieve fire resistance, so it is lighter in weight and has comparable or better structural strength.
  • During the manufacturing process, we precoat a 3-coat PVDF coating to the surface. And we offer a wide range of standard colors and can also provide customized coatings that match specific color requirements.
PRODUCT SPECIFICATION
ITEM DESCRIPTION
Product Usage Fully non-combustible and suitable for external applications
Material Aluminum alloy 5052, 3003,1100 etc.
Fire Behaviour A2 Fire Safety (EN 13501-1:2018)
Regular Size 1250x2500mm,1550x3200mm
Standard Width 1250 mm / 1550 mm
Length Max 6000 mm
Overall Thickness Regular thickness: 4.0 mm (2.5 - 6.0 mm available)
Top Aluminum Thickness 0.5mm - 0.7mm
Weight 4.54kg / ㎡ (in 4.0 mm thickness)
Surface Treatment PVDF, FEVE, PE Anodizing, Spectrum etc
PVDF/FEVE Color Solid color, Metallic color, Wood color, Stone color, Brush
Warranty 15 years
Applicable Temperature -40℃ to 80℃
Non-Combustible Test AS 1530.1 / BS467 / EN13501 / ASTM E84
Package wooden pallet,8 pallets / 20GP,16 pallets / 40GP
KEY BENEFITS
  • Passed A Grade Fireproof test and SGS test
  • Environmentally Friendly
  • Easy-to-install/Quick Installation
  • High Quality
  • Zero Formaldehyde
  • Recyclable
  • Various Color Choices Meeing All Clients'options
  • Robust Durability
  • Full Machinability
COLOUR CHART
4mm PVDF PE Aluminum Core Panel
4mm PVDF PE Aluminum Core Panel
4mm PVDF PE Aluminum Core Panel

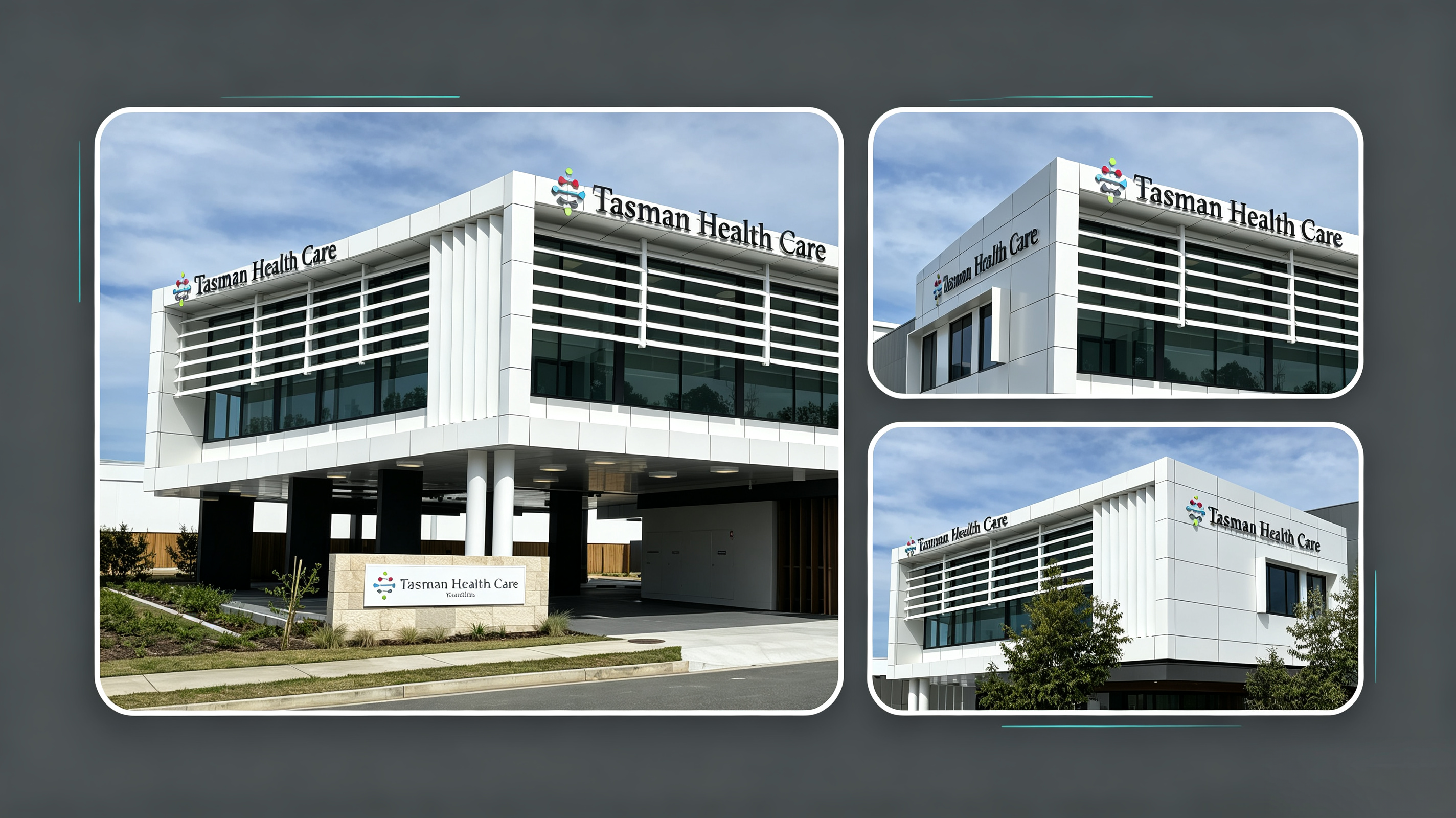

CASE SHARE

4mm PVDF PE Aluminum Core Panel
