Marble Aluminum Composite Panels (ACPs) are a highly popular and versatile building material that combines the aesthetic appeal of natural marble with the practical benefits of modern aluminum composite technology.

Marble ACPs are a type of cladding panel consisting of:

Two Thin Aluminum Sheets: Typically 0.2mm to 0.5mm thick, coated with a durable PVDF (Polyvinylidene Fluoride) or FEVE paint.

A Marble-Veneer Layer: This is not solid stone. It is either:

A Thin Slice of Real Marble (0.5-1mm): Bonded to a carrier material.

A High-Fidelity Photographic Print (on a PE core): A digital image of marble laminated under a clear protective film. This is the most common and affordable type.

A Core Material: Usually polyethylene (PE) or a fire-resistant mineral core (like FR, A2).

The layers are bonded together under high pressure and temperature in a continuous process.

Key Advantages & Benefits

1. Aesthetic Appeal:

• Offers the luxurious, timeless look of natural marble in a wide variety of colors and patterns (Carrara, Calacatta, Nero Marquina, etc.).

• Provides visual consistency across large facades, which is difficult to achieve with natural stone due to vein variations.

2. Lightweight:

• Only about 1/4 the weight of natural marble. This drastically reduces the load on a building's structure, simplifies logistics, and makes installation faster and cheaper.

3. Excellent Workability:

• Can be easily cut, bent, folded, drilled, and routed using standard woodworking and metalworking tools. This allows for creative designs, curved surfaces, and complex architectural details.

4. Durability & Weather Resistance:

• The aluminum surface and protective coating provide excellent resistance to UV rays, fading, corrosion, and harsh weather conditions.

• Non-porous surface resists staining and is easy to clean.

5. Cost-Effective:

• Significantly lower material cost than real marble.

• Lower installation costs due to lighter weight and easier handling.

6. Safety (with Fire-Rated Core):

• When specified with a mineral core (e.g., A2 grade), it achieves high fire safety ratings, meeting stringent building codes for high-rise and public buildings.

Primary Applications

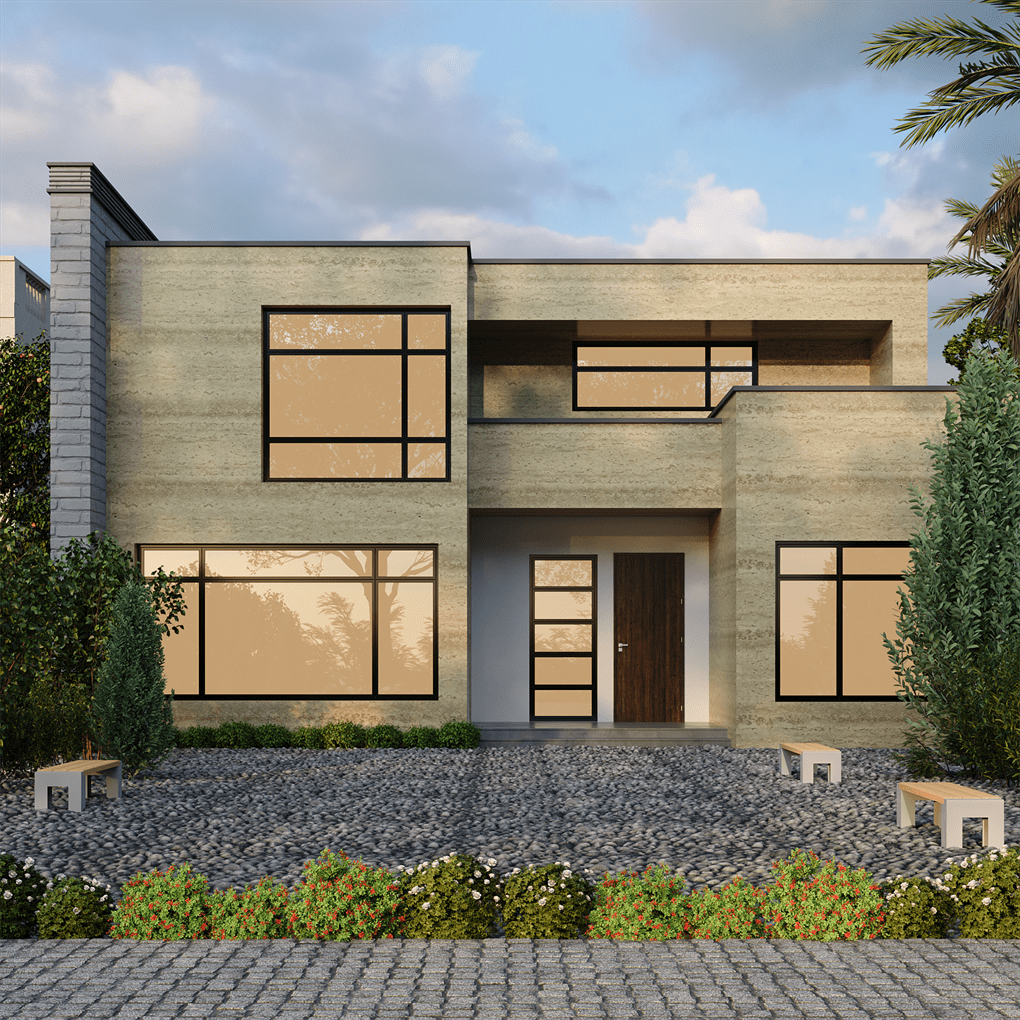

• Building Facades / Curtain Walls: The most common use, giving a premium look to offices, hotels, and residential towers.

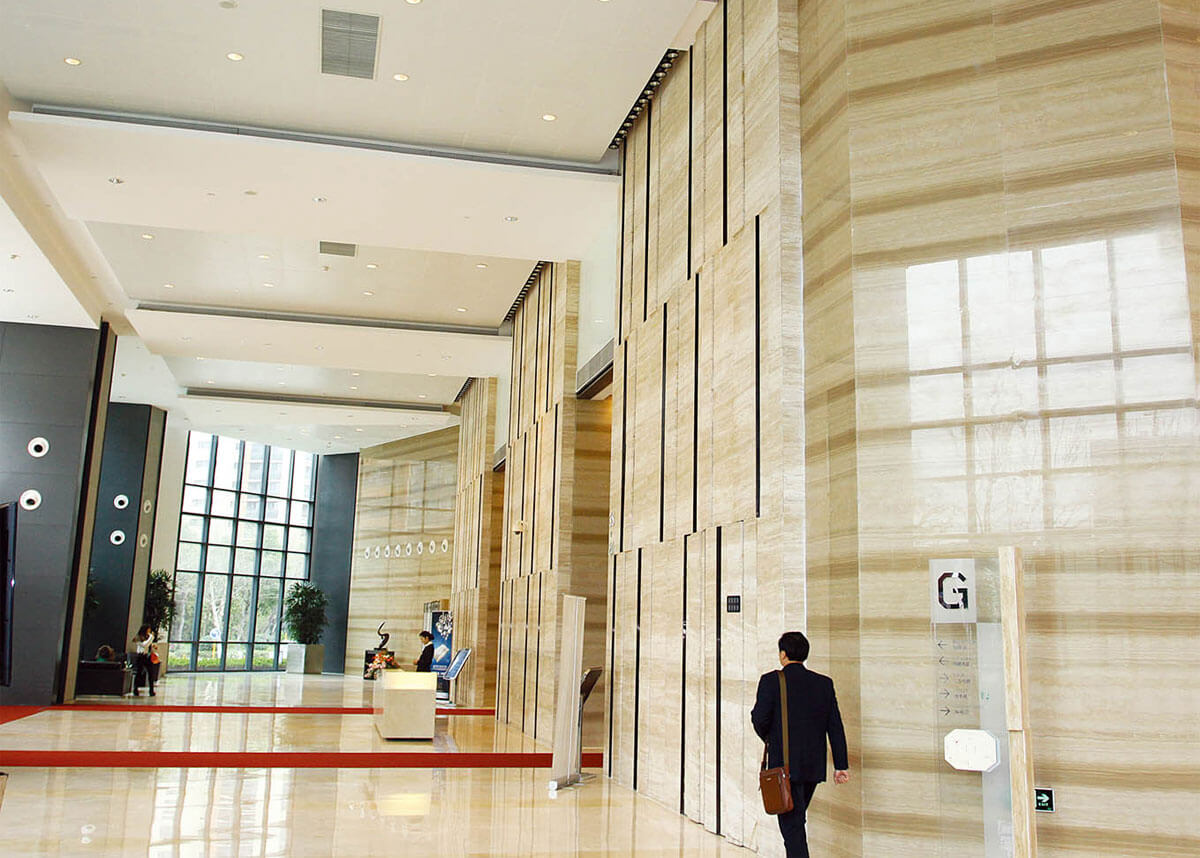

• Interior Wall Cladding: Feature walls in lobbies, reception areas, luxury retail stores, and bathrooms.

• Column Wraps and Soffits.

• Signage and Branding Elements.

• Renovation Projects: Ideal for retrofitting old buildings with a new, modern appearance without heavy structural reinforcement.

Important Considerations & Potential Drawbacks
Perceived Authenticity: Purists may prefer the unique, cold feel and depth of real stone. The print version can look flat up close.

Fire Performance (Critical): Always check the core material. Standard PE cores are combustible. For most exterior and interior applications, specify Fire-Rated (FR) or non-combustible (A2) cores to meet building safety regulations.

Impact Resistance: While durable, the aluminum skin can dent upon severe impact. Real marble can chip or crack.

Quality Variation: The quality of the print, the protective coating, and the adhesives used can vary greatly between manufacturers. Opt for reputable suppliers.

Long-Term Fading: While UV-resistant, lower-quality printed panels may experience some fading over decades of direct sun exposure. High-quality PVDF-coated panels offer superior color retention.

Our Main Related Products

Packing and Shipping:

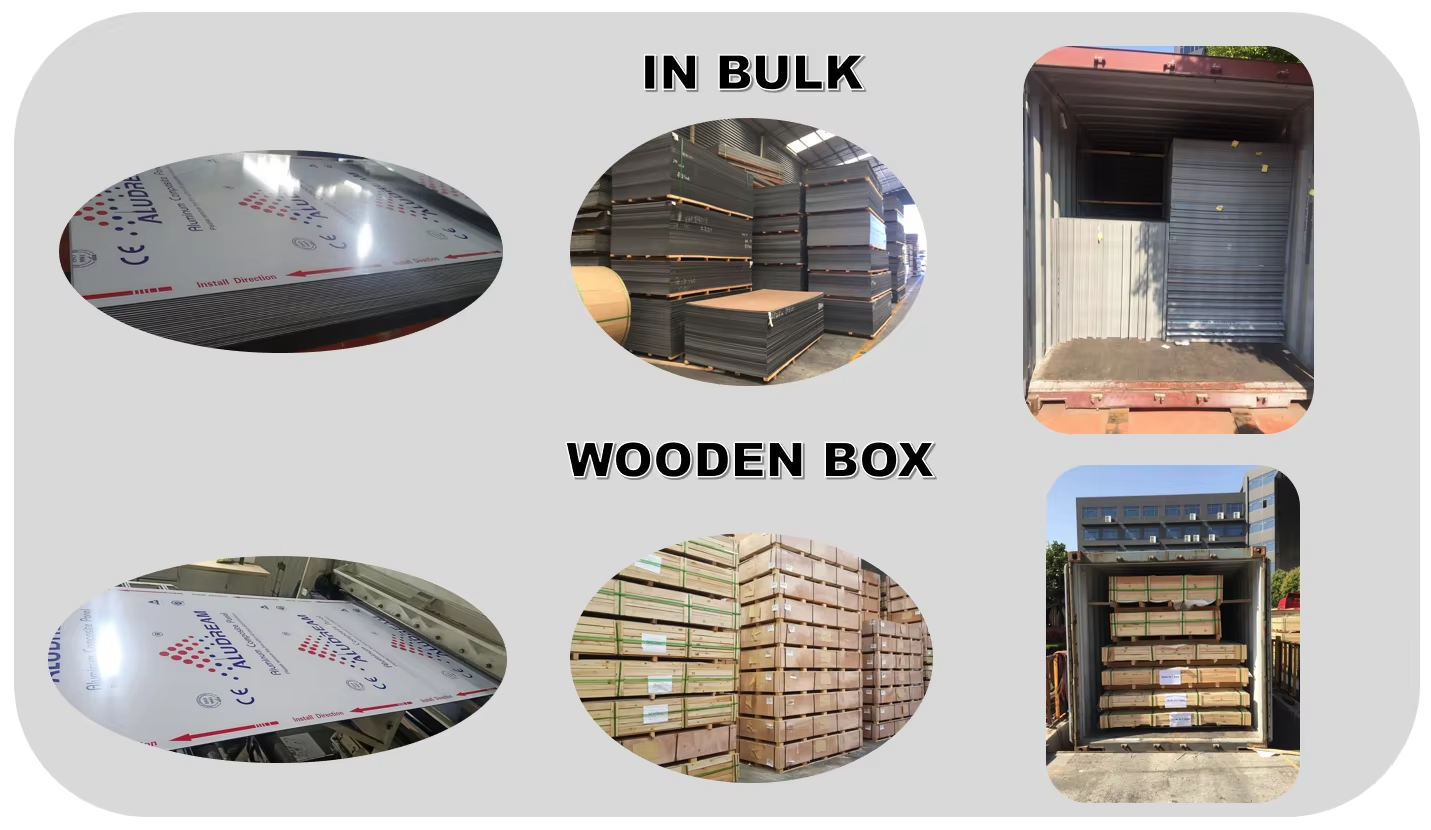

Product Packaging for Aluminum Composite Panel:

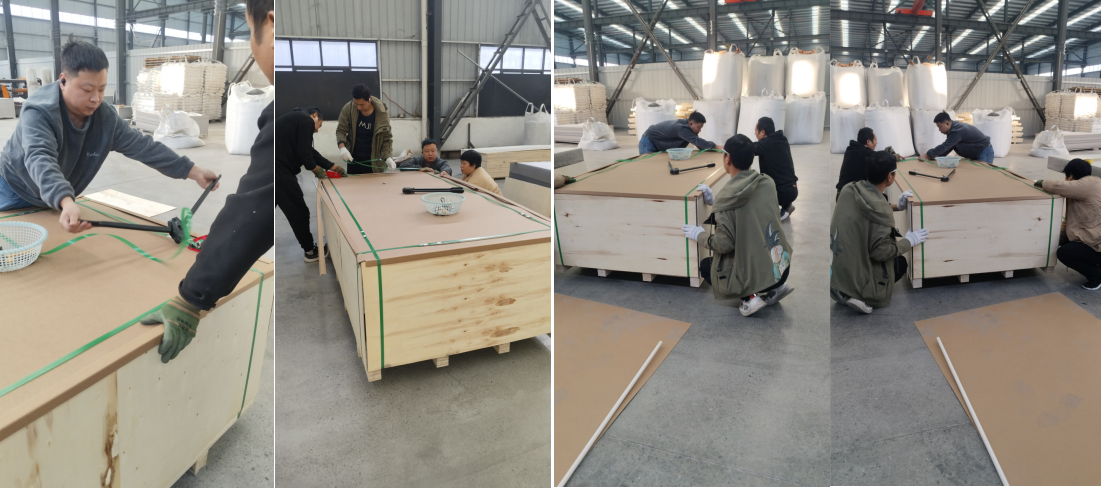

The Marble Aluminum Composite Panels are carefully packaged to ensure they arrive in perfect condition. Each panel is wrapped in protective film and then stacked and securely packed in strong cardboard boxes. The corners and edges are reinforced to prevent any damage during transit.

Shipping Information:

Our Aluminum Composite Panels are shipped via a reliable courier service to ensure safe and timely delivery. We work closely with our shipping partners to track and monitor each shipment to provide you with accurate delivery estimates. Once your order is dispatched, you will receive a tracking number to monitor the progress of your delivery.
