Specifications
Brand Name :
Alushang
Model Number :
ALVC0014
Certification :
ISO14001
Place of Origin :
China
MOQ :
300meter square
Price :
negotiable DOLLARS +square meter
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
13-15 days
Delivery Time :
7-12days
Packaging Details :
film and wooden package
Warranty :
10-20 Years Gurantee
Customrized :
SUPPORT
easy to clean :
yes
Design Style :
Modern
Thickness :
2.0mm
Lightweight :
light than normal material
Application :
Exterior Wall Cladding etc.
Material :
Aluminum
Alloy :
Yes
Fire rate :
A2 class
Description

  1. Description

What is fireproof aluminum-plastic panel?
It is an aluminum composite panel that achieves a specific fire resistance grade through special design and material formula. Its core objective is to prevent the spread of flames, reduce smoke production, and not release toxic substances.

A2 Fire Aluminum Composite Panel Fire Resistant Acp Panels Cladding For High Rise Buildings

Core features and advantages
Life safety: Buying precious time for personnel evacuation and fire fighting.

Compliant with regulations: Meets the mandatory requirements of most of the world's strict building regulations.

Limit the spread of fire: Effectively prevent the vertical and horizontal spread of flames on the building facade.

Low smoke and non-toxic: High-quality fireproof boards produce low smoke during a fire and do not release highly toxic gases such as cyanide.

Maintain integrity: It is less likely to collapse as a whole in a fire, reducing secondary injuries.

A2 Fire Aluminum Composite Panel Fire Resistant Acp Panels Cladding For High Rise Buildings

ategory Specification Details / Common Options
Basic Structure 3 Layers Top aluminum sheet + Fireproof core + Bottom aluminum sheet
Fireproof Core Type A Grade (Best): Mineral Rock Wool
B1 Grade: Fire-Retardant (FR) Compound		 A Grade does not burn.
B1 Grade is slow to burn.
Total Thickness Panel Thickness 3mm, 4mm, 5mm, 6mm (Most Common)
Aluminum Thickness Per Face Sheet 0.4mm, 0.5mm (Standard)
0.7mm, 1.0mm (Heavy Duty)

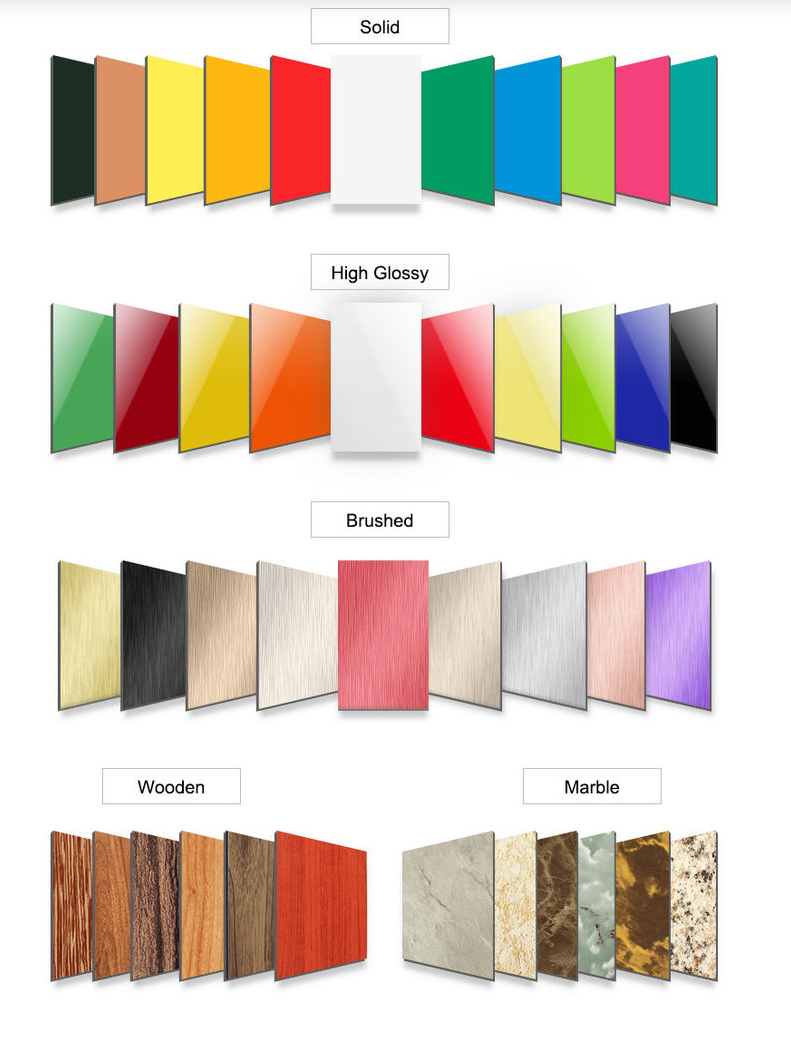

Surface Coating Outside Face PVDF Fluorocarbon (Best for outdoors)
or FEVE / PE Coatings
Standard Panel Size Width x Length 1220mm x 2440mm (4ft x 8ft)
1250mm x 3050mm
1500mm x 4000mm
Fire Rating (Safety) Performance Level A2 (Non-combustible)
B1 (Flame-retardant)
Must have official test certificate
Key Features Strength & Weather - Strong & lightweight
- Good for bending/shaping
- Long-lasting color (if PVDF)
- Low smoke in fire (Good quality core)
Main Uses Application Building exterior walls (curtain walls)
Signage & Interior walls (thinner panels)
Renovation projects

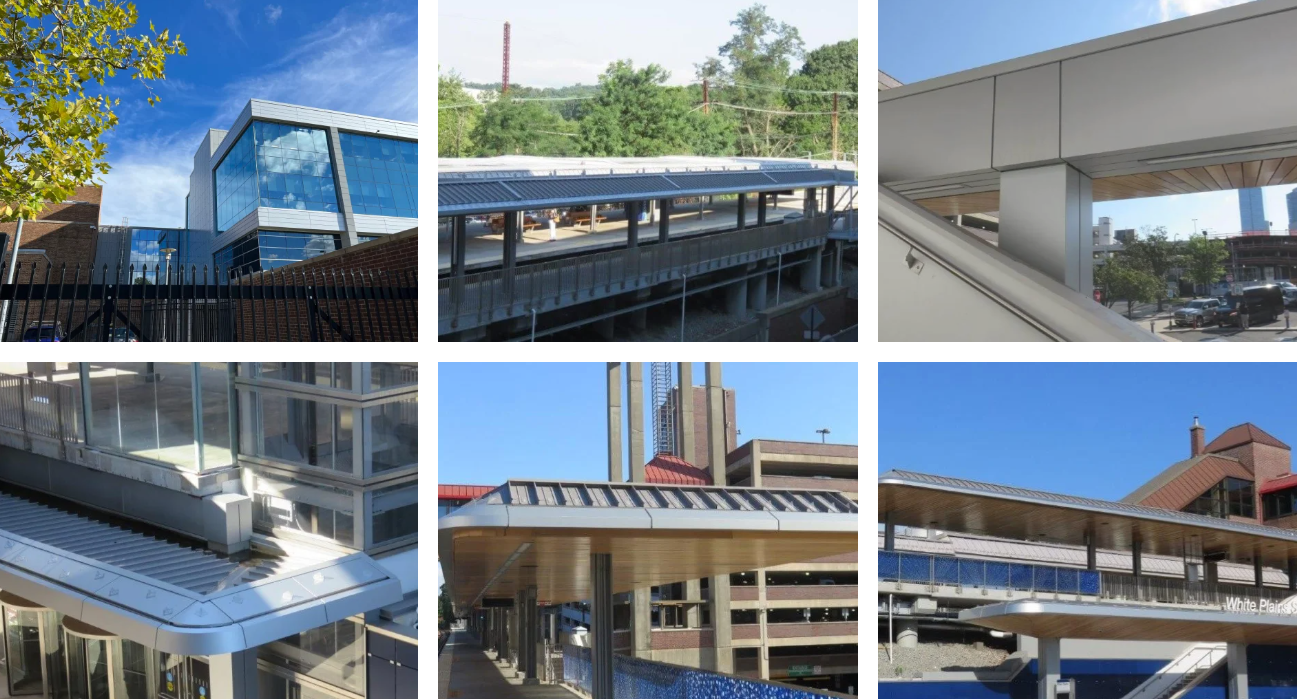

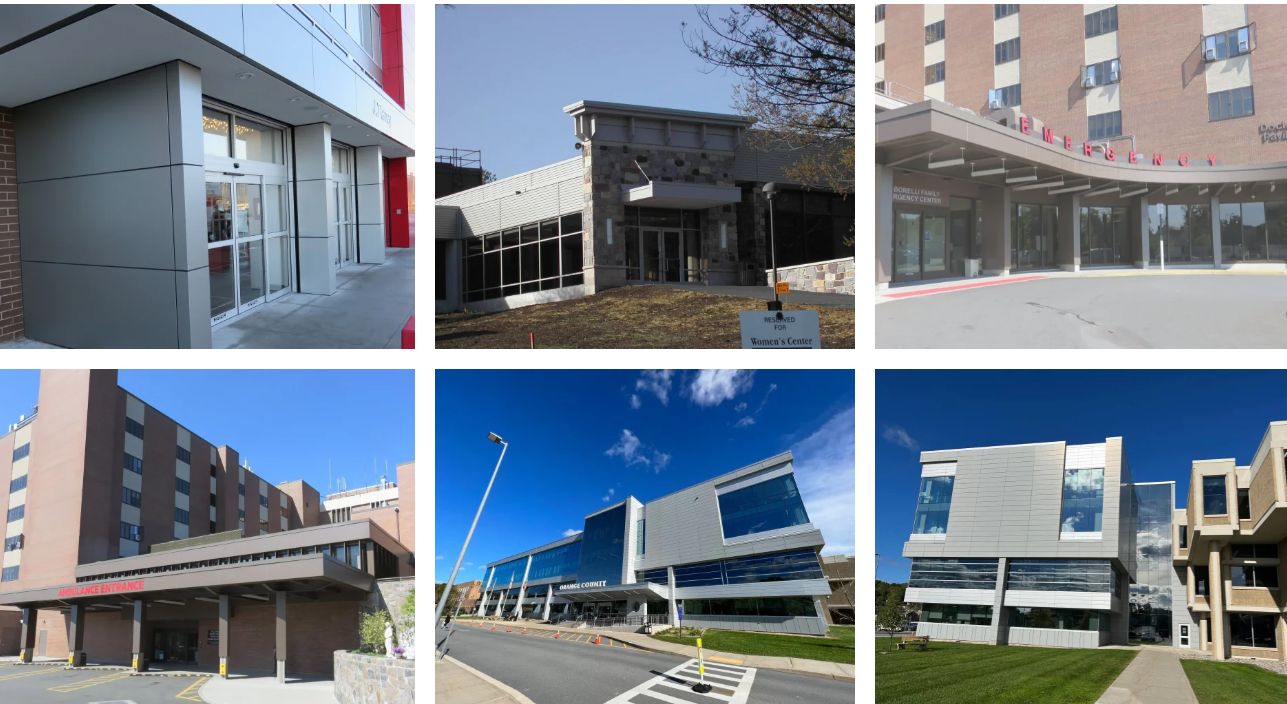

Key application fields
High-rise and super high-rise building curtain walls (mandatory requirements by regulations)

Public transportation hubs (airports, subway stations, high-speed railway stations)

Large commercial complexes and shopping centers

Crowded public places such as hospitals, schools and theaters

Data centers, communication machine rooms

Industrial buildings with special fire protection requirements

A2 Fire Aluminum Composite Panel Fire Resistant Acp Panels Cladding For High Rise Buildings

A2 Fire Aluminum Composite Panel Fire Resistant Acp Panels Cladding For High Rise Buildings
Our Main Related Products
A2 Fire Aluminum Composite Panel Fire Resistant Acp Panels Cladding For High Rise Buildings

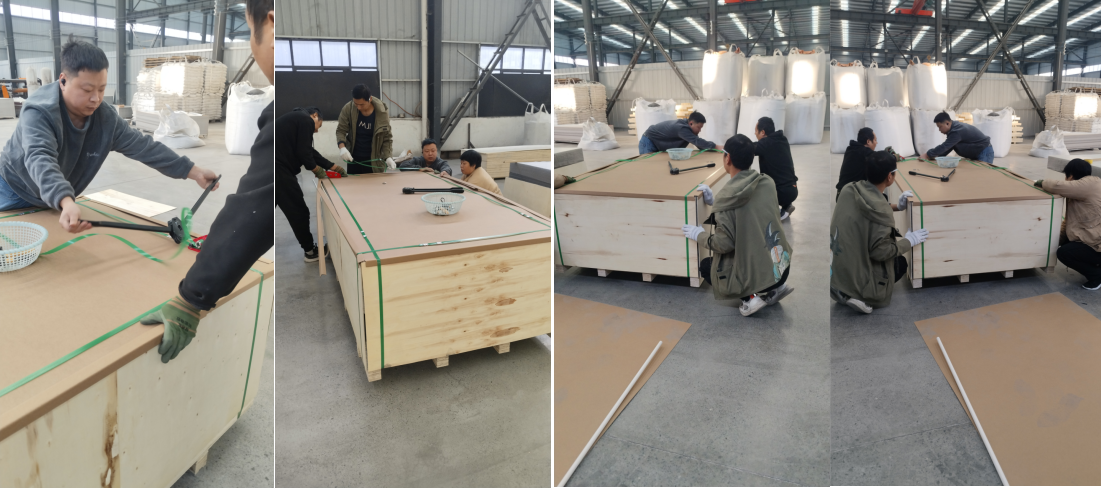

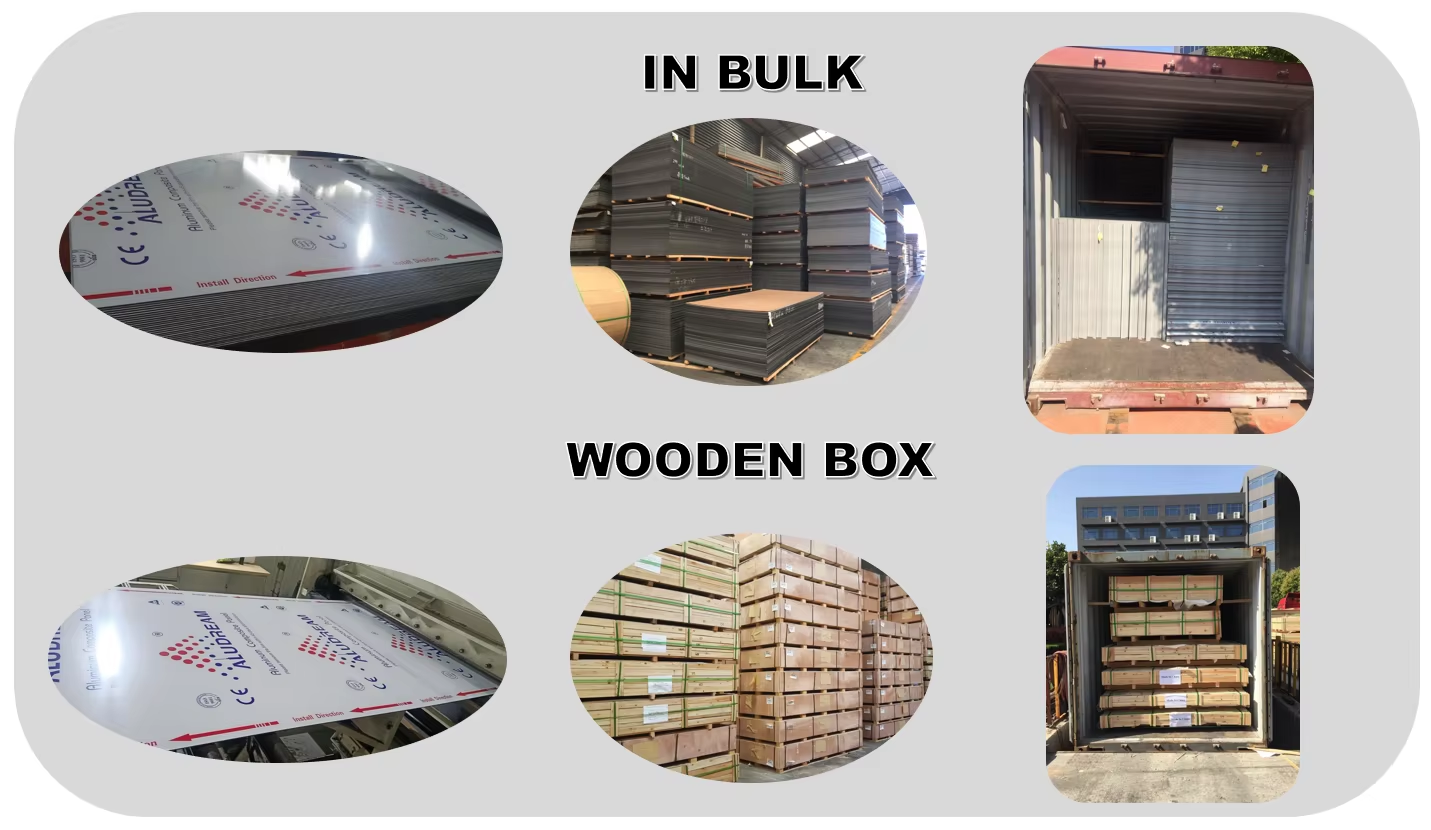

Packing and Shipping:

Product Packaging:

The fire proof Aluminum Composite Panel is securely packaged to prevent any damage during transportation. Each panel is wrapped in protective film and foam padding to ensure its integrity upon arrival.

A2 Fire Aluminum Composite Panel Fire Resistant Acp Panels Cladding For High Rise Buildings

Shipping:

We offer reliable shipping services to ensure that your PE Aluminum Composite Panel reaches you in perfect condition. The panels are carefully loaded onto pallets and shrink-wrapped for added protection during transit.

A2 Fire Aluminum Composite Panel Fire Resistant Acp Panels Cladding For High Rise Buildings
