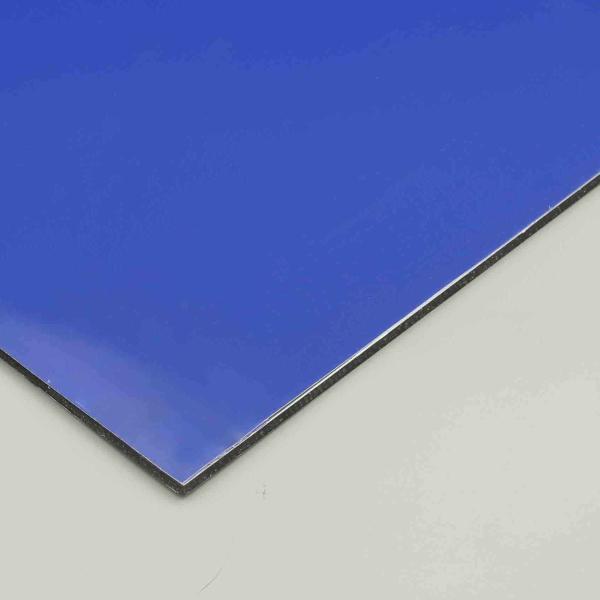

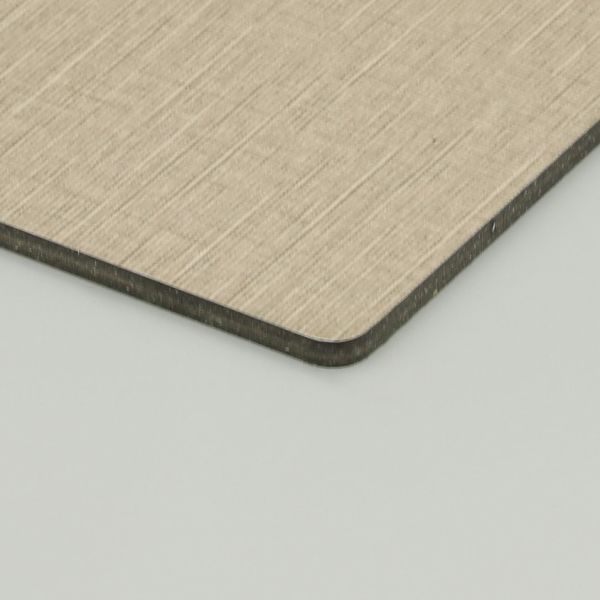

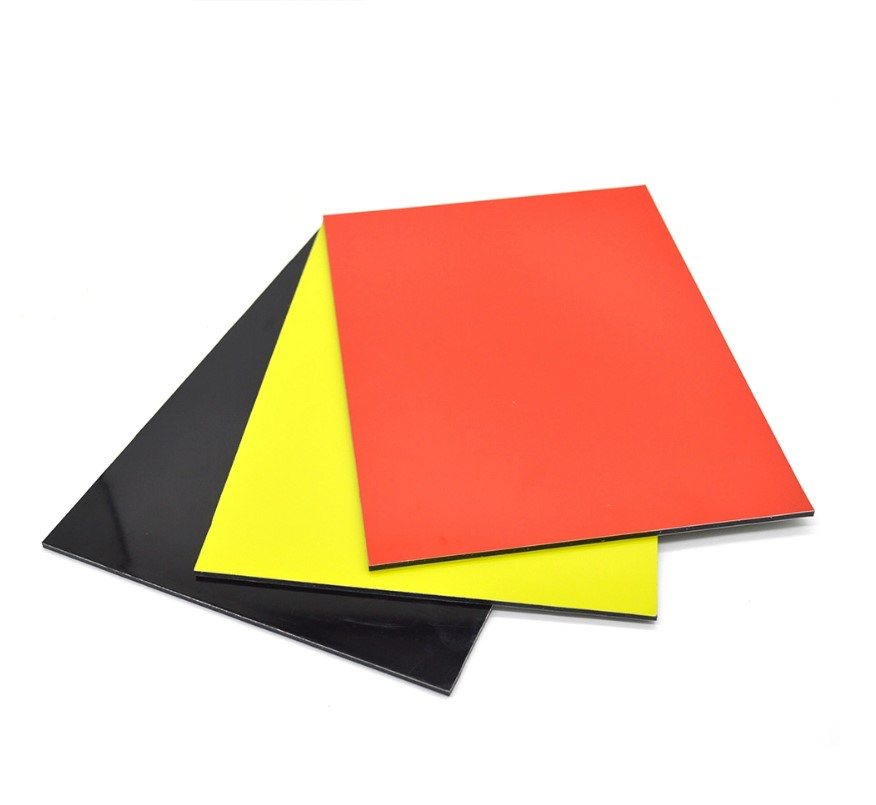

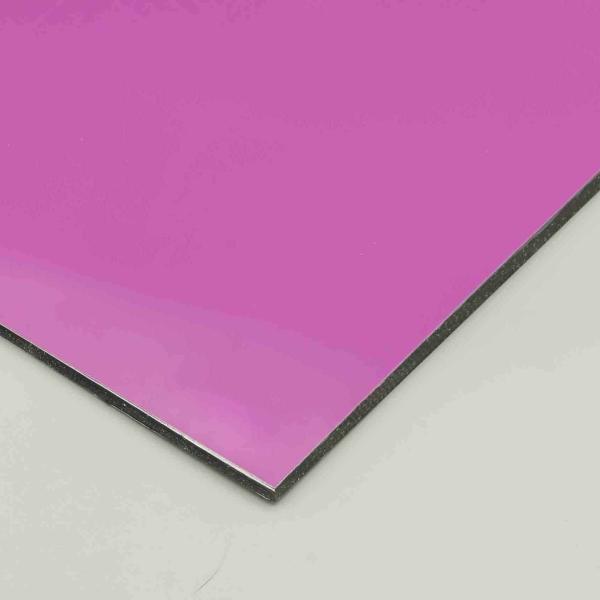

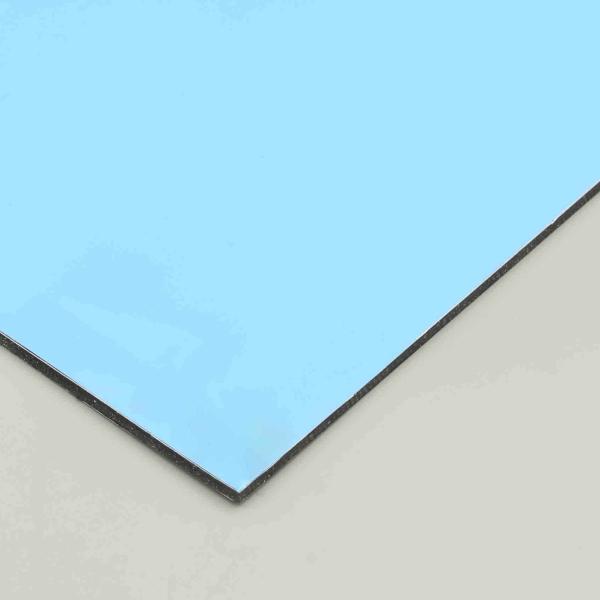

Aluminum Composite Panels (ACP):

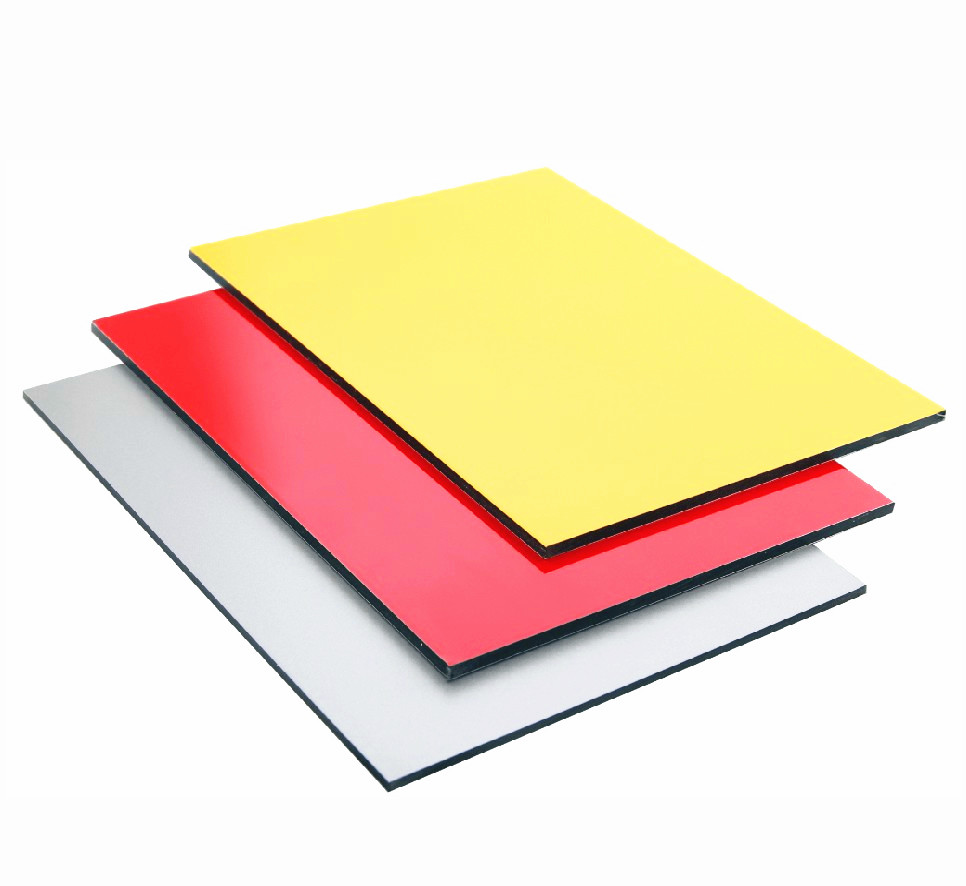

Aluminum composite panel also known as ACP panel or ACP sheet, are innovative building materials designed for strength, durability, and versatility. They consist of two thin aluminum sheets bonded to a non-metallic core. This core, often made from thermoplastic binders or mineral fillers, plays a crucial role in providing stability and strength. The aluminum layers are typically painted or coated, enhancing their appearance and resistance to environmental factors.

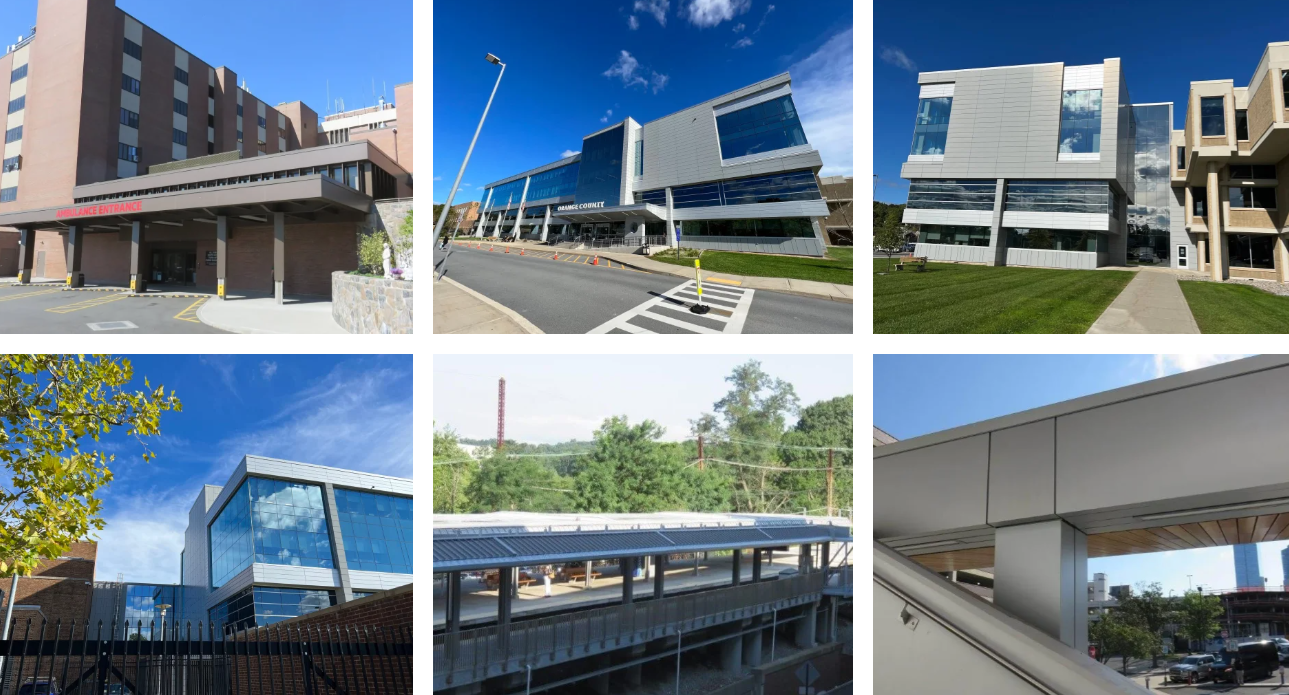

ACPs are known for their high-quality finish, durability, and resistance to weathering, making them a popular choice in construction and architectural applications.

Specifications And Sizes
| Parameter | Details |
| Aluminum Skin Thickness | Adjustable within 0.06 - 0.50mm. Thinner for aesthetic-focused, low - structural - demand applications; thicker for enhanced durability and performance |
| Total Panel Thickness | Ranging from 2 - 6mm. Caters to various functional needs like better thermal insulation, soundproofing, and structural stability |
| Width | Standard: 1000mm, 1220mm. Non-standard: 1250mm, 1300mm, 1500mm, 1550mm, max 1575mm. Wider widths reduce joints in large-scale projects, improving aesthetics and performance |
| Length | Up to 5800mm. Ideal for minimizing seam lines in large-span curtain walls or continuous interior wall claddings |
| Production Capability | 100,000 square meters per month. Adequate for both small and large-scale project demands |
| Inner Core | Options include normal non-toxic polyethylene (one-side/two-side unbroken), virgin LDPE for high-quality applications, and B1/A2 non - combustible mineral - filled cores for strict fire - safety requirements |
| Customization | Non-standard sizes and special colors are available upon customer request, leveraging advanced manufacturing and color-formulation expertise |

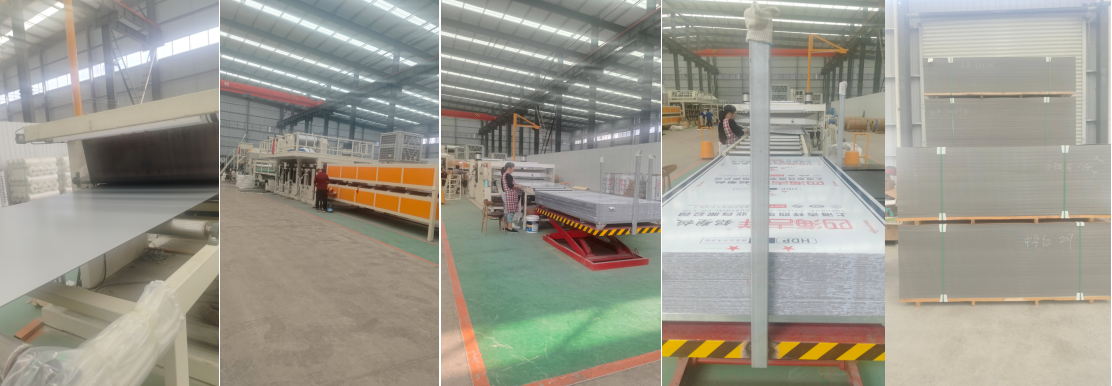

The factory was move in WENXIAN in 2021, mainly producing aluminum composite panel aluminum veneer and having employees more than 100 person.-Covering an area of 30 thousand square meters, with advanced production equipment that High-end instruments imported from Japan and continuously improve our technology.


Thank you very much for viewing this page Sincerely look forward to our cooperation!
