A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
Specifications
Brand Name :
Alushang
Model Number :
1220*2440MM
Certification :
sgs ISO
Place of Origin :
China
MOQ :
300meter square
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,
Supply Ability :
30000 Meter square /day
Delivery Time :
15-20days
Packaging Details :
wooden package
Color :
madder red
Length :
244cm
Fire Rating :
B1
Surface treatment :
HDPE Coated
Size :
4x8ft
Protection Film :
Alushang Or Customied
Warranty :
More than 5 years
Design style :
Modern
Certificates :
ISO9001,ISO14001
Using :
sign-making
Description


China-based manufacturer of premium A2 Fire Rated / Non-Combustible Aluminum Composite Panels. Mineral core, anti-corrosive, 1.5-8mm thickness for safe facades & interiors. Certified, custom solutions. Download TDS & request samples.


A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding

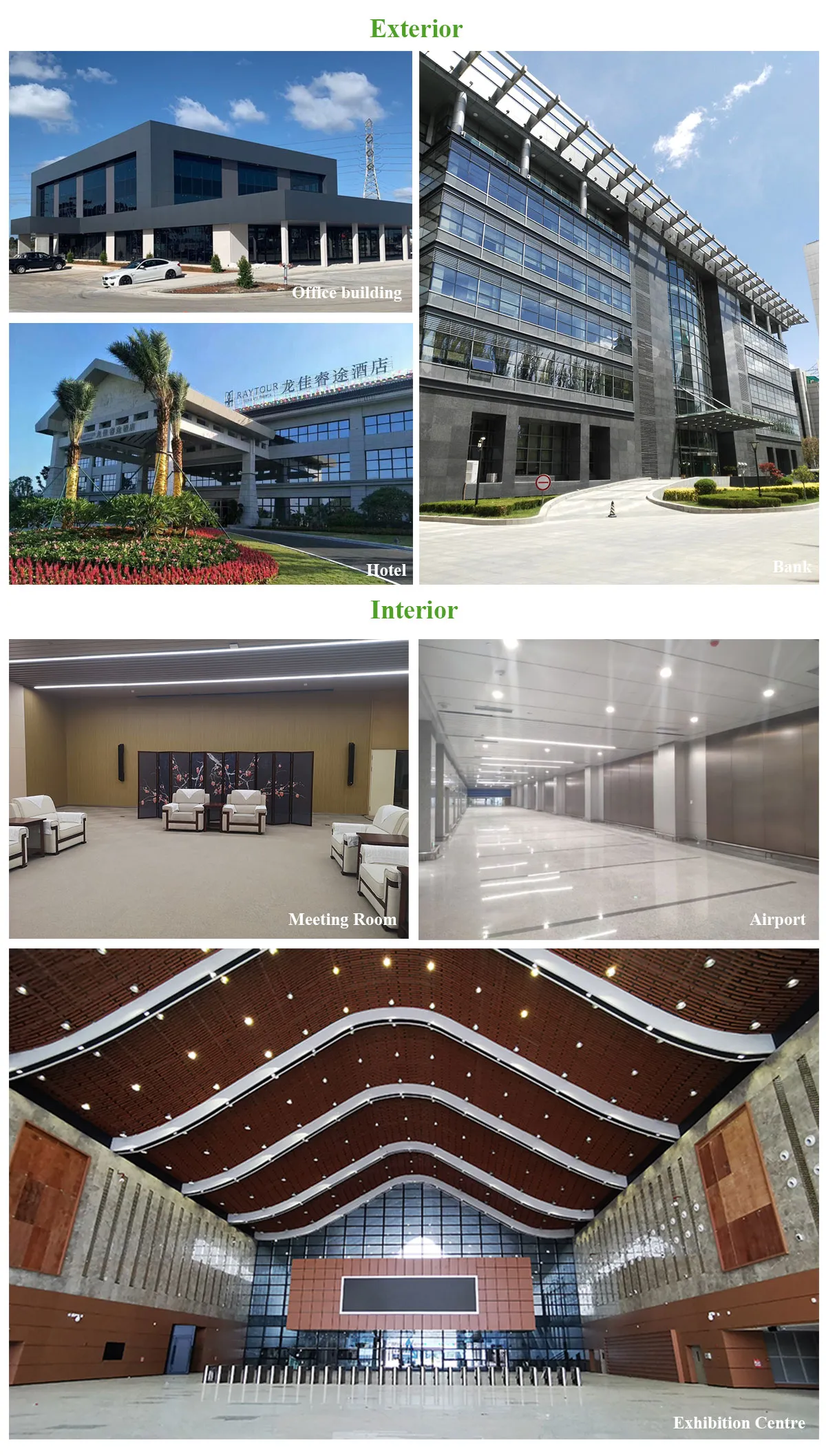

Application:

A2 Non-Combustible ACP Cladding for high-rise facades, airports & hospitals. Fire-safe solutions for ceilings, partitions and signage. 1.5-8mm thickness, anti-corrosion.

A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding






A2 Fire Rated Aluminum Composite Panel – Specifications & Sizes



Item / Parameter Specification Details
Product Name A2 Fire Rated Aluminum Composite Panel (Non-Combustible Grade)
Fire Rating EN 13501-1 Class A2-s1, d0 (Non-combustible, Limited Smoke, No Flaming Droplets)
Standard Thickness 1.5mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm, 8.0mm
Standard Panel Width 1220mm, 1250mm, 1500mm (Customizable per project)
Standard Panel Length 2440mm, 3050mm, 4000mm, Customizable up to 6000mm
Surface Coating PVDF Fluorocarbon Coating / Polyester PE Coating (Multiple finishes available)
Core Material Fire-Resistant Mineral Core (Inorganic, Non-combustible)
Standard Density Approximately 60 kg/m³ (May vary with thickness & core formulation)
Panel Weight (Approx.) ~ 3.5 kg/m² (for 4mm panel)
Available Finishes Metallic, Solid Color, Brushed, Mirror, Stone/Wood Grain, Custom Pantone Colors
Typical Applications High-rise Building Curtain Walls, Airports, Metro Stations, Hospitals, Shopping Malls, Indoor Partitions




Packaging:
The panels are first wrapped in protective film to prevent any scratches or damage during transportation.
They are then packed in strong wooden crates for added protection.
Each crate is labeled with the product name, size, and quantity for easy identification.
Additional padding and cushioning materials are used to fill any empty spaces and provide extra protection.

A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding
Shipping:
We offer a diverse range of shipping options to meet the specific needs of our customers. For international orders, we collaborate with reliable shipping companies to ensure safe and punctual delivery. We also provide expedited shipping for urgent orders. Our dedicated team closely monitors the shipping process to guarantee that our products reach their destinations in flawless condition. If you have any questions or concerns about our packaging and shipping methods, please do not hesitate to contact us. We are committed to delivering the highest level of service to our customers.


A2 Fire Rated Aluminum Composite Panel Manufacturer | Non-Combustible ACP Cladding

Thank you very much for viewing this page
Sincerely look forward to our cooperation!
