What Are Brushed Aluminum Composite Panels? Brushed aluminum ACPs are a premium finish variant where the aluminum surface undergoes a mechanical brushing process that creates fine, unidirectional lines, giving it a distinctive satin-metallic appearance. This finish is achieved through physical abrasion rather than just paint or coating.

How Brushed Finish is Created
Manufacturing Process:
Base Material: Starts with standard aluminum coil (typically 3003, 5005, or 5052 alloy)

Brushing Process:

Mechanical Brushing: Abrasive brushes or belts move across the aluminum surface in one direction

Satin Finishing: Creates consistent, fine parallel lines

Variations: Can be hairline (fine) or coarse brush patterns

Cleaning & Pre-treatment: Removes debris, followed by chemical cleaning

Protective Coating Application:

PVDF Coating (70% Kynar 500®/Hylar 5000®): Most common for exteriors

Polyester Coating: For interior applications

Anodizing: Less common but provides excellent durability

Lamination: Brushed aluminum sheets are bonded to core material

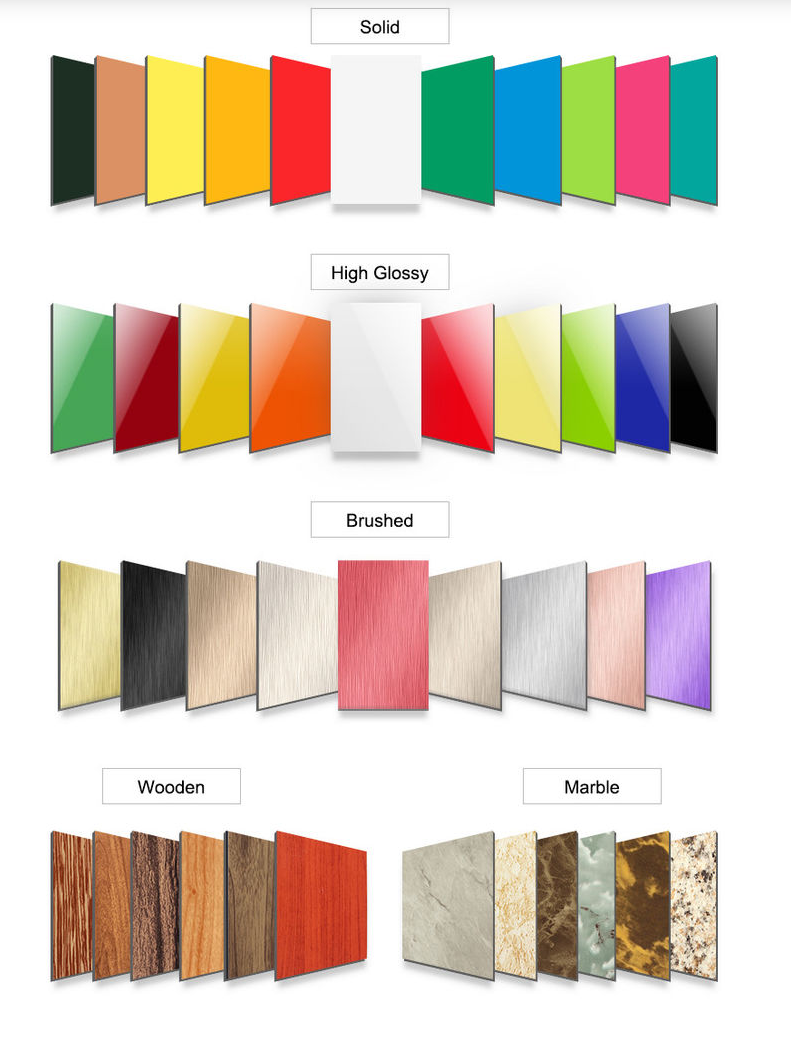

Key Characteristics & Aesthetic Qualities Feature Description Visual Texture Linear satin finish with visible grain Light Reflection Diffused, non-glare surface Tactile Quality Slightly textured feel Color Options Natural silver, champagne, bronze, black, gold Directionality Brush lines follow panel length

Advantages & Benefits

1. Aesthetic Superiority

• Modern Industrial Look: Popular in contemporary architecture

• Warm Metallic Feel: More sophisticated than plain mill finish

• Hides Minor Scratches: Brush pattern camouflages small imperfections

• Consistent Appearance: Uniform finish across panels

2. Functional Benefits

• Reduced Glare: Unlike mirror or high-gloss finishes

• Fingerprint Resistance: Better than polished aluminum

• Maintenance: Easier to clean than textured surfaces

• Durability: Coating protects the brushed surface

3. Design Versatility

• Works with both flat and 3D/formed panels

• Compatible with various fabrication techniques

• Available in different colors through coating

Applications

Exterior Applications:

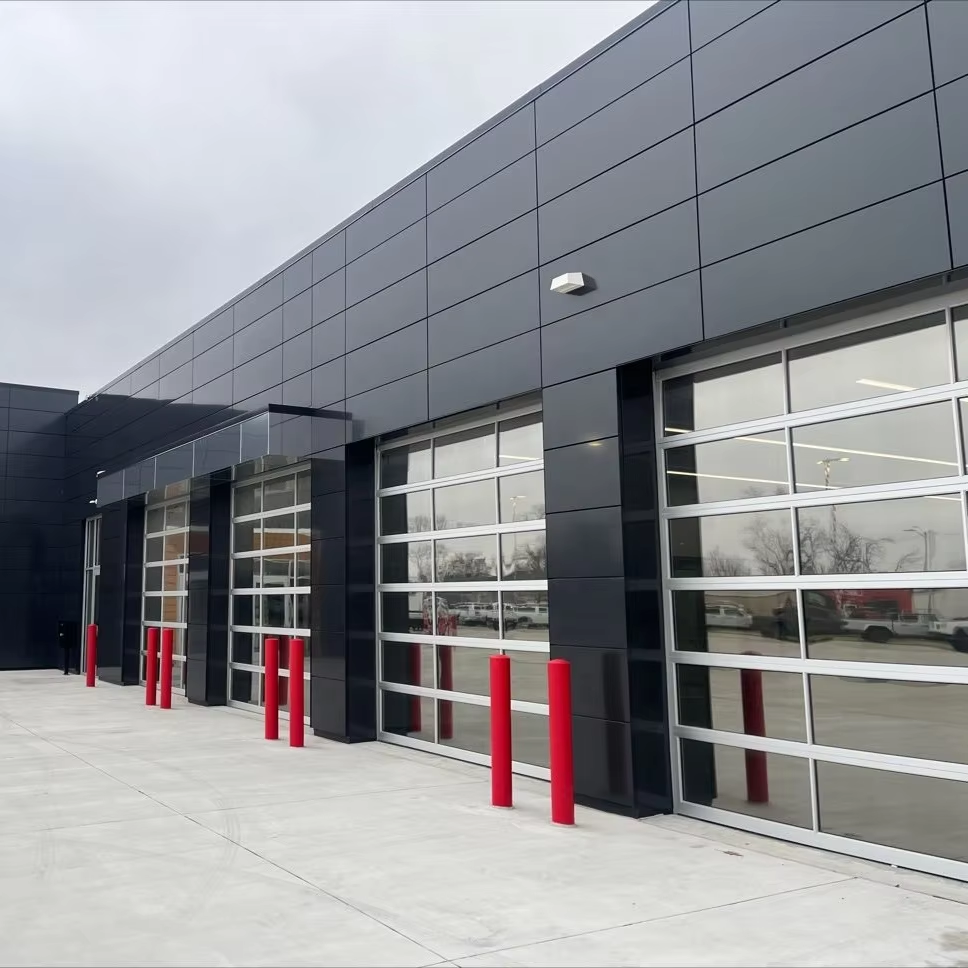

• Building Facades & Cladding

• Column Covers & Soffits

• Signage & Wayfinding Systems

• Retail Store Fronts

• Corporate Identity Buildings

Interior Applications:

• Feature Walls & Partitions

• Elevator Interiors

• Luxury Retail Displays

• Corporate Lobbies

• Exhibition Stands

• Furniture & Decorative Elements

Comparison with Other ACP Finishes

Installation & Fabrication Considerations

Handling Precautions:

1. Directional Consistency: Ensure all panels have brush lines running same direction

2. Protective Film: Remove immediately after installation (sunlight can bake adhesive)

3. Avoid Abrasive Cleaners: Can damage the brushed pattern

4. Cutting & Fabrication: Use sharp tools to minimize burring on cut edges

Joining Methods:

• Reveal Joints: Emphasize the linear pattern

• Flush Joints: Create seamless appearance

• Shadow Lines: Create depth between panels

Maintenance & Care

Recommended Cleaning:

• Regular: Mild detergent + water + soft cloth/sponge

• Periodic: Professional cleaning for large installations

• Avoid: Steel wool, abrasive pads, strong acids/alkalis

Stain Removal:

• Light Stains: Isopropyl alcohol (test first)

• Hard Water Stains: Vinegar solution

• Always: Rinse thoroughly after cleaning

Cost Considerations

• Premium over standard ACP: 20-40% more expensive

• Higher than solid colors, lower than anodized

• Factors affecting cost:

  • Aluminum thickness

  • Coating system (PVDF vs. Polyester)

  • Core material (PE vs. FR)

  • Panel thickness

  • Order quantity

Main Related Products

Packaging:

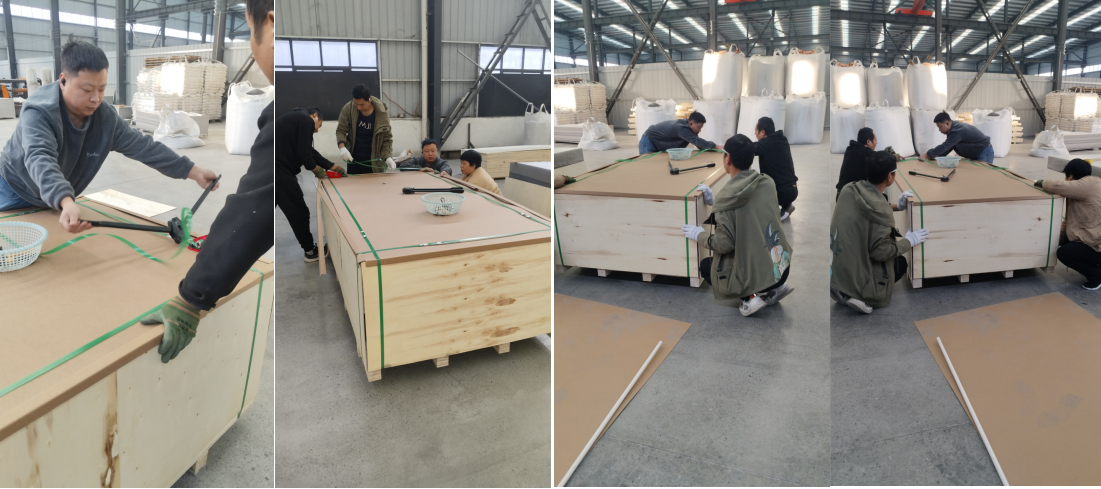

The panels are first wrapped in protective film to prevent any scratches or damage during transportation.
They are then packed in strong wooden crates for added protection.
Each crate is labeled with the product name, size, and quantity for easy identification.
Additional padding and cushioning materials are used to fill any empty spaces and provide extra protection.

Shipping:
We offer various shipping options to suit our customers' needs:
For international orders, we work with trusted shipping companies to ensure safe and timely delivery.
We also offer expedited shipping for urgent orders.
Our team carefully monitors the shipping process to ensure that our products arrive at their destination in perfect condition.

For any questions or concerns about our packaging and shipping methods, please don't hesitate to contact us. We are committed to providing the best service to our customers.
