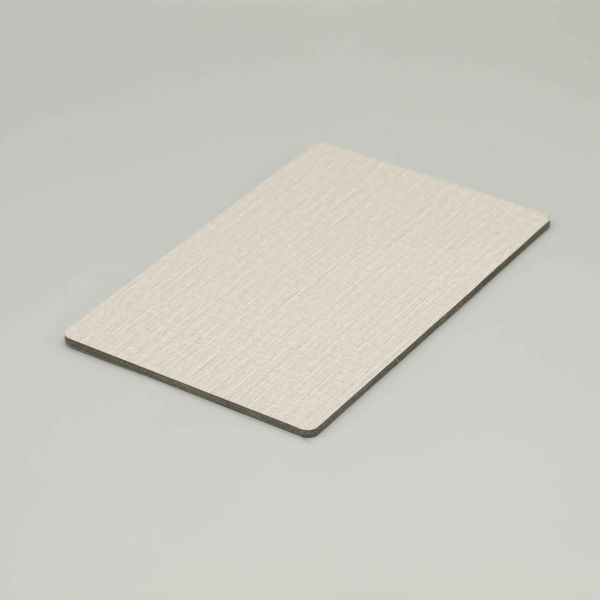

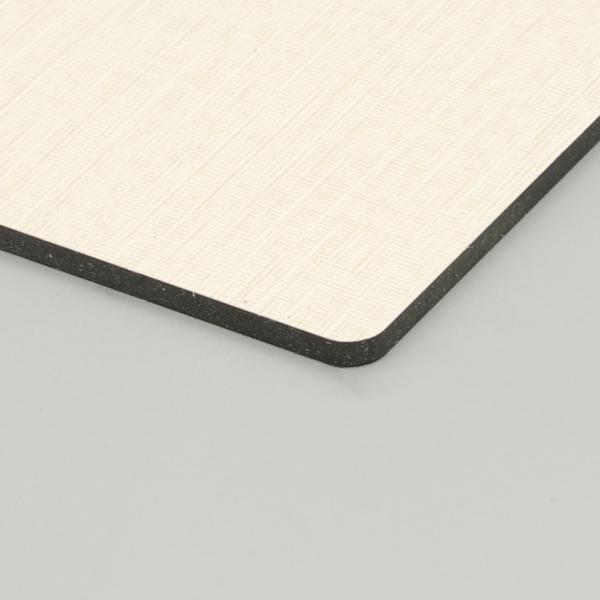

Premium PVDF Coated Aluminum Composite Panel (ACP) for High-End Exterior Facades
Product Overview
Engineered for ultimate durability, architectural aesthetics, and long-term performance, our Premium PVDF Coated Aluminum Composite Panels (ACP/ACM) are the premier choice for modern building facades, exterior cladding, and commercial signage.
Utilizing advanced continuous thermal lamination technology, high-grade aluminum skins are securely bonded to a specialized polyethylene core. Coated with top-tier fluorocarbon resin (containing Kynar 500® or equivalent), these panels deliver exceptional structural flatness and uniform color consistency, ensuring your projects withstand the test of time and nature.

| Parameter | Technical Specifications & Range |
|---|
| Aluminum Skin Thickness | 0.15mm - 0.50mm (Customizable based on project requirements) |
| Total Panel Thickness | 3.0mm, 4.0mm, 5.0mm (Standard 3mm/4mm heavily stocked) |
| Standard Dimensions | 1220mm (Width) * 2440mm (Length) |
| Customized Widths | 1000mm, 1250mm, 1300mm, 1500mm, 1550mm, up to 1575mm |
| Customized Lengths | Tailored up to 5800mm to optimize container loading |
| Coating Thickness | ≥ 25 μm |
| Core Material Options | Standard Flexible LDPE / Fire-Retardant Mineral Filled Core (B1 / A2 Class upon request) |

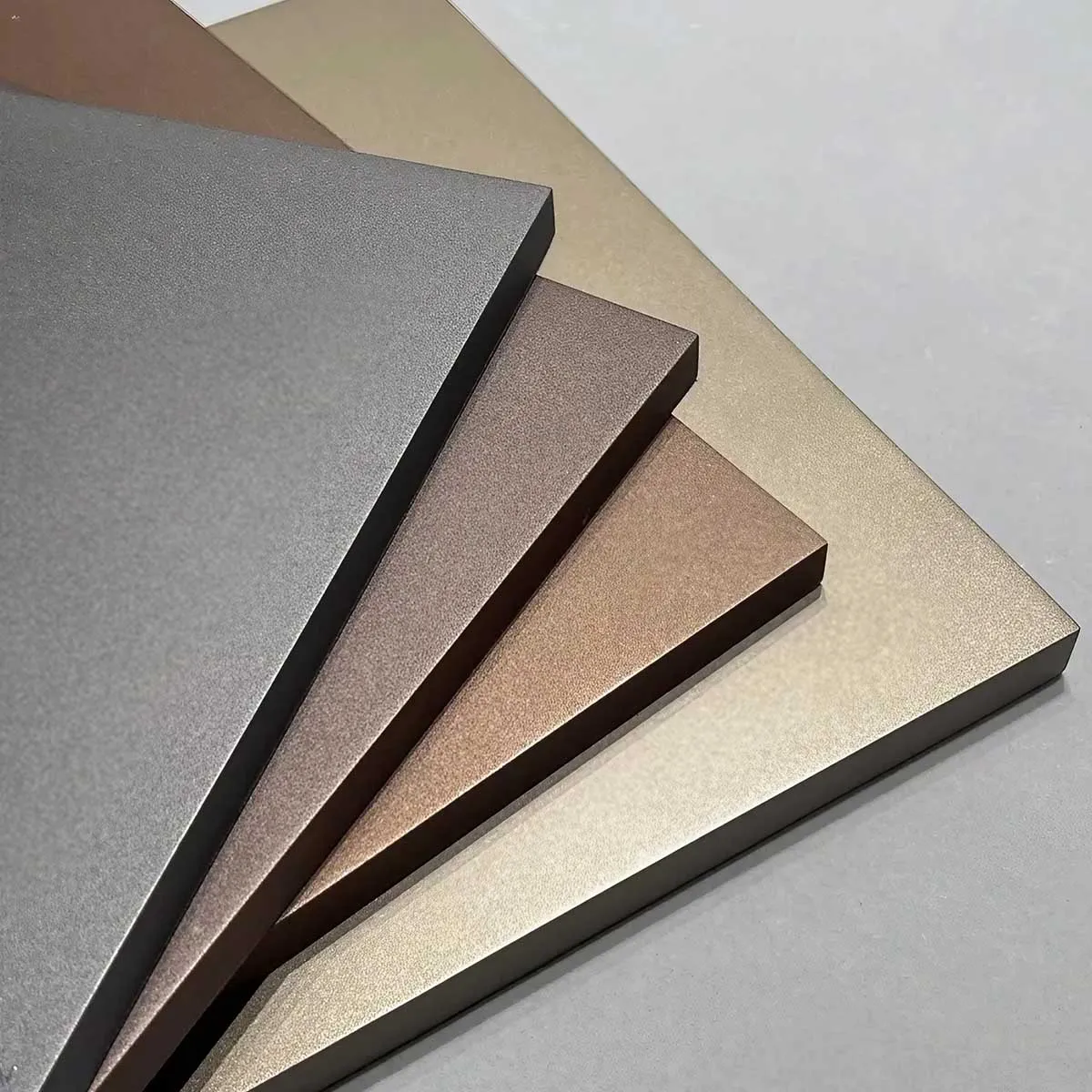

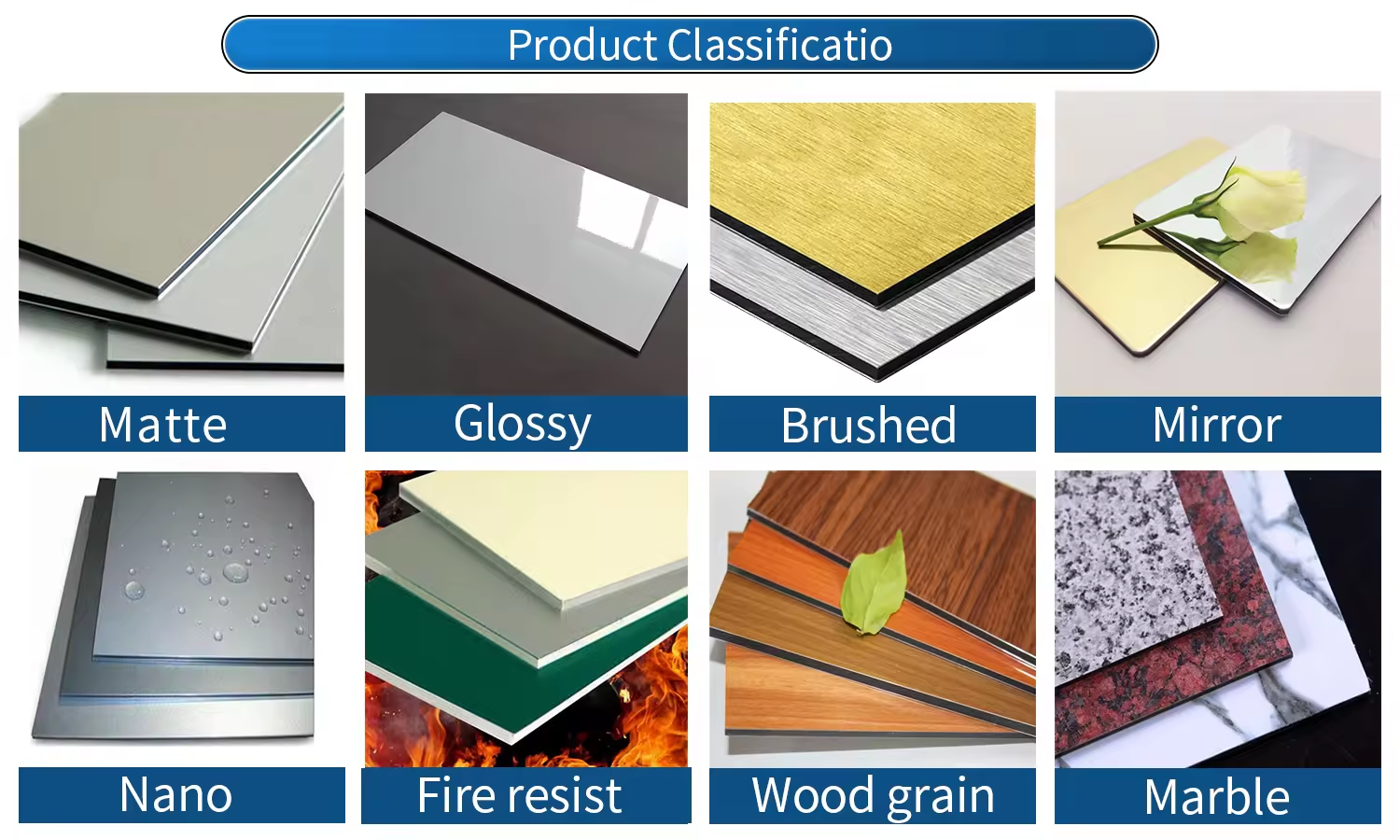

| Surface Finish Aesthetics | Matte, Glossy, Metallic, Brushed, Mirror, Wood Texture, Stone Pattern |
| Production Capacity | 100,000 square meters per month |
Key Engineering Features
Exceptional Weather & UV Resistance: The 70% fluorocarbon (PVDF) coating provides a powerful shield against extreme environmental stressors. It protects the facade from color fading under intense solar radiation and resists thermal cracking in climates with severe seasonal temperature fluctuations.
Outstanding Surface Flatness & Peel Strength: Advanced tension-leveling and precise heat-lamination processes guarantee impeccable flatness over large-format cladding installations, eliminating oil-canning effect or surface distortion.
Superior Corrosion & Self-Cleaning Performance: The resilient outer coating repels atmospheric pollutants, industrial emissions, and acid rain. Its hydrophobic properties allow dirt and dust to wash away easily during rainfall, minimizing maintenance overheads.
Flexible Fabrication & Easy Installation: Our panels possess remarkable formability. They can be cleanly cut, routed, grooved, bent 90 degrees, or drilled using standard metalworking equipment, perfectly matching complex geometric designs and aluminum framing systems.
Versatile Application Scenarios

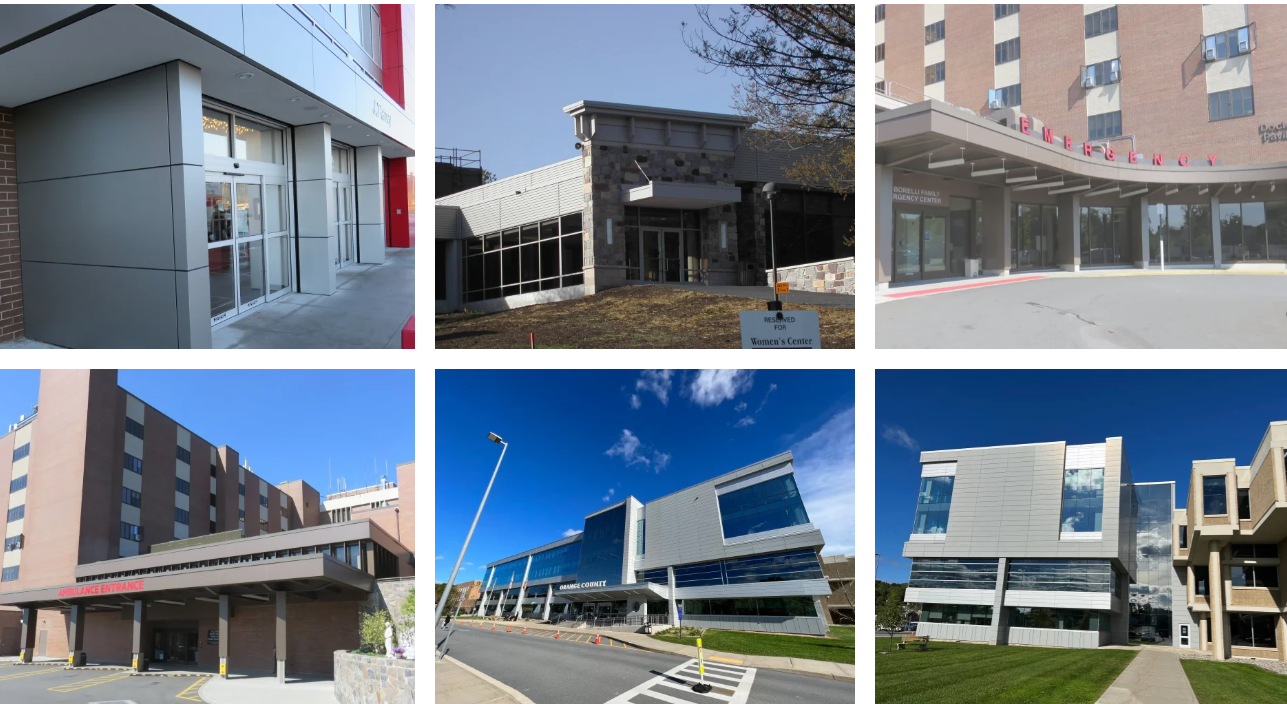

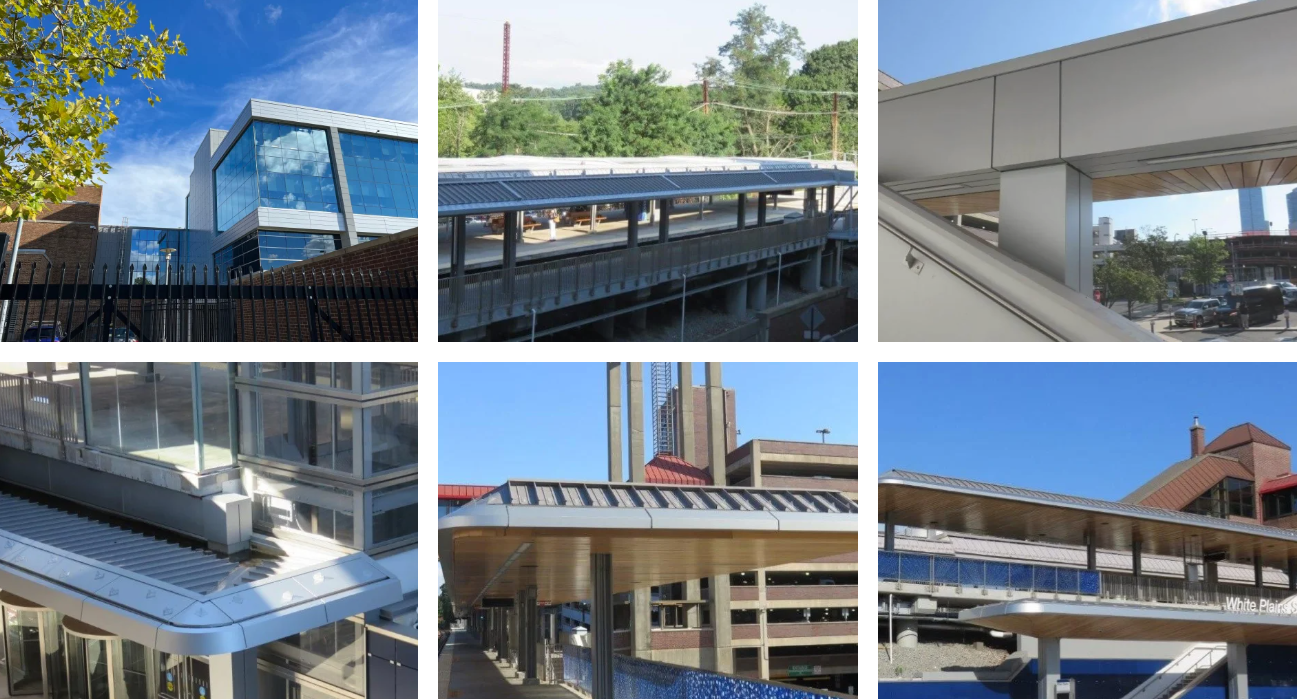

- Commercial & Residential Facades: Modern curtain wall envelopes, spandrel panels, canopies, and high-rise structural cladding.
- Architectural Renovations: Durable aesthetic retrofitting for aging buildings, retail storefronts, and fascias.
- Corporate Identity & Advertising: High-impact corporate signage, gas station canopies, exhibition display platforms, and billboards.
- Specialized Industrial Uses: Cleanroom wall partitions, internal transport vehicle linings, and marine interior paneling.

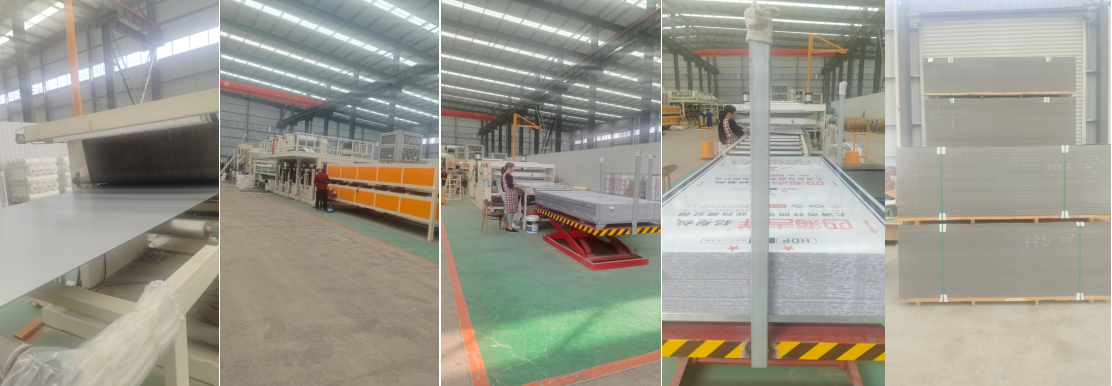

Workshop:
Established with two decades of deep industry expertise, our state-of-the-art manufacturing facility was strategicly relocated to Wenxian, Henan in 2021. Spanning an expansive area of over 30,000 square meters and supported by a dedicated team of over 100 technical professionals, we combine scale with absolute precision. Our workshop is equipped with high-efficiency automated continuous production lines and high-end quality inspection instruments. Continuous technical improvement and rigorous batch testing ensure that every sheet delivered satisfies industrial specifications and engineering tolerances.

Main related products:

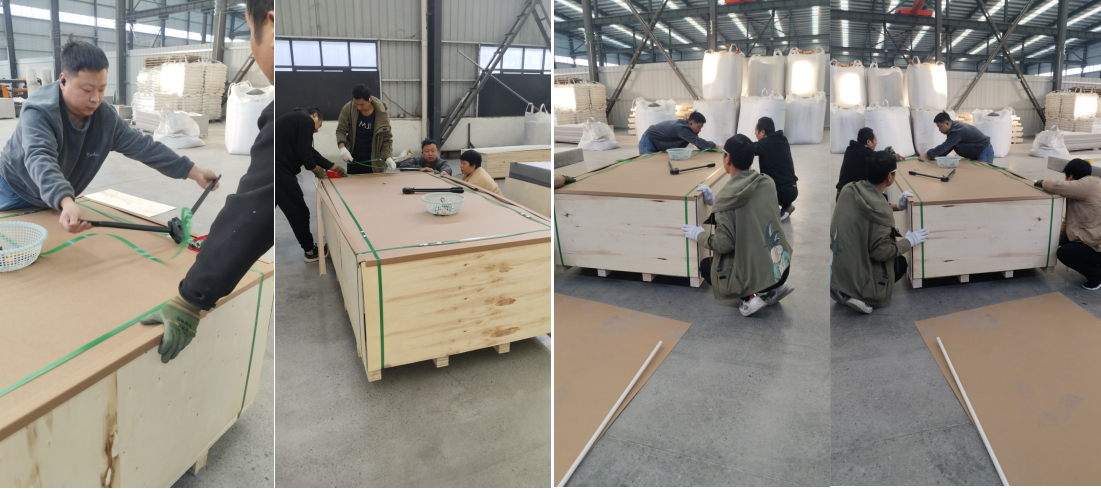

Heavy-Duty Transit Protection & Global Logistics
We understand that long-distance cross-border transport poses risks to surface finishes. Therefore, we implement a strict damage-prevention packaging protocol:
Individual Surface Guarding: Each individual panel is masked with a customized, thick UV-resistant protective film to prevent any abrasions or scratches during handling and fabrication.
Reinforced Pallet Loading: Completed panel sets are tightly packed on high-quality, export-standard wooden pallets. They are structurally reinforced at the corners and securely strapped to eliminate friction and movement during multi-modal sea freight or overland transit, ensuring flawless on-site arrival.

Thank you for your interest in our products. We look forward to the opportunity to work with you.
