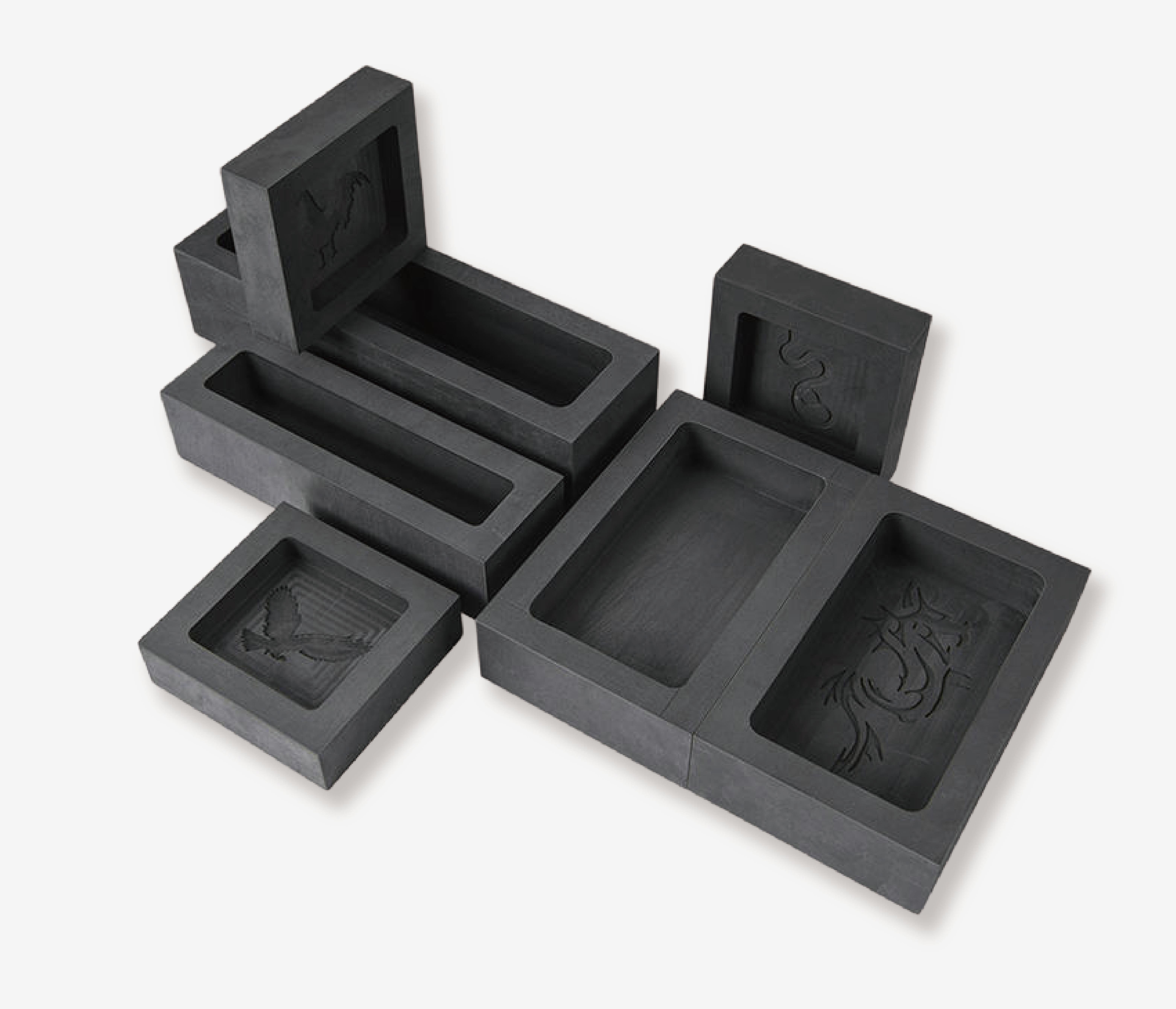

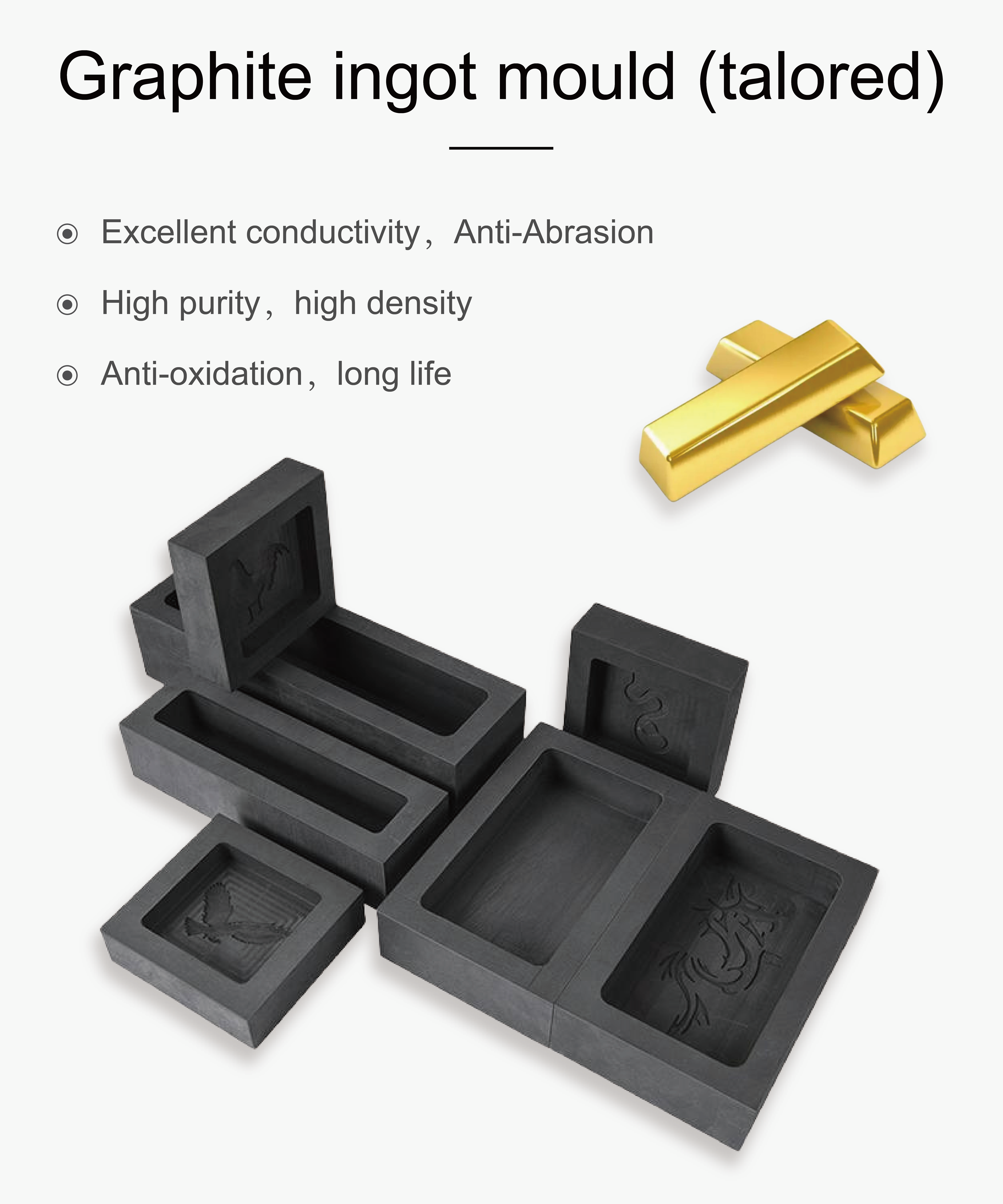

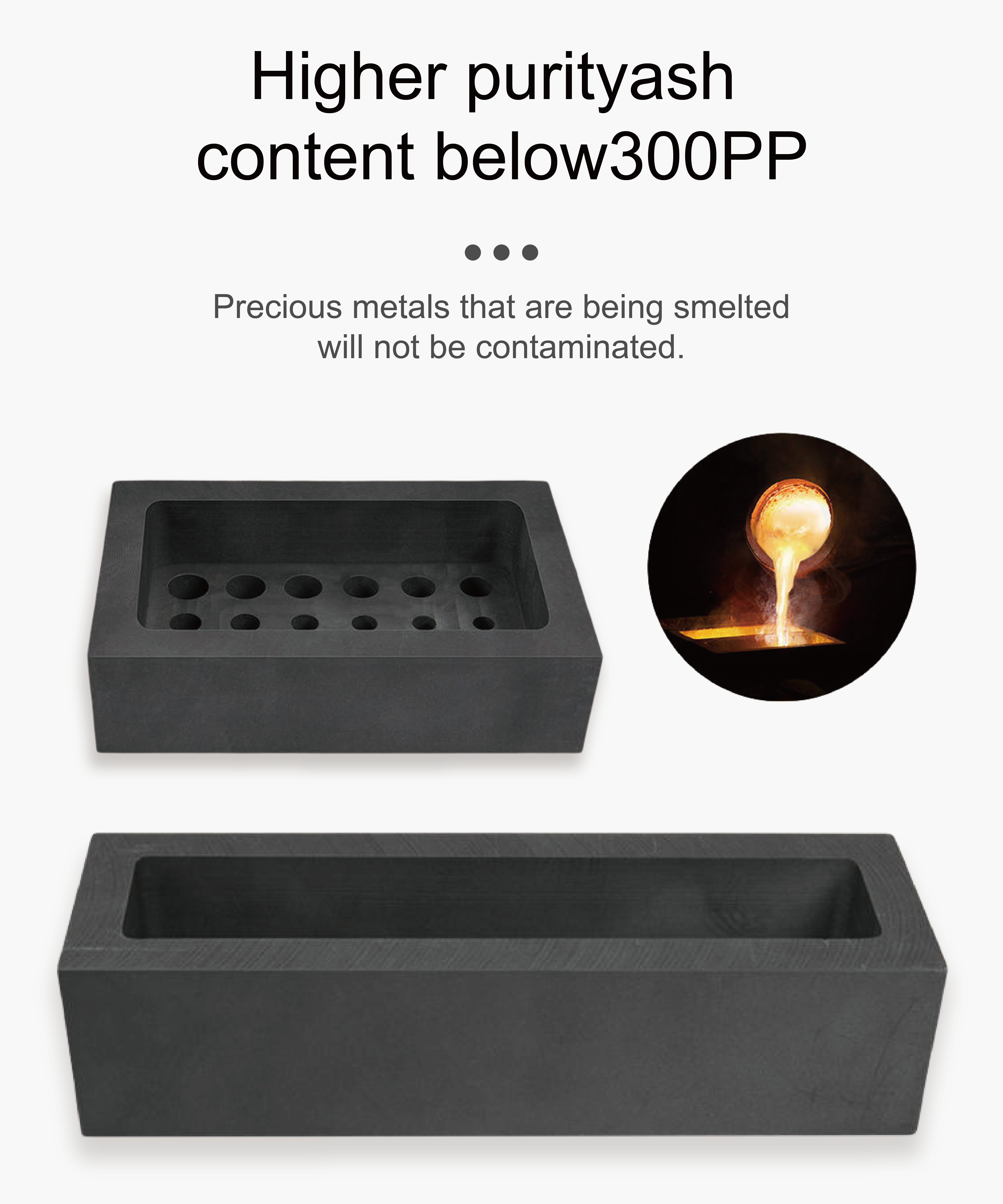

High Purity Graphite Ingot Mold | Anti-Oxidation & Anti-Abrasion | Customizable with Drawings

Specifications:

Material: High-purity graphite
Maximum Operating Temperature: Up to 2000°C (depending on crucible grade)
Applications: Metal melting (gold, silver, platinum, etc.), ceramic glaze firing, semiconductor manufacturing, and laboratory experiments.
Durability: Resistant to thermal shock and chemical corrosion
Shape & Size: Available in various shapes (round, rectangular, etc.) and demensions could be customized

High Purity Graphite Ingot Mold | Anti-Oxidation & Anti-Abrasion | Customizable with Drawings

50 g — —500 g

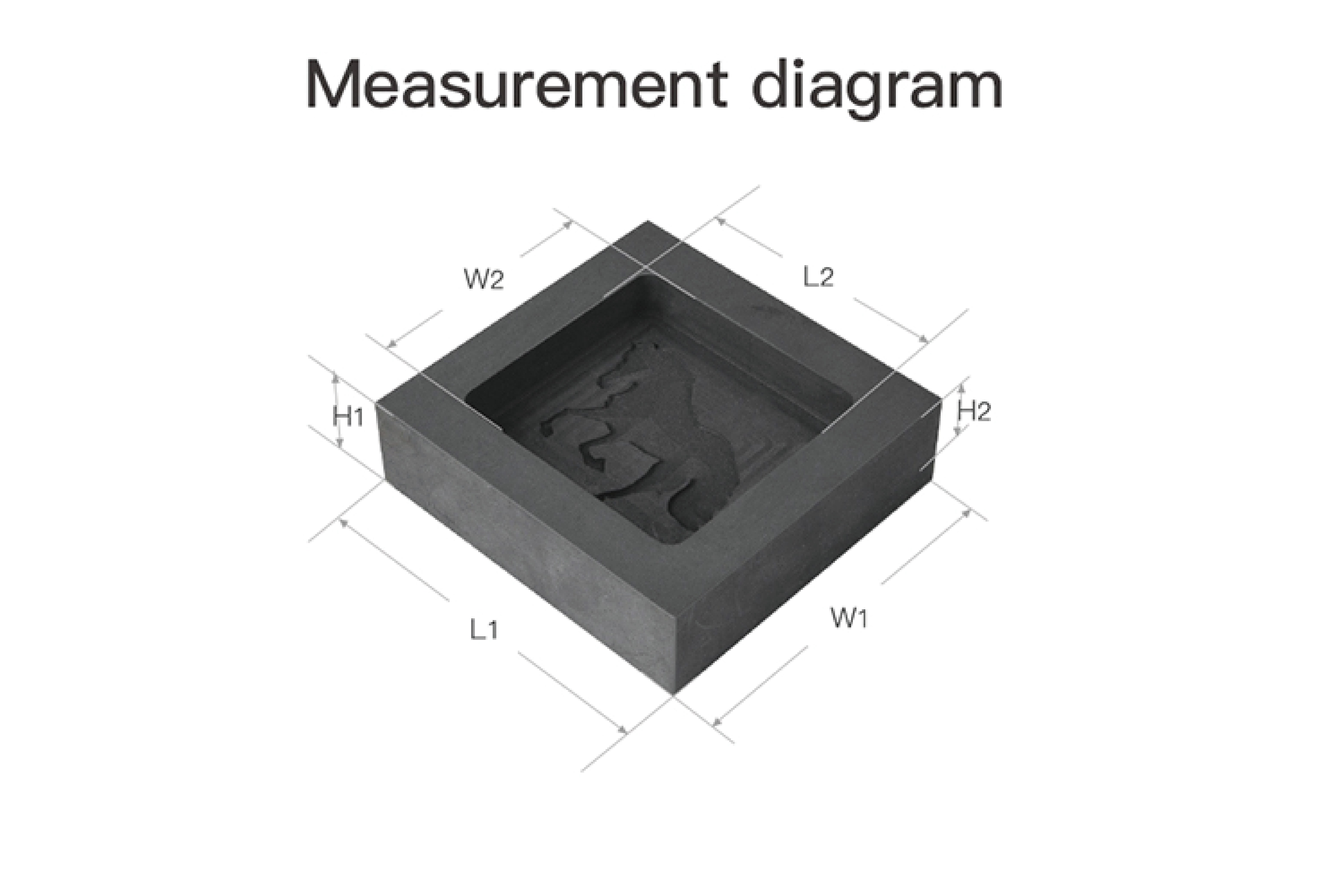

Description	Model	Capacity	Size(mm)
		Gold Silver	L1	W1	H1	L2	W2	H2	Weight
		Gold Silver	(inner height)			(outer height)
50g graphite ingot mould	G.GI.Y0050	50g 42g	40	40	20	20	20	10	0.05
100g graphite ingot mould	G.GI.Y0100	100g 50g	55	40	20	35	20	10	0.06
200g graphite ingot mould	G.GI.Y0200	200g 100g	70	45	20	50	25	10	0.08
250g graphite ingot mould	G.GI.Y0250	250g 130g	67	50	26	47	25	16	0.12

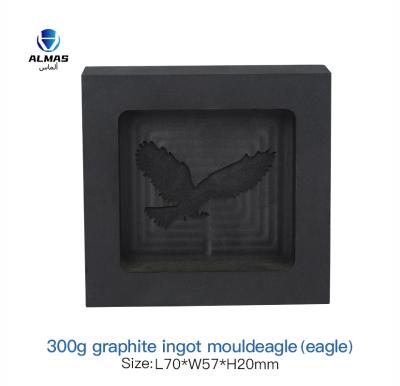

300g graphite ingot mould	G.GI.Y0300	300g 150g	70	57	20	50	37	10	0.09
400g graphite ingot mould	G.GIY0400	400g 200g	70	67	20	50	47	10	0.11
500g graphite ingot mould	G.GI.Y0500	500g 250g	70	67	26	50	47	16	0.15

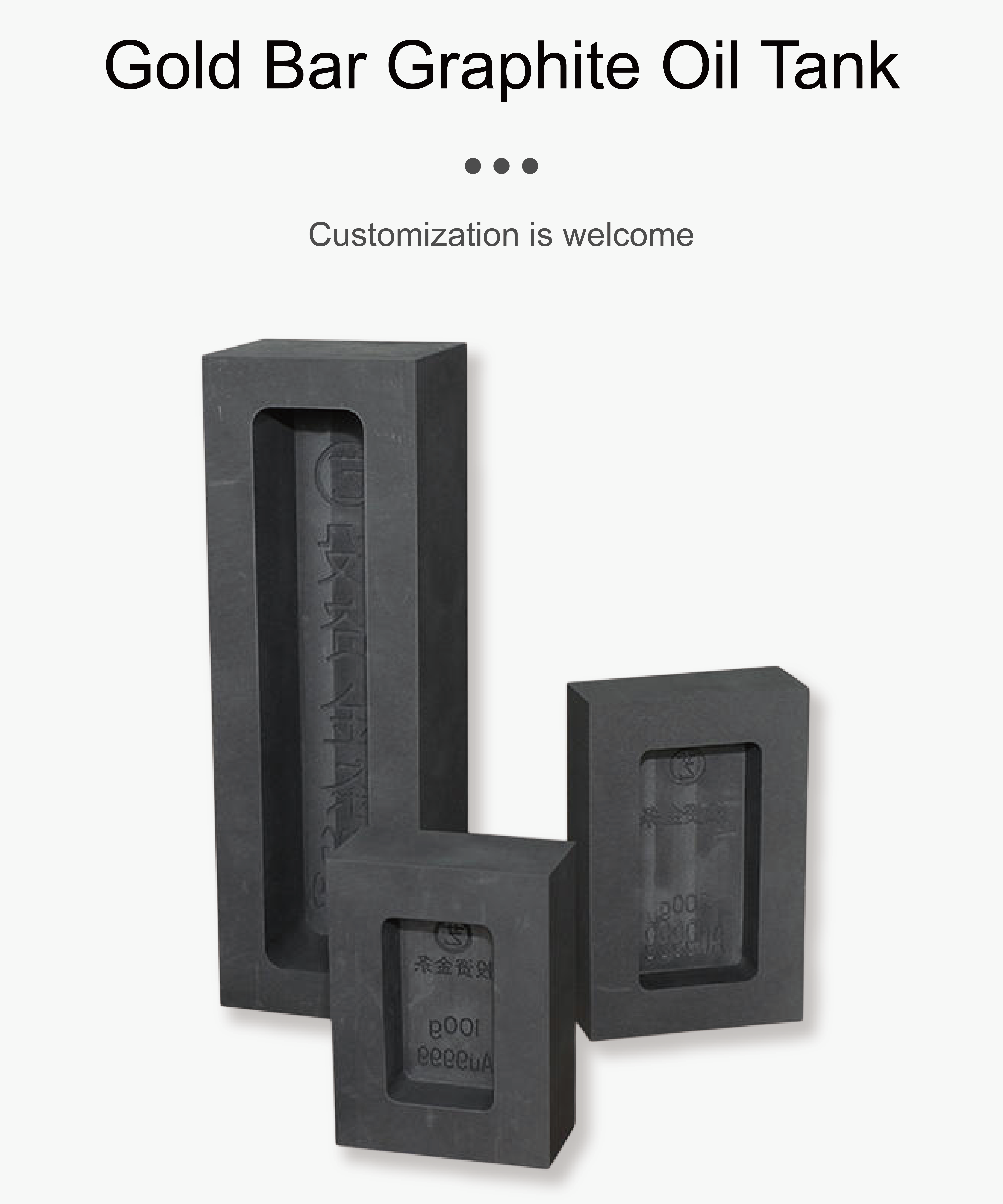

*Dear customers,the capacity we are talking about is based on gold(for example,a 500g graphite oil tank means that 500g of gold can be loaded.)If it is loaded with silver or other metals,it needs to be recalculated according to the metal density.

High Purity Graphite Ingot Mold | Anti-Oxidation & Anti-Abrasion | Customizable with Drawings

1kg ——3kg

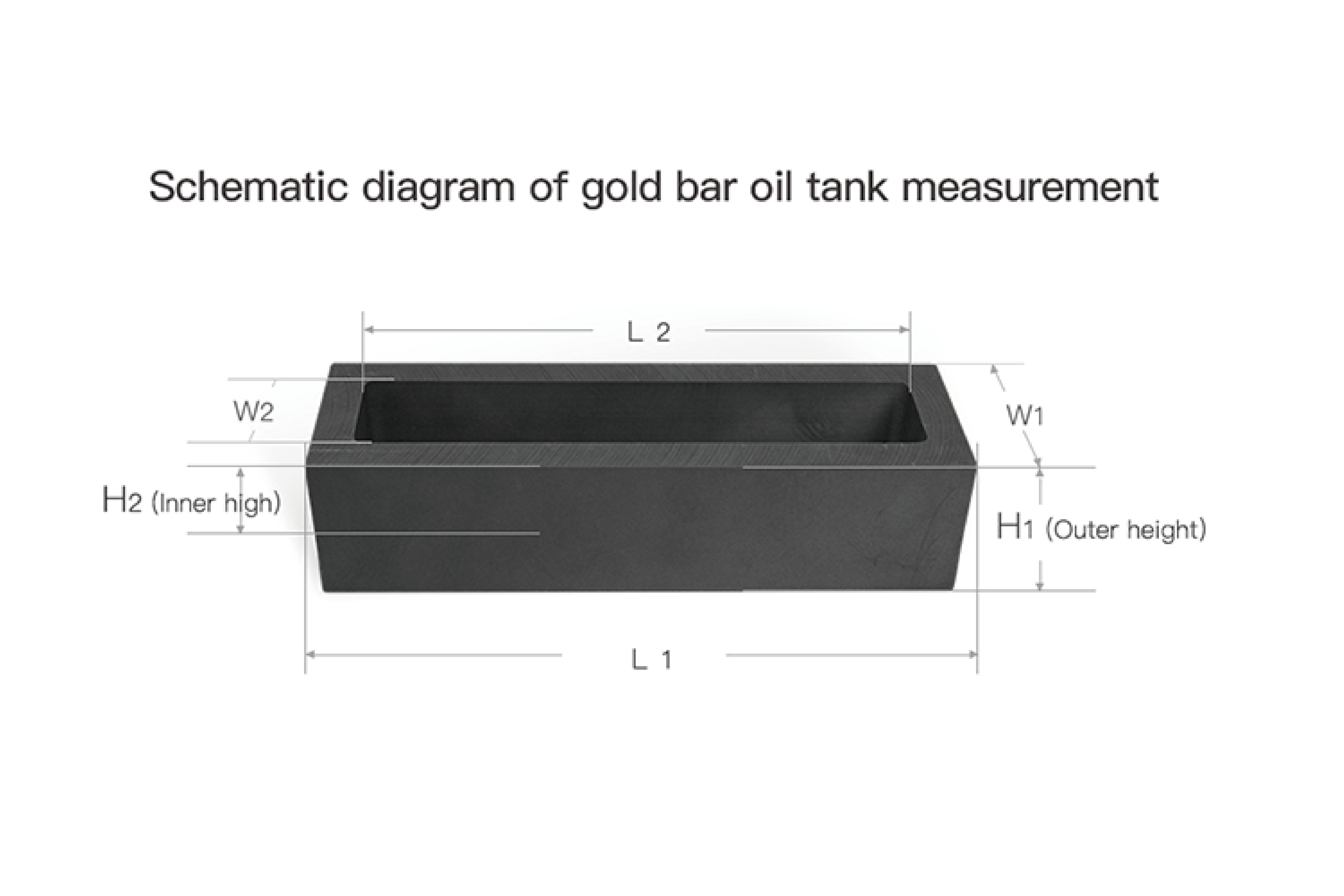

Description	Model	Capacity	Size(mm)						Weight
		Gold Silver	L1	W1	H1	L2	W2	H2
		Gold Silver	(inner height)			(outer height)
1kg graphite ingot mould	G.GI.Y1000	1000g 500g	135	42	32	115	22	22	0.33
2kg graphite ingot mould	G.GI.Y2000	2000g 1000g	160	48	38	140	28	28	0.35
3kg graphite ingot mould	G.GI.Y3000	3000g 1500g	175	52	42	155	32	32	0.41
*The above data is manual measurement,there may be some errors,please refer to the actual product received!

High Purity Graphite Ingot Mold | Anti-Oxidation & Anti-Abrasion | Customizable with Drawings

Technical parameter For reference only

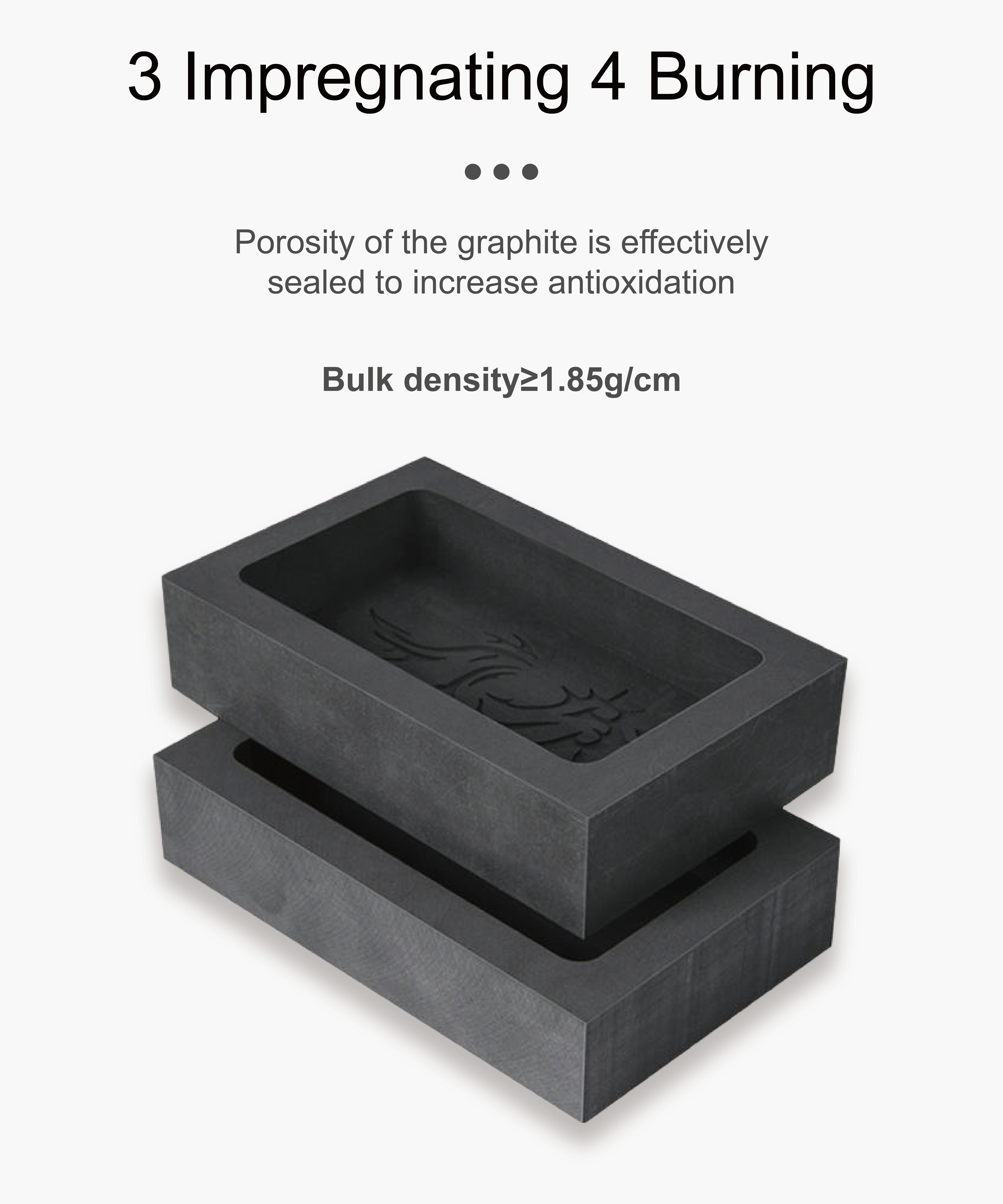

Bulk density	1.85g/cm³	Compressive strength	≥70 MPa	Porosity	(≤10%)
Shore Hardness	50-70HSD	Flexural strength	≥55MPa
Purity	≥99.99%	Resistivity	(≤13 μom)

Product Features & Advantages

Exceptional Heat Resistance: The graphite crucible's high melting point ensures it can withstand extreme temperatures without deformation or degradation.
Superior Thermal Conductivity: Rapid and even heat distribution ensures efficient melting processes and improved product quality.
Chemical Inertness: Resistant to most acids, alkalis, and solvents, ensuring purity of the melted material.
Longevity: Durable construction and resistance to thermal shock prolong crucible lifespan.
Versatility: Suitable for a wide range of industries and applications, from precious metal refining to advanced materials research.
Eco-Friendly: Graphite is a natural, non-toxic material, making it an environmentally responsible choice.
