Wall Ceiling Mount Linear High Bay CREE Led Lighting Symmetrical Beam Angle
Wall Ceiling Mount Linear High Bay CREE Led Lighting Symmetrical Beam Angle
Wall Ceiling Mount Linear High Bay CREE Led Lighting Symmetrical Beam Angle
Wall Ceiling Mount Linear High Bay CREE Led Lighting Symmetrical Beam Angle
Wall Ceiling Mount Linear High Bay CREE Led Lighting Symmetrical Beam Angle
Wall Ceiling Mount Linear High Bay CREE Led Lighting Symmetrical Beam Angle
Specifications
Certification :
ETL DLC TUV CE SAA ROHS
LED :
CREE 3030 SMD
Brand Name :
Honor Eco
Input Voltage :
100-277VAC,50/60Hz
Dimming Options :
Non-dimmable/dimmable
Packaging Details :
carton
Lead time :
500pcs qty 10 working days
IP Rating :
IP65
Model Number :
LSUS-200WXY-LV(XXK)
Housing Color: :
Sandy Black / Grey Symmetrical
Price :
35~83USD
Payment Terms :
T/T,Western Union,MoneyGram
Place of Origin :
CN
MOQ :
10
Driver :
Mean Well or Sosen
Beam Angle :
Symmetrical Angle: 30° / 60° / 90° Polarization Angle : 30*70° / 60*120° / 80*155°
OEM Packing :
available based on MOQ 100pcs
Supply Ability :
1000pcs per week
Light eff. :
127LM/W
Description

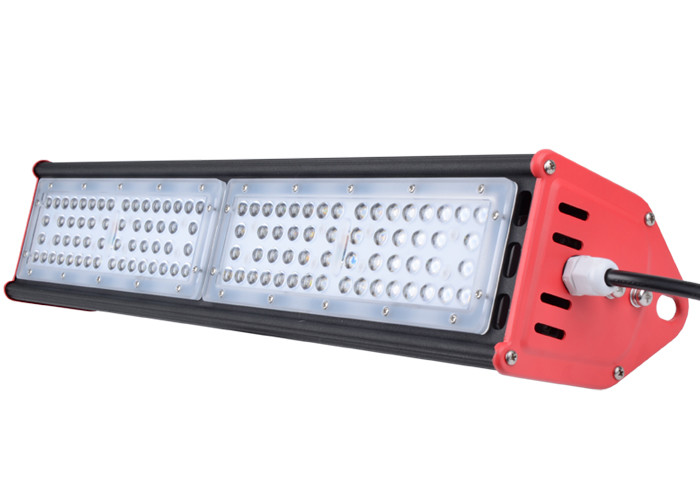

Wall Ceiling Mount Linear High Bay CREE Led Lighting Symmetrical Beam Angle



1. Feature


1. ADC12 AL alloy heat sink, excellent heat sink.
2. CREE SMD3030 LED chips and SOSEN or Mean Well power supply, quality first.
3. ISO quality standard factory & well trained workers, 5 years warranty.
4. No UV and near-IR radiation in the light beam.



2. Our advantages


1.DLC &CE & RoHS & IP65 approved, 5 years Quality Guaranteed.
2.OEM & ODM available, more than 3 year OEM experience, independent R&D ability, and patent design.
4. Fast delivery time, 2-15 workdays depends on order quantity after payment confirmed.
5. Convenient transportation, close & easy access to both Shenzhen Seaport and Airport.
6. Flexible, small amount order accepted. Monthly supply capacity:3.000~10.000pcs/item.



3. Specifications


Model NO. Wattage Input Voltage Driver LED Brand Lumen Color Temperature Certificates
LSLHBL-50W 50Watt 100-277VAC UL Driver

SMD 3030

CREE

 6350Lm 3000K 4000K
5000K 5700K 6500K		 CE RoHS
LSLHBL-100W
(Same as DLC NO.)		 100Watt 100-277VAC UL TUV
Sosen Driver

SMD 3030

CREE

 12700Lm 3000K 4000K
5000K 5700K 6500K		 TUV CE
RoHS ETL DLC

















4. Size &Packing

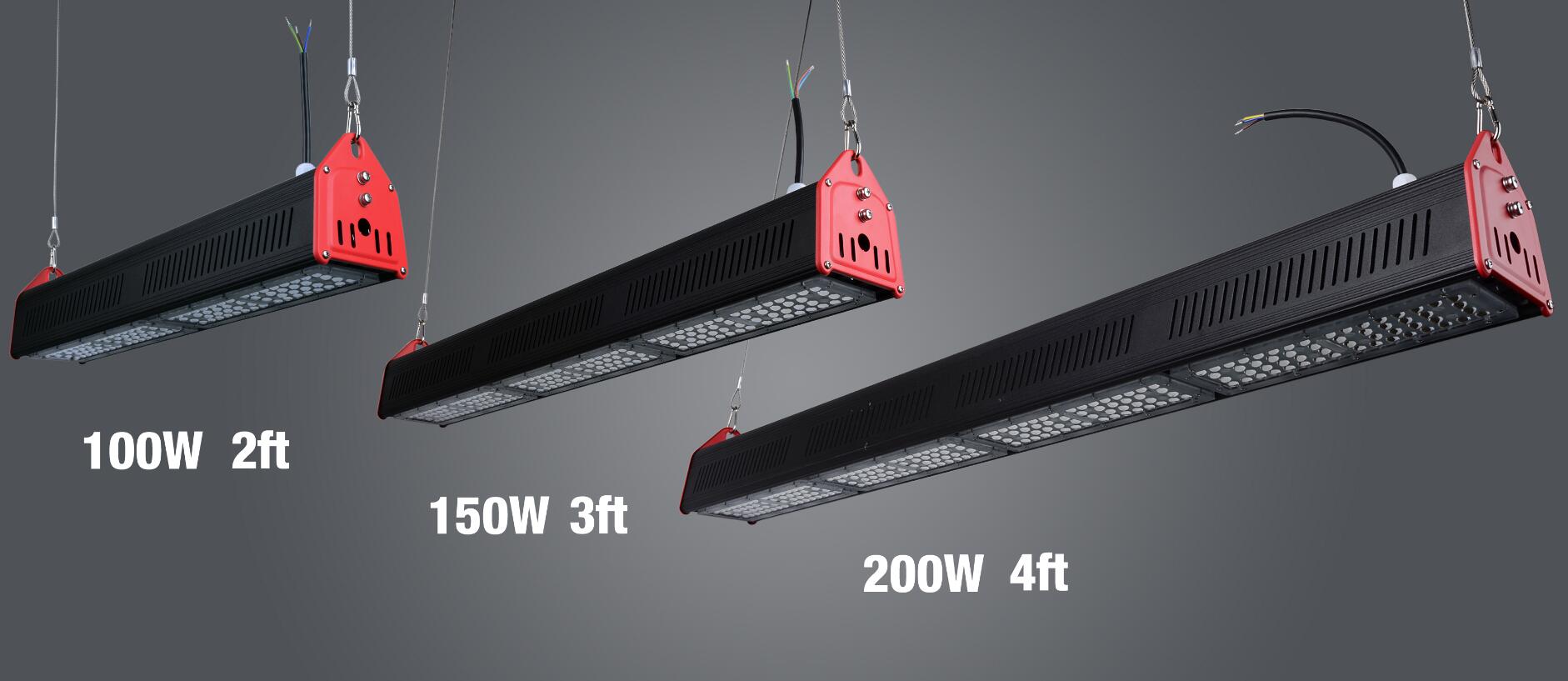

Size of all Linear High Bay Ligts


LSLHBL-50W-B: 353*115*144mm (13.90' * 4.53' * 5.67')
LSLHBL-100W-B: 620*115*144mm (24.41' * 4.53' * 5.67')
LSLHBL-150W-B: 887*115*144mm (34.92' * 4.53' * 5.67')
LSLHBL-200W-B: 1154*115*144mm (45.43' * 4.53' * 5.67')
LSLHBL-240W-B: 1421*115*144mm (55.94' * 4.53' * 5.67')


Packing of all linear high bay lights


50W: 1pc/carton carton size: 41*19*22cm
100W: 1pc/carton carton size: 67*19*22cm GW: 4.9Kg

150W: 1pc/carton carton size: 95*19*22cm GW: 5.95Kg

200W: 1pc/carton carton size: 122*19*22cm GW: 6.30Kg
240W: 1pc/carton carton size: 150*19*22cm GW: 7.20Kg
