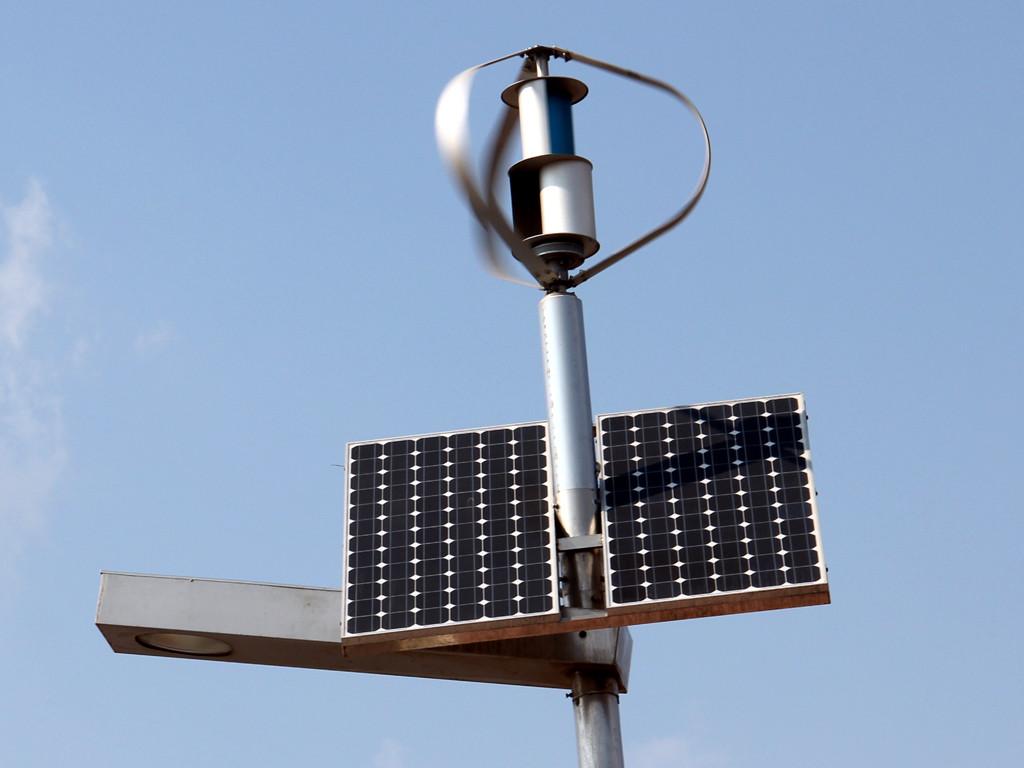

60W Wind Solar Hybrid Street Light System 24V Input Shoesbox LED Street Light
60W Wind Solar Hybrid Street Light System 24V Input Shoesbox LED Street Light
60W Wind Solar Hybrid Street Light System 24V Input Shoesbox LED Street Light
60W Wind Solar Hybrid Street Light System 24V Input Shoesbox LED Street Light
Specifications
controller :
hybrid smart controller 300W 24V
Place of Origin :
Shenzhen, China
Delivery Time :
15 working days
Brand Name :
Honor Eco
Wind turbine :
300W maglev vertical axis wind turbine
Certification :
CE ISO9001 IEC
MOQ :
1
Supply Ability :
1000 sets per month
Packaging Details :
Plywood
Payment Terms :
T/T
Solar panel :
depends on your lighting hours
Model Number :
HECO-300
battery :
depends on continous working days required if no wind and sun
Price :
Negotiable
Street Light :
60W Shoesbox LED Street Light
Description


60W Wind Solar Hybrid Street Light System 24V Input Shoesbox LED Street Light



1. Brief to 300w wind turbine


The HECO series of vertical axis maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.


Rated power Approx. 300W at 13 m/s (26 mph)
Swept Area 0.8 m2
Height / Diameter 1.23/1.09 m
Weight 27 kg
Shipping Dimensions 1160 x 520 x 790 mm 56 kg
Startup Wind Speed 1 m/s (2.6 mph)
Voltage 12, and 24 V AC
Turbine Controller Smart Wind $ solar hybrid controller
Body Permanent mold cast aluminum
Blades (7) Injection-molded aluminum
Alternator Permanent maglev generator
Overspeed Protection 3 phases short-circuit braking control
Survival Wind Speed 65m/s
Mount Inner diameter 80MM 140mm outer diameter
Wind Speed Operating Range 1-15 m/s (8-49 mph)
Optimum Wind Speed Range (RPM) 8-10 m/s ( 750-800RPM)



2. Feature (Maglev Wind Turbine 300W Along with Solar Light System ):

  • Magnetic levitation technology
  • Independent of the direction of the wind
  • Startup at low wind speed of 1m/s
  • Higher efficiency compared to traditional HAWT
  • Works even in turbulence
  • Visually pleasing appearance
  • Turbine construction is resistant to gale 60m/s (132MPH)
  • Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
  • Design life: at least 20 years
  • Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db

3. Application :


The 300w wind turbine, 12V and 24V for option, is ideal for wind solar hybrid street lights or LED light for parking lots. The unit provides a durable, reliable, and fully customized hybrid solution to wind solor hybrid power systems.

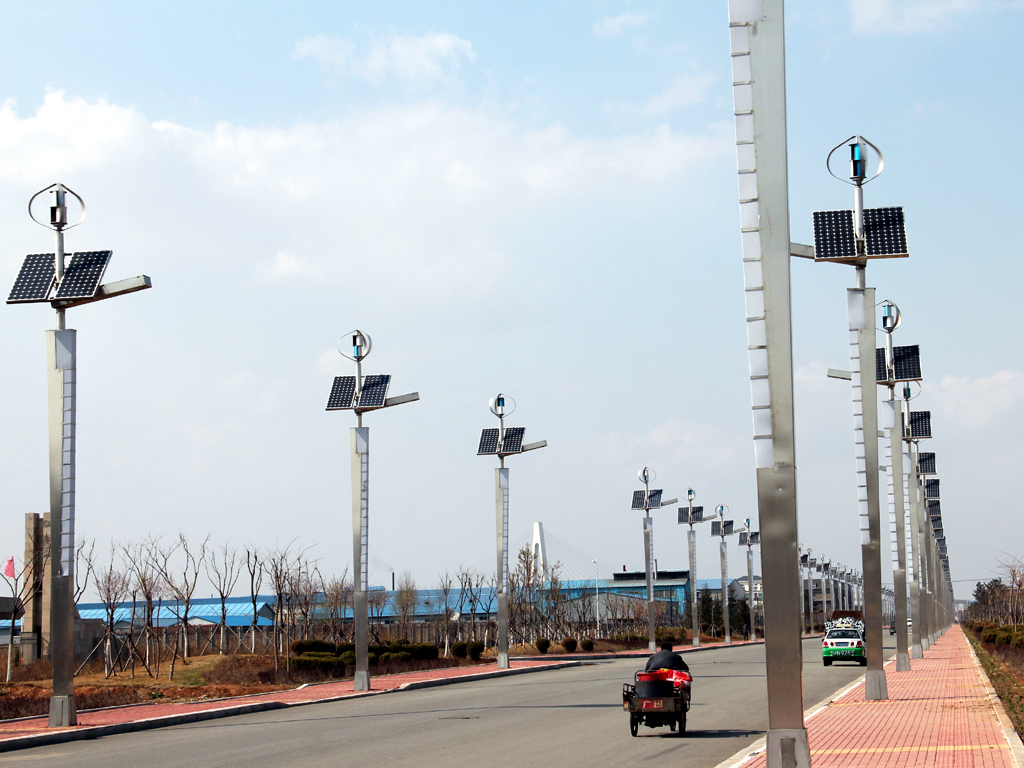

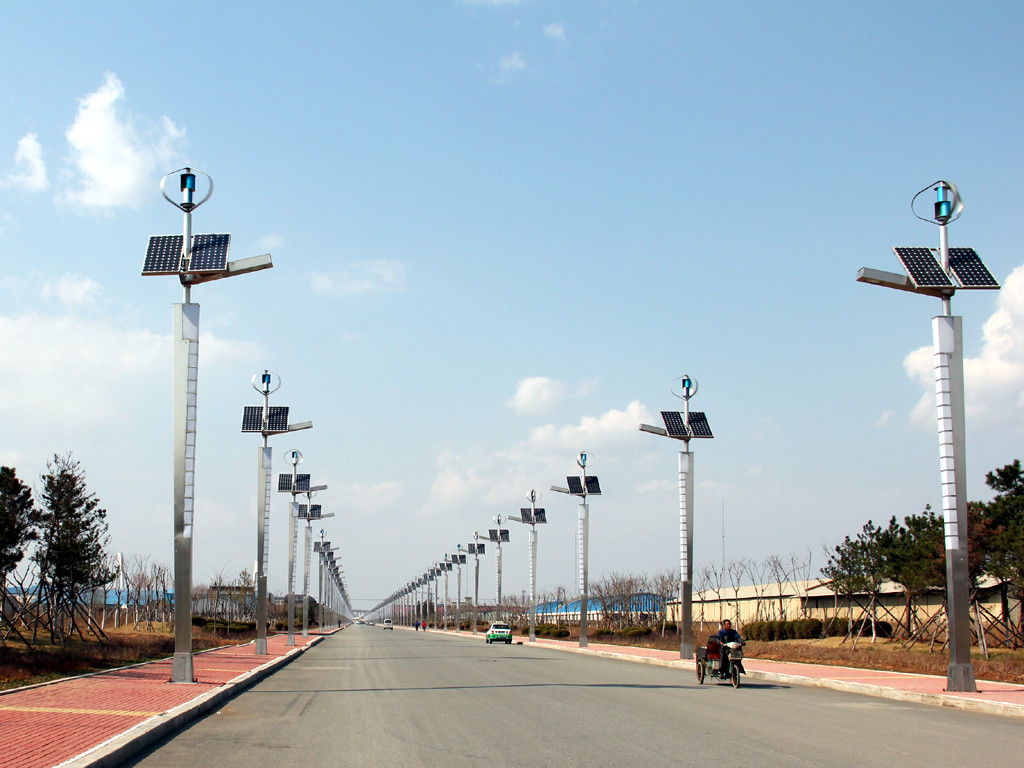

Maglev Wind Turbine 300W Along with Solar Light System as following:
