Low Speed 1KW Magnetic Levitation Wind Turbine on Husum Wind Energy Exhibition
Low Speed 1KW Magnetic Levitation Wind Turbine on Husum Wind Energy Exhibition
Low Speed 1KW Magnetic Levitation Wind Turbine on Husum Wind Energy Exhibition
Low Speed 1KW Magnetic Levitation Wind Turbine on Husum Wind Energy Exhibition
Specifications
Price :
Negotiable
Height/Diameter :
2.4/2.34M
Blades Qty :
3
Most popular :
Home use
Delivery Time :
20 days
Generator Type :
AC,3 phase
Model Number :
HECO-1000
Mertial :
Aluminum alloy
Start-up wind speed :
1.5m/s
Supply Ability :
200 sets per month
Place of Origin :
China
Survival wind speed :
60m/s
Packaging Details :
Wooden case
Brand Name :
Honor Eco
Certification :
CE, ISO9001, IEC61400
Color :
Green and blue or customize
Past test :
Wind Farm
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Description

Low wind speed statr-up 1KW Magnetic Levitation Wind Turbine on Husum Wind Energy Exhibition



Quick detail


1. Magnetic levitation technology

2. Independent of the direction of the wind

3. Startup at low wind speed of 1m/s

4. Higher efficiency compared to traditional HAWT

5. Magnetic Levitation Wind Turbine Works even in turbulence

6. Visually pleasing appearance

7. Turbine construction is resistant to gale 60m/s (132MPH)


Description


The HECO series of Magnetic Levitation Wind Turbine undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple subjects.


The 1KW Magnetic Levitation Wind Turbine was exhibited in Husum Wind Energy Exhibition in 2012. Visitors were surprised by the turning heavy wind turbine which was blowed by a fan. The magnetic levitation technology is firstly applied to wind turbine, and the theory is just like maglev train. There's no friction, no gear inside the alternator. Breeze can start up it. The unique wind turbine is with following design benefits:


1, Lighting Arrester: On the top of wind turbine, you can see a ball that we called Lighting Arrester. It can keep the outdoor system safe from the thunder and lightning during the raining days or storm weather.

2, Blades: Three blades material is Aluminum Alloyed and with "DACROMAT" technical treatment. The design is similar to Aircraft Wings. One side is thicker and the other side is thinner. Also they are in highly conformance so that can balance the wind turbine.

3, Wind Cone: The Wind Cone is a suction device. The Material is also Aluminum Alloyed and with Anti-Oxidation Treatment. The red and blue color decorated wind cone, makes the wind turbine special beautiful and also protect the flying from been hurt.

4, Alternator: The maglev wind generator's most important part. Adopt with Magnet Levitation Technology, no mechanic friction, silent and easy rotating.

5, Breaker: The mechanic breaker at the alternator allows you the third way to break our maglev wind turbine.


Application

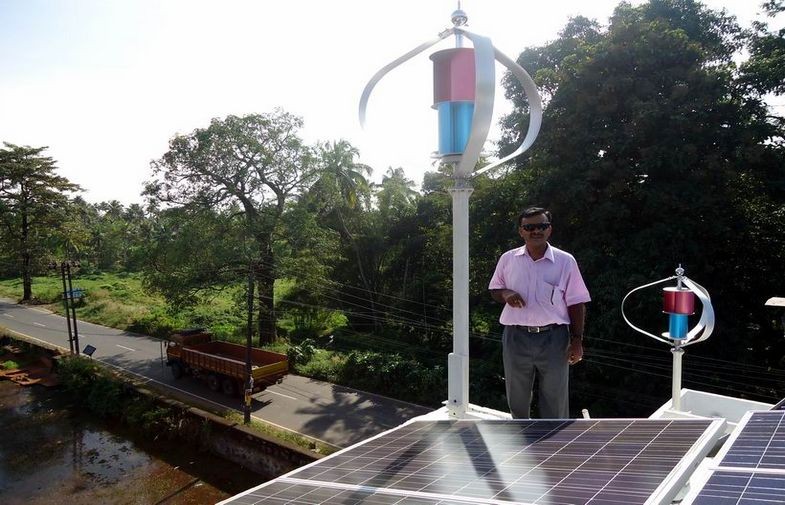

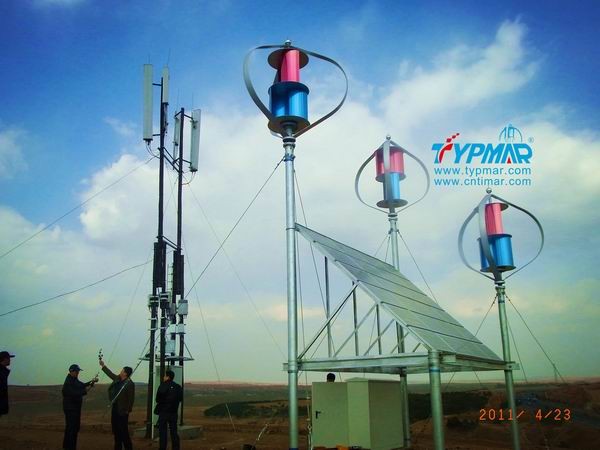

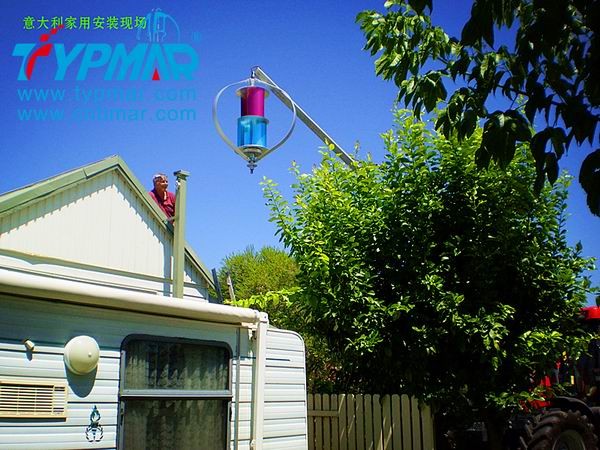

The magnetic levitation wind turbine 1000W can be used for homes, telecom station, and farms. It can be on grid and off grid, depends on the requirement from client.


Specification



tems HECO1000
Rated power 1000W
Dimension (Height/Diameter) Ø2200mm / 2400mm
Weight 180 kg
Blade material Aluminum Alloy
Blade quantity 3
Swept area ㎡ 3.6
Min starting wind speed 1.5 m/s
Cut-in wind speed 3.5m/s
Rated wind speed 13m/s
Cut-off wind speed 15m/s
Survival wind speed 60m/s
Generator type AC,3Phases
Controller Output Voltage 48V
Controller Braking System 3-phase short circuit by NFB brake
Ambient Temperature -40～50 ℃
Noise Less than 40dB
Annual Energy Production (@ 5 m/s) about 750 kWh


Advantages


HAWT AND MVAWT

Item

Horizontal axis (HAWT)

Vertical axis (EML)

Start wind speed

High(≥3m/s)

Low(1m/s)

Wind conditions required

Require stable wind direction

Any wind direction

Encountered turbulence

Reduce the efficiency

Efficiency is not affected

Power stability

Change by wind direction

Without any wind effect

Noise

Large(45 decibels or more)

Low noisy (because there is no mechanical friction)

Product appearance

Normal

Beautiful

Installation height

High(need to avoid the terrain turbulence)

Low(not afraid of turbulence)

Installation location

Just in open area like suburb

Any location

Generator material

Plastic or composite

metal

Structure strength

Poor (easy to broken)

High(double strengthen arm)

Resistance of wind speed

Poor(about 40 m/s)

High
