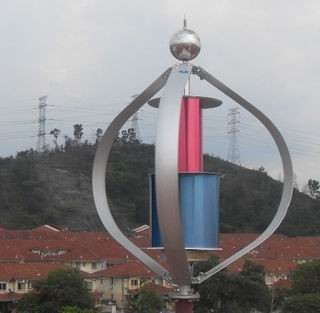

Residential Maglev Wind Turbine 400W 48V At Rooftop
Residential Maglev Wind Turbine 400W 48V At Rooftop
Specifications
Place of Origin :
China
Safety :
good craft and material in manufacturing
Intertek report No :
141200288SHA-001
Delivery Time :
15 -25days
Domestic Standard :
GB/T 29494-2013
Packaging Details :
Plywood
Wind Input :
Three Phase AC
International Certificate :
IEC by Intertek tested at Nanao test site China
Brand Name :
Honor Eco
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000 sets/ month
MOQ :
1 set
Logo :
Honor Eco
Generator Type :
Direct Drive
Model Number :
HECO-400W
Certification :
CE, ISO9001, IEC61400
Price :
Negotiable
Sound Pressure Level :
less than 40db at 8m/s
Description


Residential Maglev Wind Turbine 400W 48V At Rooftop



Description

Honor Eco maglev wind turbine have 6 models, 200W, 300W, 400W and 600W, 1KW, 3KW are for hybrid street lighting, home use, telecom station or any place need independent power.

400W 48V Maglev wind turbine mainly designed for residential application, the wind turbine is easy starting up, light weight and small in size. While the private home with green energy power system installed, you can find it’s a beautiful view for the urban city as well as the following benefits.

Quick Detail

1, No Vibration-Means you can mount anywhere including on your house roof
2, No Noisy-Means quiet enjoyment of living
3, No Frication-Means the equipment lasts longer due to no wear & tear
4, Low start-up wind speed-Means higher average power output
5, No rust - use Aluminum Alloy material, technical treatment by DACROMAT
6, No fade- after anti-oxidation treatment
7, Strong adaptability-means can be used for land, beaches, weak offshore wind
Regional power, lighting etc.

Technical Specification


Maglev Wind Turbine Rated Power 400W
Size (Height / Diameter) 1324/1457mm
Turbine Weight 42 KG
Blades Material Aluminum Alloy
Blades Qty. 7 (4S+3D)
Start-up Wind Speed 1m/s
Cut-in Wind Speed 2.5m/s
Rated Wind Speed 12m/s
Cut out Wind Speed 15m/s
Survival Wind Speed 65m/s
Generator Type 3 Phase AC
Controller Output Voltage DC48V
Controller Output Current <20 Amp
Ambient Temperature -40 ~ 50 ℃
Controller Braking System 3 -Phase short circuit by NFB brake
















Wind Speed (m/s) Energy Output (watt)
1m/s 0 watt
3m/s 5.65 watt
5m/s 27.13 watt
8m/s 77.89 watt
9m/s 112 watt
12m/s 285 watt
14m/s 350 watt
15m/s 522 watt












Application:


The practical appication of the maglev wind turbine as below:

1) Power supply for ships

2) Electricity for agriculture and fishery

3) Landscape education of wind energy and electricity

4) Wind-hydraulic generation system

5) Public electricity supply for building

6) Romote area

7) Independent house

8) Correspondence base

9) Street light

10) Electricity supply for community

11) Traffic signals

12) Independent smart power island
