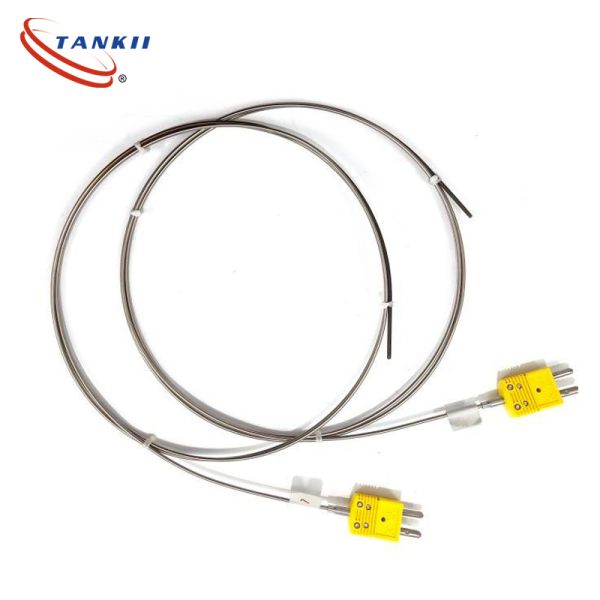

K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
K Type PFA Insulated Thermocouple Wire
Specifications
Brand Name :
Tankii
Model Number :
K
Certification :
Rohs, SGS
Place of Origin :
China
MOQ :
10pc
Price :
Negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000Ton per year
Delivery Time :
7 days
Packaging Details :
500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Item :
Tankii Mineral Insulated / PFA Insulated Thermocouple Wire Type K With Connector For High Temperature
Conductor type :
K type thermocouple grade wire
Insulation :
MgO2
Standard :
ANSI/IEC/GB
Lead time :
3~10 days after getting the deposit
Type :
K
Temperature range :
-200~1100 C
Application :
Temperature measurement，Contact thermometer
Description

Tankii Mineral Insulated / PFA Insulated Thermocouple Wire Type K With Connector For High Temperature

Tankii can supply thermocouple cable, wire, customized sensors.

Types including: K, J, E, T, N,S, R, B

Bare wire size: 0.05~12mm

Cable size: 0.1~30mm2

MI cable size: 0.5~12.7mm

Type K
Insulation MgO2
Temperature -200~1100℃
Accuracy Class 1 (-/+1.1℃)
Conductor +NiCr, -Ni

Accuracy tolerance of MI cable: when the reference end is 0 degree, the tolerance shall be in accordance

with GB/T16839.-2 or IEC584

Type

 Class of Accuracy
I II III
Tolerance Temp-℃ Tolerance Temp-℃ Tolerance Temp-℃
K ±1.5℃ or ±0.4% t -40~1000 ±2.5℃ or ±0.75% t -40~1000 ±2.5℃ or ±1.5% t -200~40
E -40~1000 -40~1000 -200~40
N -40~800 -40~800 -200~40
J -40~750 -40~750 -200~40
T ±0.5℃ or ±0.4% t -40~350 ±1.0℃ or ±0.75% t -40~400 ±1.0℃ or ±1.5% t -200~40

The standards we can meet for thermocouple :
ASTM (American Society for Testing and Materials) E 230
ANSI (American National Standard Institute) MC 96.1
IEC (European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN (Deutsche Industrie Normen) EN 60584 -1/2
BS (British Standards) 4937.1041, EN 60584 - 1/2
NF (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324
JIS (Japanese Industrial Standards) C 1602 - C 1610
GOST (Unification of the Russian Specifications) 3044
Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 ~15 days after payment

The type with connector as per customer's request:

K Type PFA Insulated Thermocouple Wire

FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request
4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
5. What is your warranty ?
For most of our products, the warranty will be 12 months.
6. When will I get a solution for defective products?
Within 48 hours (on working days )
7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.

Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
