Tankii K Type Bare Wire High Oxidation Resistance 10-38 Swg Thermocouple Extension Bare Kp Kn Jp Element Cable Copper Wire
Tankii K Type Bare Wire High Oxidation Resistance 10-38 Swg Thermocouple Extension Bare Kp Kn Jp Element Cable Copper Wire
Tankii K Type Bare Wire High Oxidation Resistance 10-38 Swg Thermocouple Extension Bare Kp Kn Jp Element Cable Copper Wire
Tankii K Type Bare Wire High Oxidation Resistance 10-38 Swg Thermocouple Extension Bare Kp Kn Jp Element Cable Copper Wire
Specifications
Brand Name :
TANKII
Model Number :
type K
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5kg
Payment Terms :
Western Union, T/T
Application :
Construction
Conductor material :
Copper
Jacket :
Rubber
Insulation :
XLPE
Conductor :
7/19 stranded copper
Name :
Fire Resistant Cables
Description

Tankii K Type Bare Wire High Oxidation Resistance 10-38 Swg Thermocouple Extension Bare Kp Kn Jp Element Cable Copper Wire

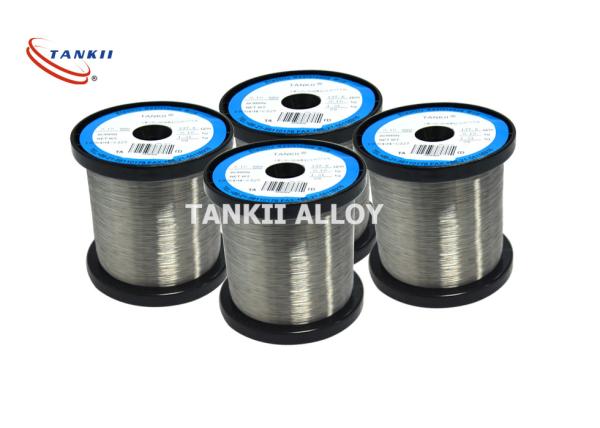

Shanghai Tankii Alloy Material Co., Ltd. offers Tankii 10~38 SWG K type thermocouple element bare wire. This NiCr-Ni/NiAl (Type K) thermocouple wire is widely used in basemetal thermocouples, especially at temperatures above 500°C. It boasts strong resistance to oxidation compared to other base metal thermocouples, providing high EMF against Platinum 67, excellent temperature accuracy, sensitivity, and stability, all at a low cost.

Recommended for oxidizing or inert atmospheres, this thermocouple wire should not be used in alternatively oxidizing and reducing atmospheres, atmospheres with *** gases, long periods in a vacuum, or low oxidizing atmospheres like hydrogen and carbon monoxide.

NiCr-NiAl thermocouple wire can be customized to meet customers' specific chemical composition requirements. It is available with insulation materials such as PVC, PTFE, FB, or as per customer specifications.

Detailed Parameters:

  • Thermocouple Type: K
  • Insulation Material: PVC, PTFE, FB, or custom
  • Temperature Range: >500°C
  • Resistance to Oxidation: High
  • EMF Against Platinum 67: Strong
  • Accuracy: Excellent
  • Sensitivity: High
  • Stability: Reliable
Chemical Composition

Conductor Name
Polarity
Code		 Nominal Chemical Composition /%
Ni Cr Si

Ni-Cr
Positive
KP
90
10
--

Ni- Si
Negative
KN
97
--
3
Working Temperature

Diameter/mm
Long time Working temperature /ºC
Short period Working temperature /ºC

0.3
700
800

0.5
800
900

0.8,1.0
900
1000

1.2,1.6
1000
1100

2.0,2.5
1100
1200

3.2
1200
1300

Thermocouple Application Areas:

  • Glass, Ceramics, Clay Tiles, Bricks
  • Brick and tile curing in long kilns
  • Traveling thermocouples to survey kiln temperatures
  • Glass/fiberglass manufacturing plants
  • High temperature areas

Note: Insulation can be any one or a combination of those listed to meet individual requirements.

For high-quality thermocouples for various industrial applications, trust Shanghai Tankii Alloy Material Co., Ltd. to provide reliable and accurate temperature measurements.
