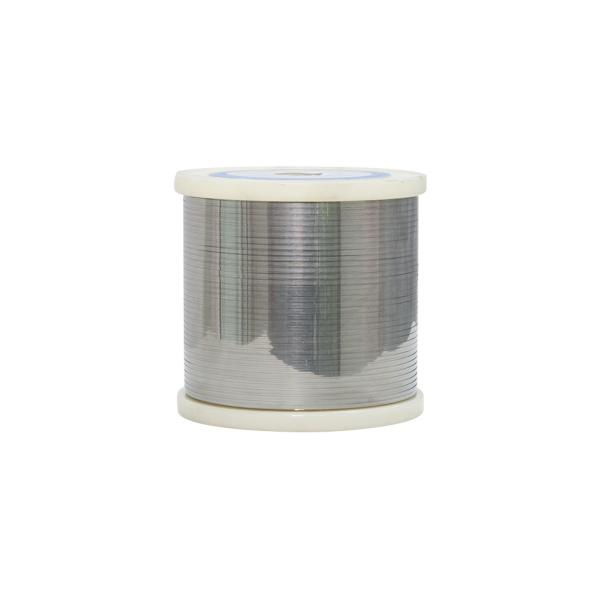

Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Specifications
Brand Name :
TANKII
Model Number :
0Cr23Al5
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
10kg
Price :
usd15.1/kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 tons/year
Delivery Time :
7 days after getting the payment
Packaging Details :
In Coil
resistivity :
1.35
density :
7.25
Thickness :
0.02~ 0.1mm
Package :
wooden box or wooden pallet
Leading time :
about 7 dyas
item :
Automobile Exhaust Device Resistance Heating Strip 0cr23al5 With 200mm Width
Description


Bright 0.1mm FeCrAl Alloy 0Cr23Al5 Kan-thal D Electric Heating Resistance Flat Wire
1. Description
FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
We also produce below grades:
Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
TANKII A1, TANKII, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF TANKII AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, TANKII APM
TANKII D, TANKII, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812


2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm

2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)

3).Low resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm

4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm

5).Wire: Diameter:0.05mm-10.0mm

6) Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

3. Details of tankii strips

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
Properties Grade
1Cr13Al4
0Cr25Al5
0Cr21Al6
0Cr23Al5
0Cr21Al4
0Cr21Al6Nb
0Cr27Al7Mo2
Main Chemical Composition
(%)
Cr
12.0-15.0
23.0-26.0
19.0-22.0
22.5-24.5
18.0-21.0
21.0-23.0
26.5-27.8
Al
4.0-6.0
4.5-6.5
5.0-7.0
4.2-5.0
3.0-4.2
5.0-7.0
6.0-7.0
Re
opportune
opportune
opportune
opportune
opportune
opportune
opportune
Fe
Bal.
Bal.
Bal.
Bal.
Bal.
Bal.
Bal.






Nb0.5
Mo1.8-2.2
Max Continuous Service Temperature(oC)
950
1250
1250
1250
1100
1350
1400
Resisivity 20oC (Ωmm2/m)
1.25
±0.08
1.42
±0.06
1.42
±0.07
1.35
±0.07
1.23
±0.07
1.45
±0.07
1.53
±0.07
Density(g/cm3)
7.4
7.1
7.16
7.25
7.35
7.1
7.1
Thermal Conductivity
52.7
46.1
63.2
60.2
46.9
46.1
45.2
(KJ/m@h@oC)
Coefficient of Thermal Expansion(α×10-6/oC)
15.4
16
14.7
15
13.5
16
16
Approximate Melting Point( oC)
1450
1500
1500
1500
1500
1510
1520
Tensile Strength(N/mm2)
580-680
630-780
630-780
630-780
600-700
650-800
680-830
Elongation(%)
>16
>12
>12
>12
>12
>12
>10
Section Variation
65-75
60-75
65-75
65-75
65-75
65-75
65-75
Shrink Rate (%)
Repeatedly Bend Frequency(F/R)
>5
>5
>5
>5
>5
>5
>5
Hardness (H.B.)
200-260
200-260
200-260
200-260
200-260
200-260
200-260
Continuous Service Time
no
≥80/1300
≥80/1300
≥80/1300
≥80/1250
≥50/1350
≥50/1350
Micrographic Structure
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Magnetic Property
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic
Magnetic


Typical application areas of air heating cassettes

  • Pre-heating of aluminium

  • Homogenising of aluminium

  • Heat treatment in the metallurgical industry

  • Drying of ore concentrates

  • Drying of materials in the wood processing industry

  • Roasting and drying in the food industry

  • Baking in large bakery ovens

  • Drying of chemicals

  • Drying and stoving of paints (stoving furnaces)

Bright 0.1mm FeCrAl Alloy 0Cr23Al5 TANKII D Electric Heating Resistance Flat Wire
Should have any question, please contact us freely.
