CuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables
CuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables
CuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables
CuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables
Specifications
Brand Name :
tankii
Model Number :
CuNi23
Certification :
-
Place of Origin :
china
MOQ :
10kg
Price :
USD25-30/kg
Payment Terms :
T/T
Supply Ability :
50000ton/year
Packaging Details :
case
Delivery Time :
10-15Days
Serves :
Small Order Accepted
Sample :
Sample Available
Description

CuNi23 Alloy wire use for under floor heating cable


Product Description
CuNi23Mn low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
30 1.0 - - Bal - ND ND ND ND

Mechanical Properties

Max Continuous Service Temp 350ºC
Resisivity at 20ºC 0.35%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity 10(Max)
Melting Point 1170ºC
Tensile Strength,N/mm2 Annealed,Soft 400 Mpa
Tensile Strength,N/mm2 Cold Rolled Mpa
Elongation(anneal) 25% (Max)
Elongation(cold rolled) (Max)
EMF vs Cu, μV/ºC (0~100ºC) -37
Micrographic Structure austenite
Magnetic Property Non

Resistance Alloy- CuNi30Mn Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft

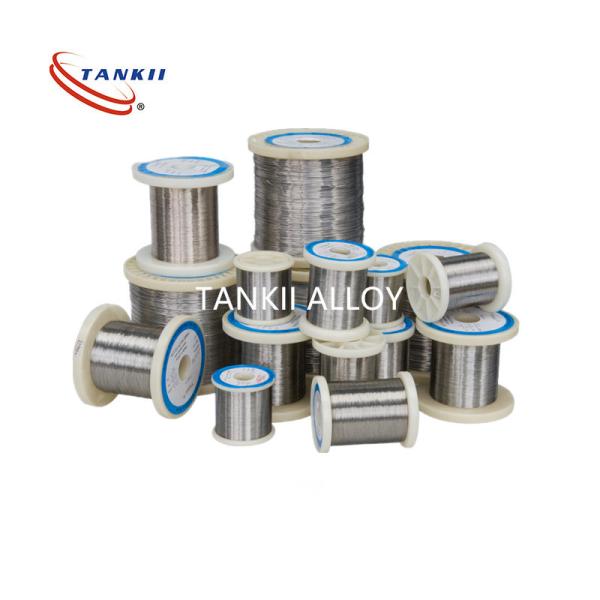

Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Enameled condition is availableCuNi23 Copper Nickel Alloy Wire for Underfloor Heating CablesCuNi23 Copper Nickel Alloy Wire for Underfloor Heating CablesCuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables
