ER308L Stainless Steel MIG TIG Welding Wire 1.6mm 2.0mm 3.2mm
ER308L Stainless Steel MIG TIG Welding Wire 1.6mm 2.0mm 3.2mm
ER308L Stainless Steel MIG TIG Welding Wire 1.6mm 2.0mm 3.2mm
ER308L Stainless Steel MIG TIG Welding Wire 1.6mm 2.0mm 3.2mm
Specifications
Brand Name :
Tankii
Model Number :
Er308L
Place of Origin :
China
MOQ :
12.5kg
Price :
usd+5+kg
Payment Terms :
L/C, D/A, D/P, MoneyGram
Supply Ability :
100000ton/month
Delivery Time :
10days
Packaging Details :

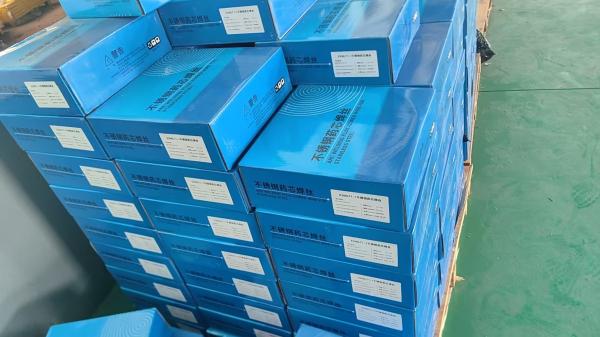

Paper box+export wooden pallet
Description

ER308L Stainless Steel MIG TIG Welding Wire 1.6mm 2.0mm 3.2mm

Product Description

MIG wire er309/ER308/ER316/ER304 welding wire 1.6mm 2.0mm 3.2mm stainless steel filler alloy wire

Features:

stainless steel welding wire is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.

Application:

stainless steel welding wire used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.

stainless steel welding wire conform with:

AWS: ER308 YB/T: H0Cr21Ni10 JIS: Y308

AWS: ER308L YB/T: H00Cr21Ni10 JIS: Y308L

AWS: ER308LSi JIS: Y308

Varieties Deposited Metal Mechanical Properties Wire Chemical Composition
Tensile Strengthσb(Mpa)

Elongation

δ5(%)

 C Si Mn Cr Ni Mo
ER308 607 41 0.040 0.34 1.82 20.13 9.50 -
ER308L 578 42 0.024 0.42 1.65 20.10 10.33 -
ER308LSi 585 39 0.020 0.70 1.47 20.11 10.50 -

Wire Type Specification Wire Tray Weight

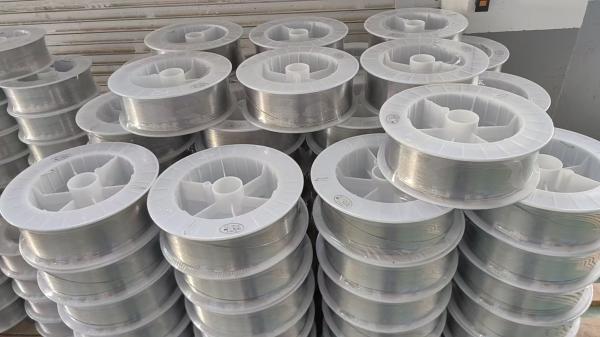

MIG wire Φ0.8~1.6(mm)

D100mm D200mm

D300mm D270mm

 1kg 5kg 15kg 20kg
TIG wire Φ1.6~5.0(mm) Length: 1000mm 5kg 10kg
