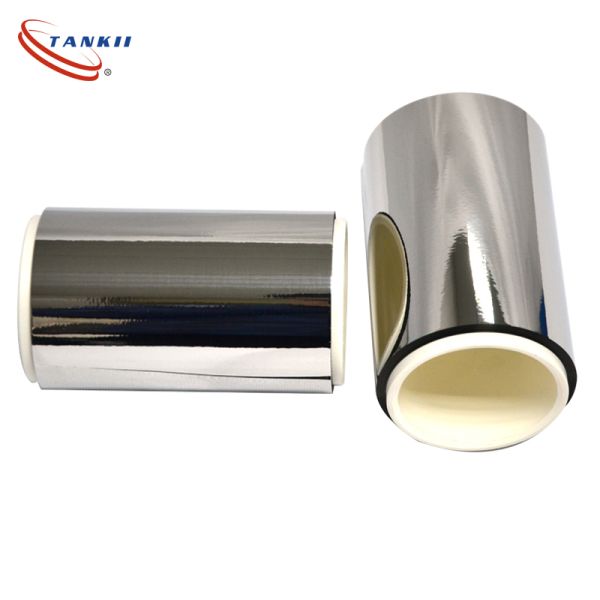

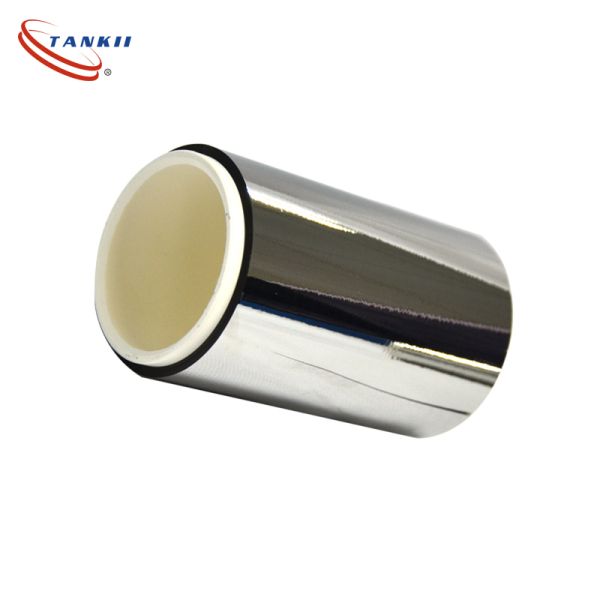

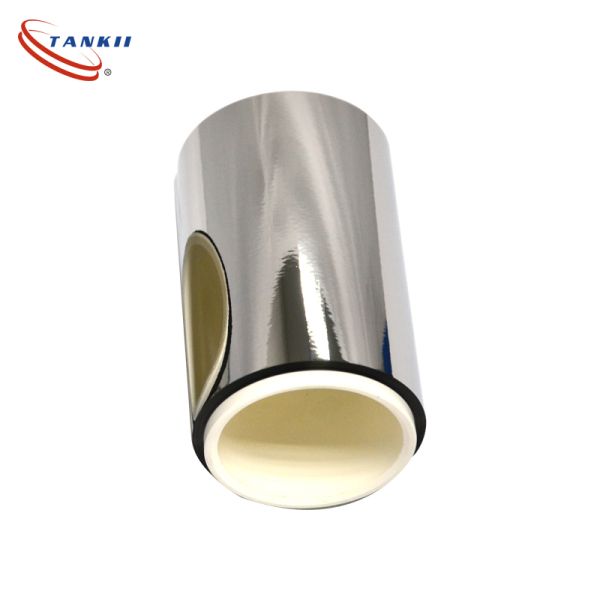

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Specifications
Brand Name :
Tankii
Model Number :
Pure Nickel Foil
Certification :
ISO9001
Place of Origin :
China
MOQ :
30Kg
Price :
25-40USD/Kg
Payment Terms :
Western Union,T/T
Supply Ability :
500Tons/Kg
Delivery Time :
15-30days
Packaging Details :
case
Electrical Resistivity (20°C) :
6.97 μΩ·cm
Thermal Conductivity :
90.7 W/m·K
Density :
8.89 - 8.9 g/cm³
Melting Point :
1453°C
Tensile Strength (Annealed) :
450 - 550 MPa
Description

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip

Pure Nickel Foil with purity >99.5% (typically 99.9% to 99.98%) is a critical material in the battery industry, primarily used as current collectors, battery tabs, connectors, and substrates for various battery chemistries. Grades include Nickel 200 (N02200), Nickel 201 (N02201), N4, N6, and ultra-high purity variants.

Grade Ni+Co (min) Cu (max) Fe (max) Mn (max) C (max) Si (max) S (max) Purity Level
N4 99.9% 0.015% 0.04% 0.002% 0.01% 0.03% 0.001% 99.9%

N6 99.5% 0.10% 0.10% 0.05% 0.10% 0.10% 0.005% 99.5%

Nickel 200 (N02200) 99.0% 0.25% 0.40% 0.35% 0.15% 0.35% 0.01% 99.0%

Nickel 201 (N02201) 99.0% 0.25% 0.40% 0.35% 0.02% 0.35% 0.01% 99.0%

Ultra-High Purity 99.98% - - - - - - 99.98%


Physical & Electrical Properties

Electrical Resistivity (20°C) 6.97 μΩ·cm

Thermal Conductivity 90.7 W/m·K
Density 8.89 - 8.9 g/cm³
Melting Point 1453°C

Boiling Point 2732°C

Curie Temperature 360°C
Tensile Strength (Annealed) 450 - 550 MPa

Tensile Strength (Cold Rolled) 550 - 800 MPa
Elongation ≥15%
Hardness 90-220 HV



Packaging & Delivery

Packaging Plastic film + wooden case/pallet; coil packaging

Paper Core ID Ø200mm, Ø300mm, Ø400mm, Ø500mm, or custom

MOQ 1 kg (samples) to 500 kg (production)

Delivery Time 7-15 days (stock), 15-30 days (custom)

Shipping Ports Shanghai, Shenzhen, Ningbo, Mumbai
