Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Specifications
Brand Name :
Tankii
Model Number :
1J46
Certification :
ISO9001 Rohs
Place of Origin :
China
MOQ :
10KG
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000tons per year
Delivery Time :
15-25days
Packaging Details :
Carton box
Description

1J46/Soft Magnetic Alloys/Precision alloy

Mainly used in two areas for energy conversion and information processing

In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.

Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.

Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.

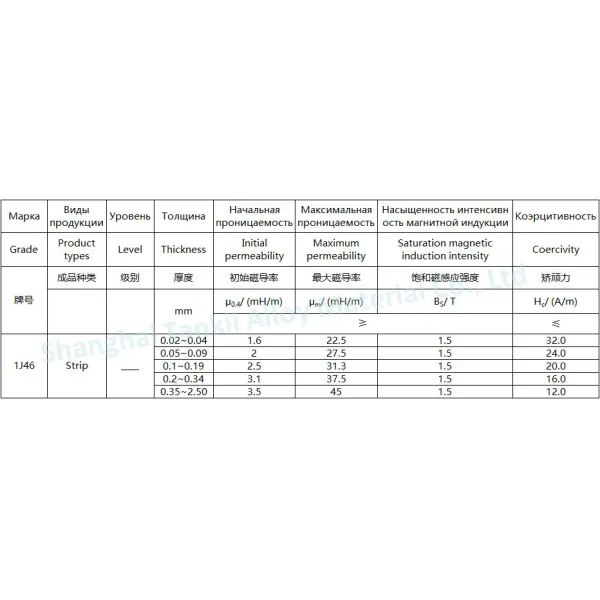

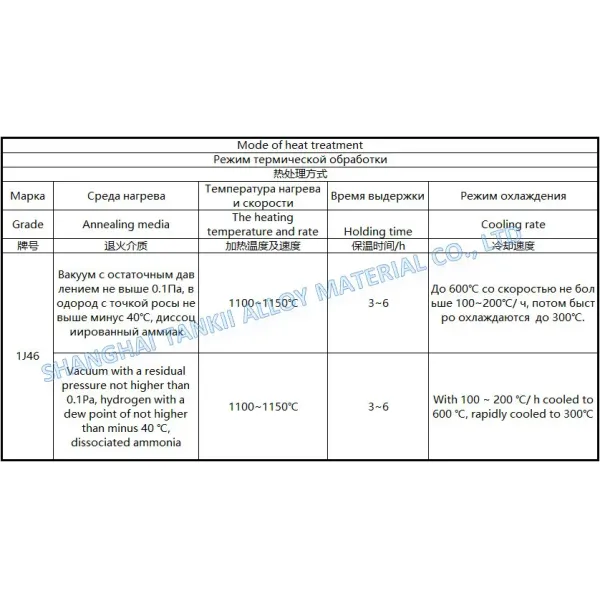

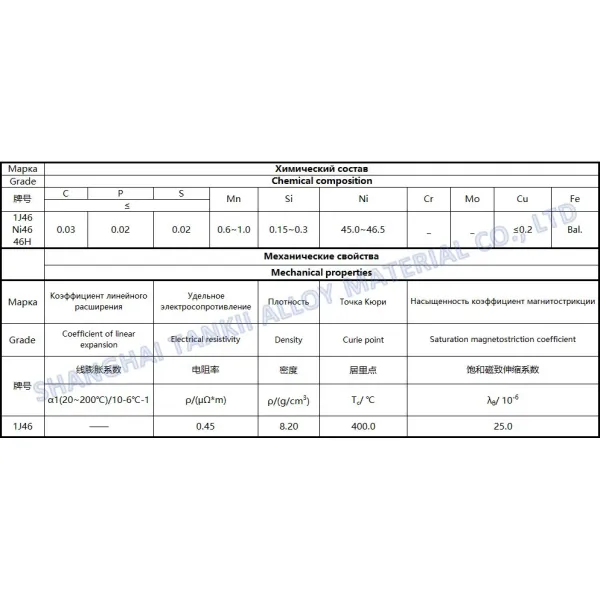

The following are details of our products 1J46:

Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion

Ni46 Permalloy Wire Soft Magnetic High Permeability Precision Alloy Wire for Energy Conversion
