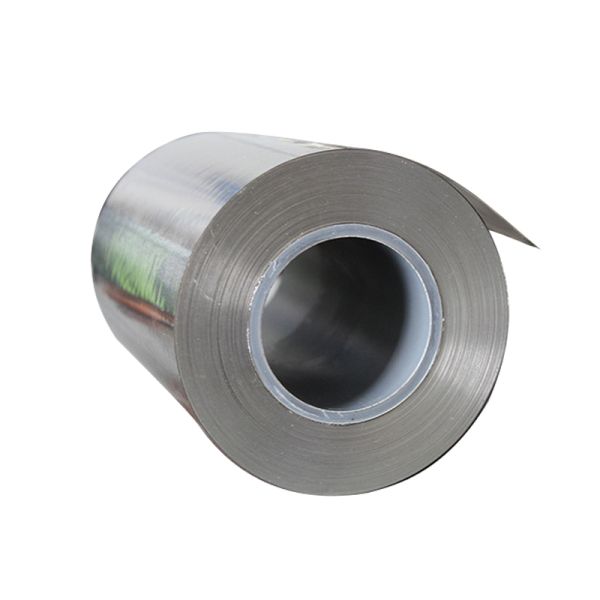

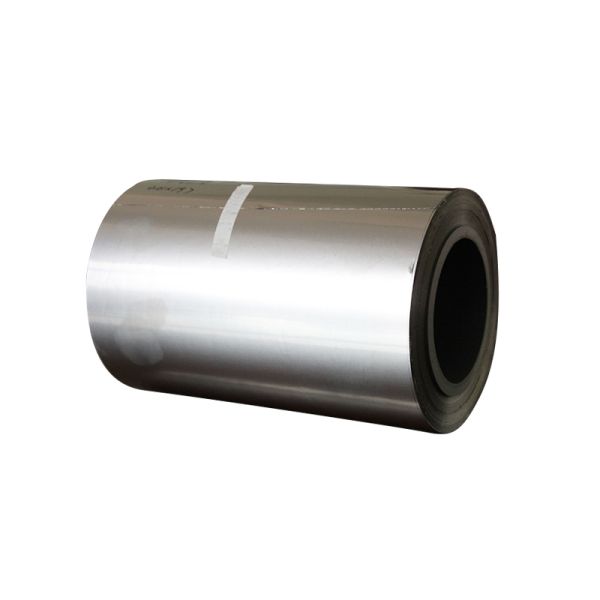

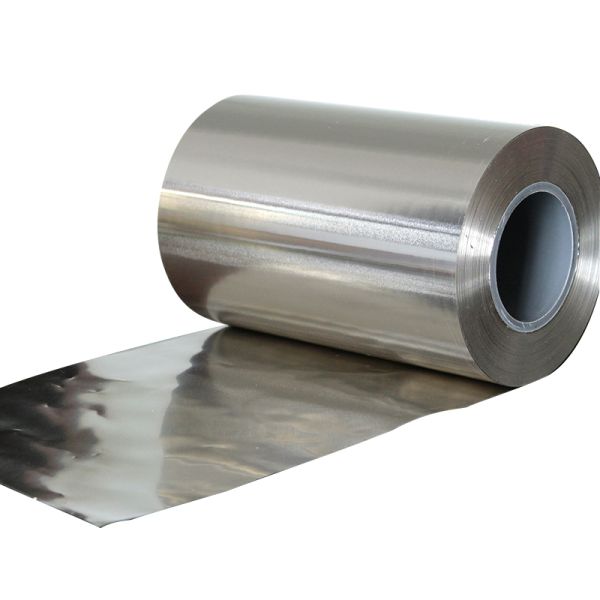

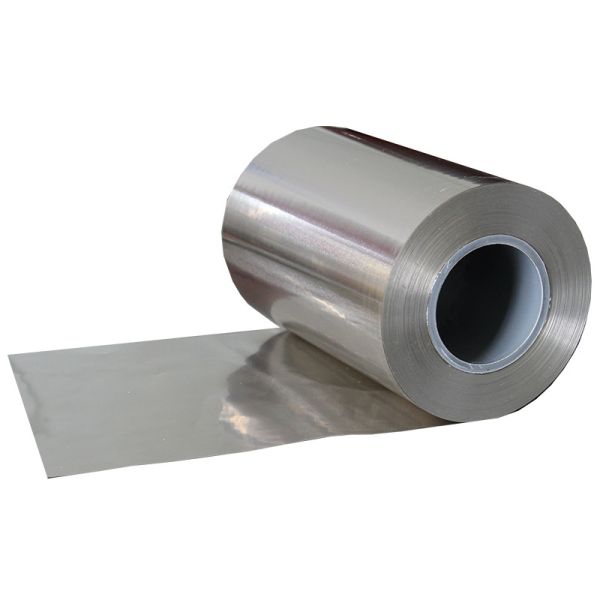

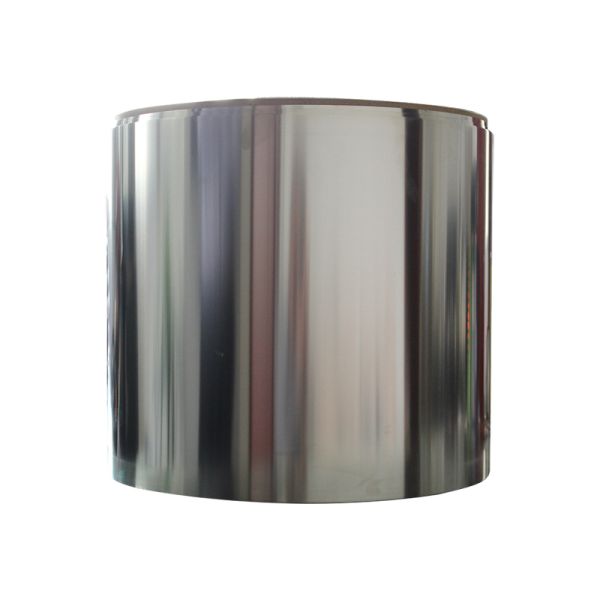

High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)
Specifications
Brand Name :
Tankii
Model Number :
Ni 200/201
Certification :
ISO9001
Place of Origin :
China
MOQ :
5Kg
Price :
25-35USD/Kg
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
5000Kg/Month
Delivery Time :
20-25days
Packaging Details :
case
Density :
8.89g/cm³
Melting Point :
1446°C
Electrical Resistivity :
0.076Ω·mm²/m
Thermal Conductivity :
90.7W/(m·K)
Description

High Purity Nickel Sheet / Nickel Foil / Nickel Strip (Ni 200/201)

1. Product Overview

Pure nickel foil is a high-purity nickel material with excellent electrical conductivity, corrosion resistance, and high-temperature stability. It is widely used in new energy batteries, electronic components, aerospace, and chemical industries.

2. Main Grades & Standards

Grade Standard Nickel Content Characteristics
N4 GB/T 5235-2020 ≥99.9% High purity, low carbon
N6 GB/T 5235-2020 ≥99.5% Commercial pure nickel, general purpose
Ni200 ASTM B162 / UNS N02200 ≥99.5% Excellent corrosion resistance
Ni201 ASTM B162 / UNS N02201 ≥99.5% Low-carbon version for high-temp applications
Nickel 270 DIN 17740 ≥99.95% Ultra-high purity


Technical Standards: Chemical composition per GB/T 5235-2021, foil standards GB/T 2072-2020, YS/T 522-2010, ASTM F3, DIN 17740.

3. Product Specifications

Electrodeposited Nickel Foil

  • Thickness: 0.005～0.05mm
  • Width: 80～1330mm
  • Features: Ultra-thin, surface roughening available (Ra ≥1.5μm)

Rolled Nickel Foil

  • Thickness: 0.02～0.1mm (up to 1.0mm available)
  • Width: 1.5～420/740/927mm
  • Temper: Soft (M), Quarter-hard (1/4H), Half-hard (1/2H), Three-quarter-hard (3/4H), Hard (H)

4. Key Application Fields

Application Field Specific Uses
New Energy Batteries Lithium-ion & Ni-MH battery electrodes, current collectors
Electronics EMI shielding, touch screens, specialty transformers, resistors, capacitors
Aerospace Engine combustion chambers, turbine blades, spacecraft shells
Chemical Equipment Corrosion-resistant vessels, pipelines, valves, heat exchangers
Precision Instruments Thermocouples, high-temp sensors, medical devices
Others Hot stamping, loudspeakers, graphite gaskets

5. Product Advantages

  1. High Purity: 99.5%-99.99% nickel content, strict impurity control
  2. Excellent Conductivity: Low resistivity, ideal for battery current collectors
  3. Corrosion Resistance: Outstanding performance in alkaline and neutral environments
  4. High-Temperature Stability: Melting point 1446°C, stable mechanical properties at high temps
  5. Good Workability: Suitable for stamping, bending, welding, and other secondary processing
  6. Customizable: Non-standard sizes, surface roughening, special packaging available
