Specifications
Brand Name :
Tankii
Model Number :
Ni80Cr20
Certification :
ISO9001
MOQ :
20kgs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500tons per year
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case
Model NO. :
Ni80Cr20
Melting point :
1400
Surface :
Bright, annealed
Sample :
Available
density :
8.4
features :
High resistivity
Shipping method :
By air, sea, express
Max temp. :
1250
Min elongation :
20%
Transport Package :
Wooden Case
Description

Product Description

Nichrome 80 Wire Ni80Cr20 Flat Wire N06003 for Heating Elements

Punctuality is the soul of business/ professional and reliable
Nickel based alloy Nichrome series

OUR ALLOY PRODUCT FEATURES

All our raw material is made from prime material, not recycle material. We have more than 25 years experience in manufacturing resistance heating alloys.

In the market, not all the NiCr alloys are with standard chemical composition and stable resistance. Professional and reliable is the soul of our business.

Product Description


INTRODUCTION OF PRODUCT

A Resistance Alloy used in electrical heating application. It is recommended for use in dry air applications up to 2150 degrees F with good hot strength. It is an alloy of nickel and chromium with high electrical resistance; used for resistance heating elements. Nichrome 80/20 is an ideal material, because it has relatively high resistance and forms an adherent layer of chromium oxide when it is heated for the first time. Material beneath the wire will not oxidize, preventing the wire from breaking or burning out.
Applications:
These elements are commonly found in precision heating applications such as Medical Diagnostics, Satellite, and Aerospace
Electrical appliance industry
Ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements, cartridge elements
SPECIFICATION

Grade: Cr20Ni80 Cronix 80 Resistohm 80 Chromel A

Chemical Composition: Cr 20-23% Ni rest Fe≤1.0

Max. continuous service temp. of element(°C) :1200degrees

Resistivity at 20ºC(μΩ·m):1.09 ohm mm2/m

NiCr series: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60

We also produce other kind of nickel chromium alloys, such as NiCr 60/15, NiCr 80/20, NiCr 35/20, NiCr 30/20. They are also called Chromel A, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1
Chromel 70/30, N7, Hytemco, HAI-NiCr 70, Balco, Tophet 30,
Resistohm 70, Cronix 70, Stablohm 710
Chromel C, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II, Electroloy, Nichrome, Alloy C, MWS-67
Packaging & Shipping
PACKING DETAILS

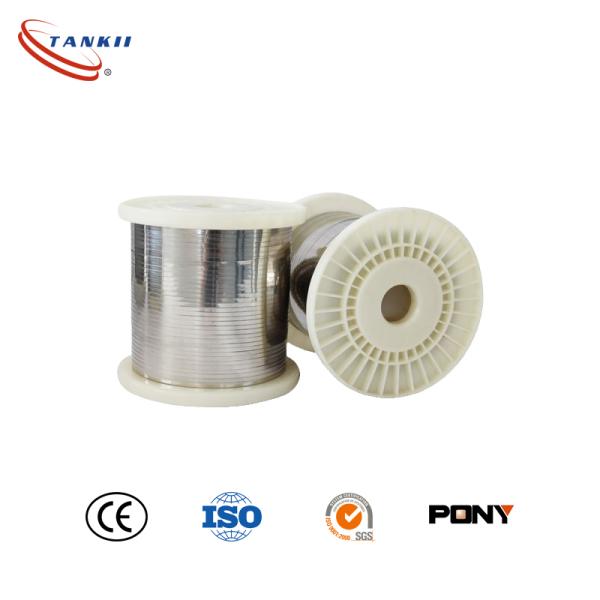

Wire packing in spools

Carton packing with plastic film, plywood box suitable for sea & air delivery


Wire packing in coils

Woven belt packing with plastic film, plywood box or pallet suitable for sea & air delivery

About samples

We can provide samples product and delivery service. Usually 4 to 7 days, the samples can be sent to you hand. As for any information about the sample or any specific requirements of the sample, please contact us via telephone, mail or online trade manager.
