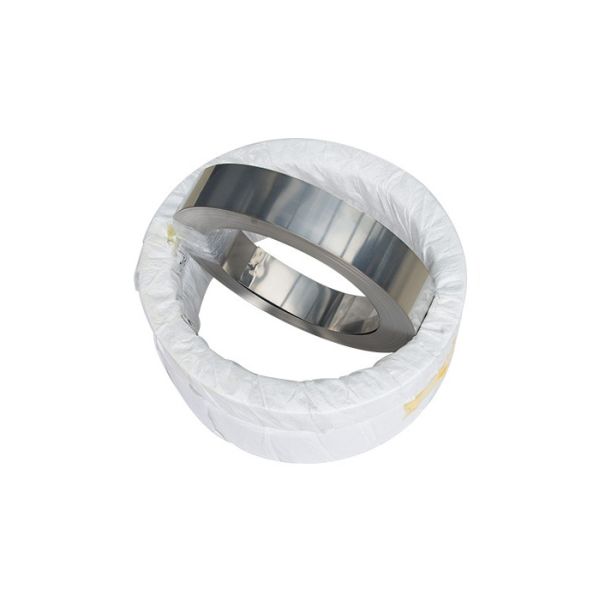

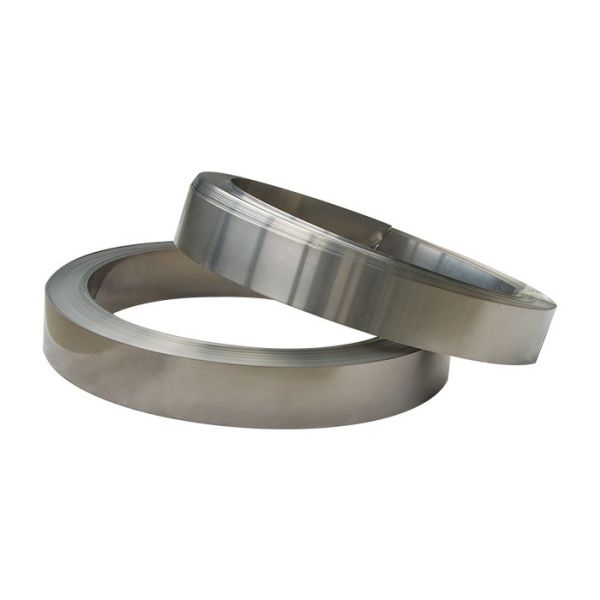

0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
Specifications
Brand Name :
Tankii
Model Number :
Permalloy
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 kg
Price :
USD35~45/kg
Payment Terms :
T/T, Paypal, Western Union, ,
Supply Ability :
1000Ton per year
Delivery Time :
15-35 days after gettting the payment
Packaging Details :
500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Item :
Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI)
Material :
1J85 Permalloy Strip/Plate
Surface :
Bright
size :
0.05mm and above
Length :
custom made
MOQ :
100kg
Description

0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment

Permalloy, also known as iron nickel alloy, has a wide range of nickel content, between 35% and 90%.
The biggest characteristic of Permalloy is its high weak magnetic field permeability.
Their saturation magnetic induction intensity is generally between 0.6-1.0T.
Tankii Group can produce permalloy strip/lplate/wire/rod based on customer's request.

Chemical composition

Composition C P S Mn Si
≤
Content(%) 0.03 0.02 0.02 0.3~0.6 0.15~0.3
composition Ni Cr Mo Cu Fe
Content(%) 79.0~81.0 - 4.8~5.2 ≤0.2 Bal

Heat treatment system
Tankii Grade Annealing medium heating temperature Keep the temperature time/h Cooling rate

Tankii 111-85		 Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa Along with the furnace heating up 1100~1150ºC
3~6		 In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge

Available Shape

Alloys Name Type Dimension

Tankii 111-85		 Wire D= 0.05~8mm

Tankii 111-85		 Strip W= 8~390mm T≥ 0.1mm

Tankii 111-85		 Foil W= 10~100mm T= 0.01~0.1

Tankii 111-85		 Bar Dia= 8~100mm L= 50~1000


Soft magnetic alloy outer magnetic field under the action of easy magnetization, basic disappear after removal of magnetic field of magnetic induction intensity and magnetic alloys.

Application:

Typical application scenarios:
Based on its high magnetic permeability characteristics, permalloy Tankii 111-85 is mainly used for:
Weak magnetic field equipment: high-frequency magnetic head, current transformer, magnetic shielding.
Precision components: sensors, relays, small transformer cores.

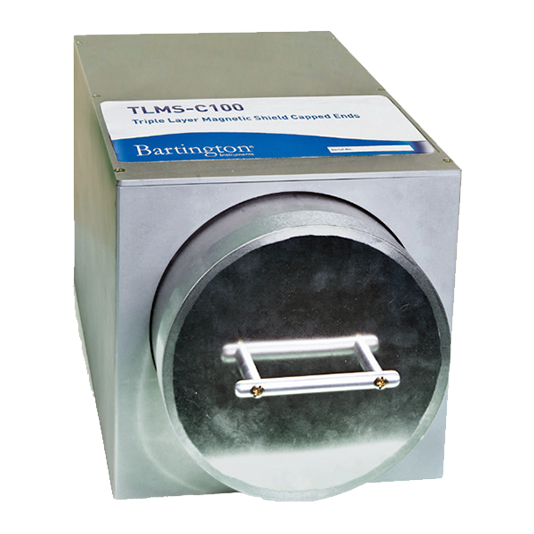

Magnetic Shielding:

0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment

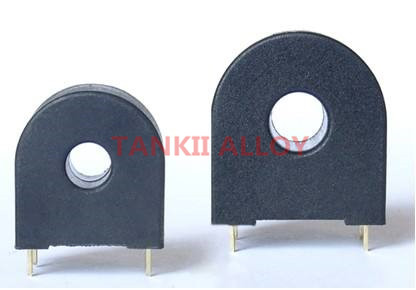

  • Micro precision current transformer

0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment

Package:
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
0.35mm 0.8mm 1.0mm Permalloy Strip/Plate Used In Magnetic Resonance Imaging (MRI) Equipment
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of nickel based alloy products, including nichrome alloy , nickel copper alloy, nickel chromium cobalt alloy , nickel based thermocouple alloy and other related products.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers

Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Welcome to call me at +86-18017475212 or email to me for more details on our products.
