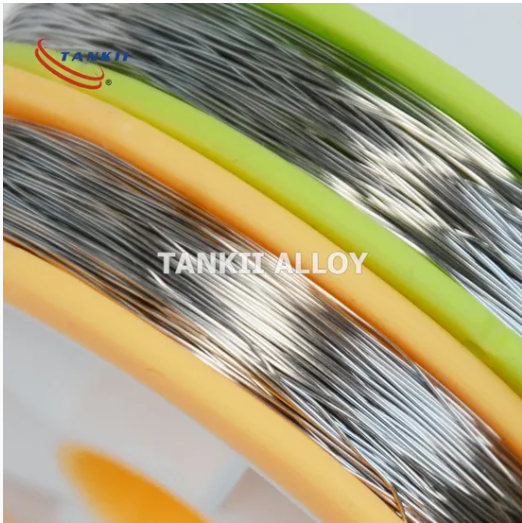

Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )
Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )
Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )
Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )
Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )
Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )
Specifications
Brand Name :
Tankii
Model Number :
Thermocouple Wire ( Type SP/SN )
Certification :
ISO9001
Place of Origin :
China
MOQ :
10M
Price :
45-100USD/kg
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
10000M/month
Delivery Time :
5-7days
Packaging Details :
case
Diameter :
0.1mm-0.5mm
Surface :
bright
Standard :
GB/IEC/BS/DIN
Item :
Diamter 0.5mm prime S type Thermocouple wire
SP :
PT-Rh10
SN :
PT
Description

Diameter 0.5mm 25 SWG platinum wire rhodium Thermocouple wire (Type SP/SN )

Type R, S, and B thermocouple wires are "Noble Metal" thermocouples, which are used in high temperature applications.
Type S thermocouple wire are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples
Platinum rhodium thermocouple wire(S/B/R TYPE)
Platinum Rhodium Assembling Type Thermocouple wire is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting
Insulation material: PVC, PTFE, FB or as per the customer's requirement.

Application of thermocouple wire
• Heating - Gas burners for ovens
• Cooling - Freezers
• Engine protection - Temperatures and surface temperatures
• High temperature control - Iron casting

Parameter of thermocouple wire:

Chemical Composition
Conductor Name Polarity Code Nominal Chemical Composition /%
Pt Rh
Pt90Rh Positive SP 90 10
Pt Negative SN,RN 100 --
Pt87Rh Positive RP 87 13
Pt70Rh Positive BP 70 30
Pt94Rh Negative BN 94 6
Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )


Working temperature range of thermocouple wire
Dia. /mm Type Long time working temp./ ºC Short time working temp. / ºC
0.5 S 1300 1600
0.5 R 1300 1600
0.5 B 1600 1700
Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )

Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )

Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )

Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )

Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )

Diameter 0.5mm Platinum Rhodium 10% Thermocouple Wire ( Type SP/SN )
